Yaesu G-800DXA
MPN: G-800DXA
$770.00

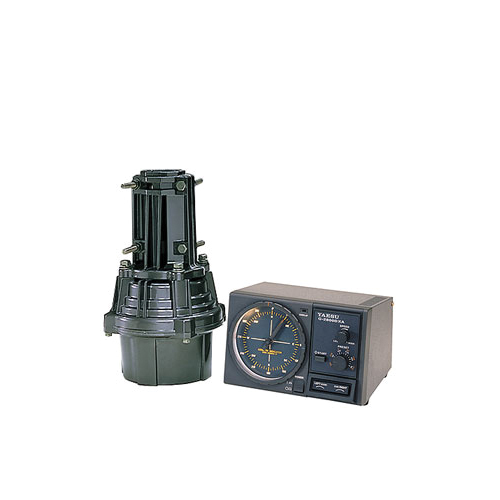

Yaesu G-800DXA Medium Duty Rotator
In stock
Medium Duty Rotator, 20 sq. ft with 450 Degrees of Rotation with Presets
The Yaesu G-800DXA is a medium duty antenna rotator featuring automatic brake release, 450° rotation, overlap indicator, preset control, variable speed control, slow start/stop, and more. The illuminated control box has 360 degree readout, with moveable beam heading template. Supplied with weather-proof motor connector and quick-connect control plug for quick and trouble-free connection.
| Weight | 15.6 lbs |
|---|---|
| Dimensions | 8.75 × 10.5 × 13.25 in |
| Brand | Yaesu |
Product Specification
Specifications |
|
|
Power Supply Voltage
|
117 VAC, 50-60 Hz
|
|
Power Supply Current Consumption
|
1.0 A
|
|
Rotor Voltage
|
11-24 VDC
|
|
Cable Conductors Required
|
6
|
|
360° Rotation Time (Non Loaded)
|
100 ± 10 sec to 40 ± 5 sec (Variable)
|
|
Rotation Range
|
450° ± 3°
|
|
Rotation Torque
|
600 to 1,100 kgf-cm
|
|
Braking Torque
|
4,000 kgf-cm
|
|
Maximum Vertical Load
|
200 kg or less (continuous)
800 kg (momentary) |
|
Mast Outside Diameter
|
1.5 to 2.5 inches (38 to 63 mm)
|
|
Braking Type
|
Mechanical and Electrical stoppers
|
|
Antenna K Coefficient
|
180 or less
|
|
Wind Loading Area: (Pole Type)
|
0.75 m2
|
|
(Tower Type)
|
2.0 m2
|
|
Maximum Continuous Duty
|
3 minutes
|
|
Operating Temperature Range
|
0°C to +40°C (Controller)
-20°C to +40°C (Rotator) |
|
Rotator Dimension
|
7.5 inches diameter 12.5 inches high (186 x 300 mm)
|
|
Rotator Weight
|
Approx. 7.7 Lbs. (3.6 kg)
|
|
Controller Dimension (WHD)
|
200 x 130 x 193 mm
|
|
Controller Weight
|
Approx. 2.8 kg
|
