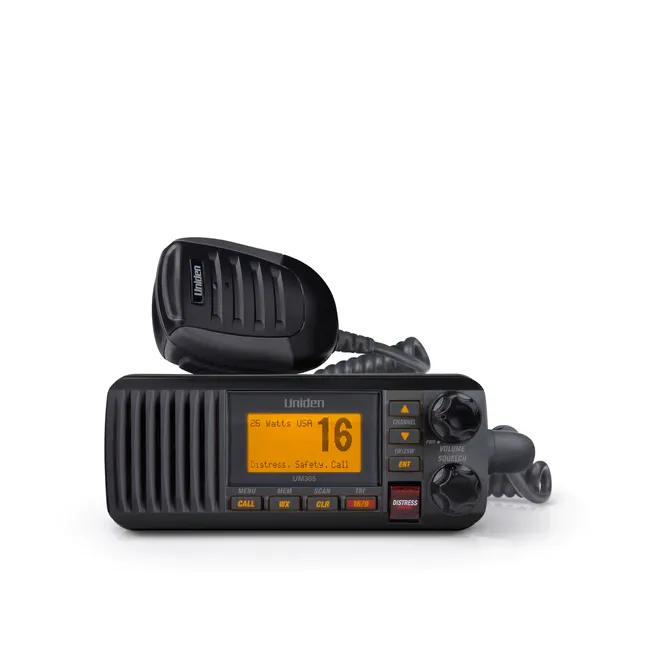

Uniden UM385BK front view

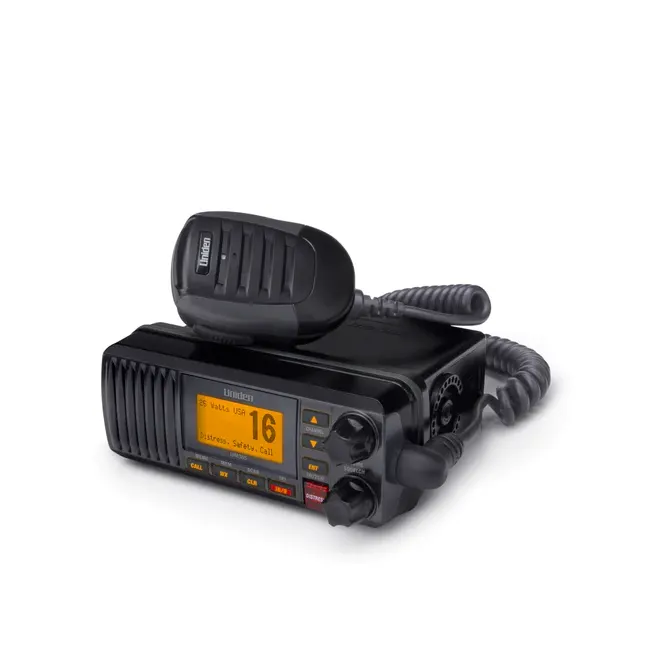

Uniden UM385BK angled top view
Uniden UM385BK
Uniden UM385BK front view
Uniden UM385BK angled top view

Uniden UM385BK 25 Watt Fixed Mount Marine Radio with DSC

MPN: UM385BK

$249.00

Uniden 25 Watt Fixed Mount Marine Radio with DSC (Black) includes features such as IPX4 waterproof rating, SAME technology, and backlit panel.

Out of Stock (On Order)

Get notified when this product is back in stock

SKU: UNI-UM385B Categories: ,

You’ve never been safer at sea with the UM385BK. Knowing when to turn back can be as valuable as being able to call for help. Uniden’s Marine Radios protect you from what lies ahead, as well as getting you out of dicey waters, by informing you the moment a storm starts brewing and transmitting your location should you need help. With triple watch features, DSC capabilities, a range of international marine channels and S.A.M.E Weather Alert—the UM385BK brings everything you’ll need on the water into one compact design.

Uniden UM385BK Features:

  • Waterproof Radio – Complies with IPX4 waterproof standards, which means the radio is resistant to damage from rain or splashing water.
  • Large, dot matrix display
  • Advanced DSC Class D functions, including Test Calling
  • Channel select buttons on the microphone
  • Memory scan mode – Lets you save channels to memory and monitor them in quick succession.
  • Transmitter Power Level Select – Lets you boost the transmitter power from 1 watt to 25 watts for added transmission distance.
  • Battery level display and tone – Sounds an alert tone if the battery voltage goes too high or too low.
  • Triple Watch Operation – Checks the Coast Guard Distress/Hailing channels 16 and 9 in the background.
  • All USA/International/Canadian Marine Channels, including the new 4-digit, and the Canadian “B” Channels
  • National Oceanic and Atmospheric Administration (NOAA) weather channel watch – Sounds a warning tone when a hazard alert is issued for your area
Weight 3.65 lbs
Dimensions 10.5 × 8.4 × 3.8 in
Brand

Uniden
Manufacturer Part Number UM385BK

Specifications

Uniden UM385BK Specs:

General

  • Controls: Volume-Pwr, Squelch
  • Status Indicators: Transmit power, Scan mode, Triple Watch mode, Battery High, Battery low, USA, CAN, INT, Alert, Memory, GPS, Message, Weather band, GPS status and Channel Display
  • Display: LCD (Full Dot Matrix)
  • Buttons: ENT-1W/25W, Channel UP, Channel DOWN, CALL-MENU, WX-MEM, CLR-SCAN, 16/9-TRI, and DISTRESS
  • Size: H 2.62 inches x W 6.4 inches x L 5.12 inches (without Heat Sink); H 66.6 mm x W 162.6 mm x L 130.1 mm (without Heat Sink)
  • Weight: 1.0 kg (2.2 pounds)
  • Supply Voltage: Nominal 13.8V DC, negative ground (10.5 VDC to 16.0 VDC)
  • Antenna Impedance: 50 Ω nominal
  • Microphone Rugged: 2 kΩ condenser mic element with coiled cord
  • Speaker: 1.77 inch, 8 Ω
  • Operating Temperature Range: –4 °F to +122 °F (–20 °C to + 50 °C)
  • Shock and Vibration: Meets or exceeds EIA standards, RS152B and RS204C
  • FCC Approvals: Type accepted under part 80 of the Rules; meets Great Lakes Agreement and party boat requirements

Transmitter

  • Power Output: 1 watt or 25 watt (user selectable)
  • Power Requirement: 25 watts output: [email protected] DC
  • Modulation: ±5 kHz deviation
  • Hum and Noise Signal-to-Noise: 45 dB@1 kHz with 3 kHz deviation with 1000 Hz modulating frequency (nominal)
  • Audio Distortion: Less than 8% with 3 kHz deviation with 1000 Hz modulating frequency
  • Spurious Suppression: –40 dBm @ Hi, –40dBm @ Lo
  • Output Power Stabilization: Built-in automatic level control (ALC)
  • Frequency Range: 156 to 163 MHz
  • Frequency Stability: ±10 ppm @ –20°C to + 50°C

Receiver

  • Frequency Range 156 to 163 MHz

General

  • Sensitivity: 0.25 ÎĽV for 12 dB SINAD (nominal)
  • Circuit: Dual Conversion Super Heterodyne PLL (Crystal for DSC)
  • Squelch Sensitivity: 0.2 ÎĽV Threshold
  • Spurious Response: 75 dB (nominal)
  • Adjacent Channel Selectivity: 75 dB @ ±25 kHz (nominal)
  • Audio Output Power: 2.5 watts (10% Distortion, 8 Ω load)
  • Power Requirement: 360 mA @ 13.8V DC at squelched, 920 mA @ 13.8V DC at maximum audio output
  • IF Frequencies: 1st 41.925 MHz, 2nd 455 kHz (1st 21.7 MHz, 2nd 455 kHz for DSC

NOTE: This radio does not support AIS channels

Package Includes

In the Box:

  • Uniden UM385BK VHF Marine Radio in Black
  • PTT Microphone
  • Mounting hardware
  • Microphone mounting hardware
  • DC Power Cable
  • Accessory Cable

Product Guides & Documentation

Uniden UM385BK Owner’s Manual (pdf)
