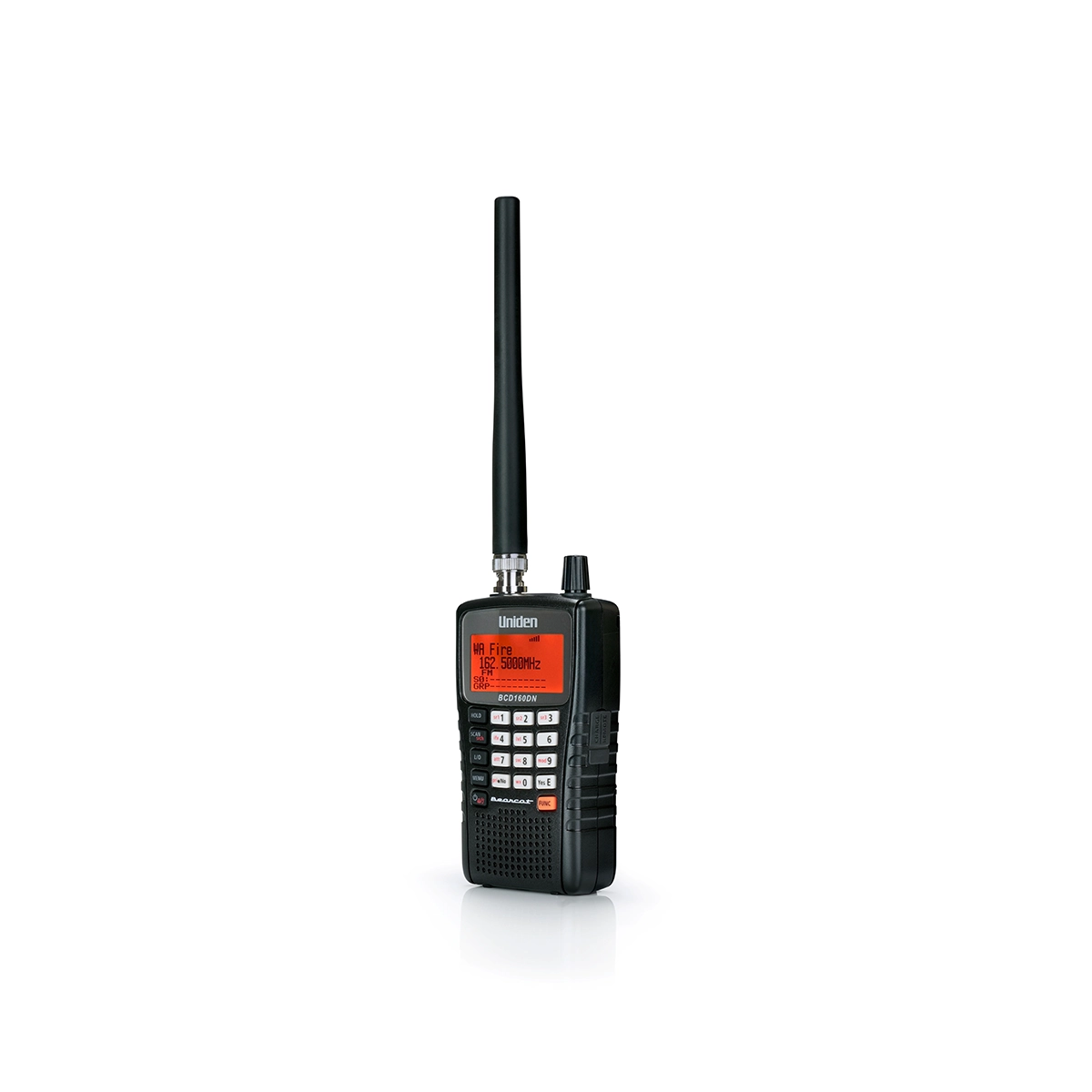

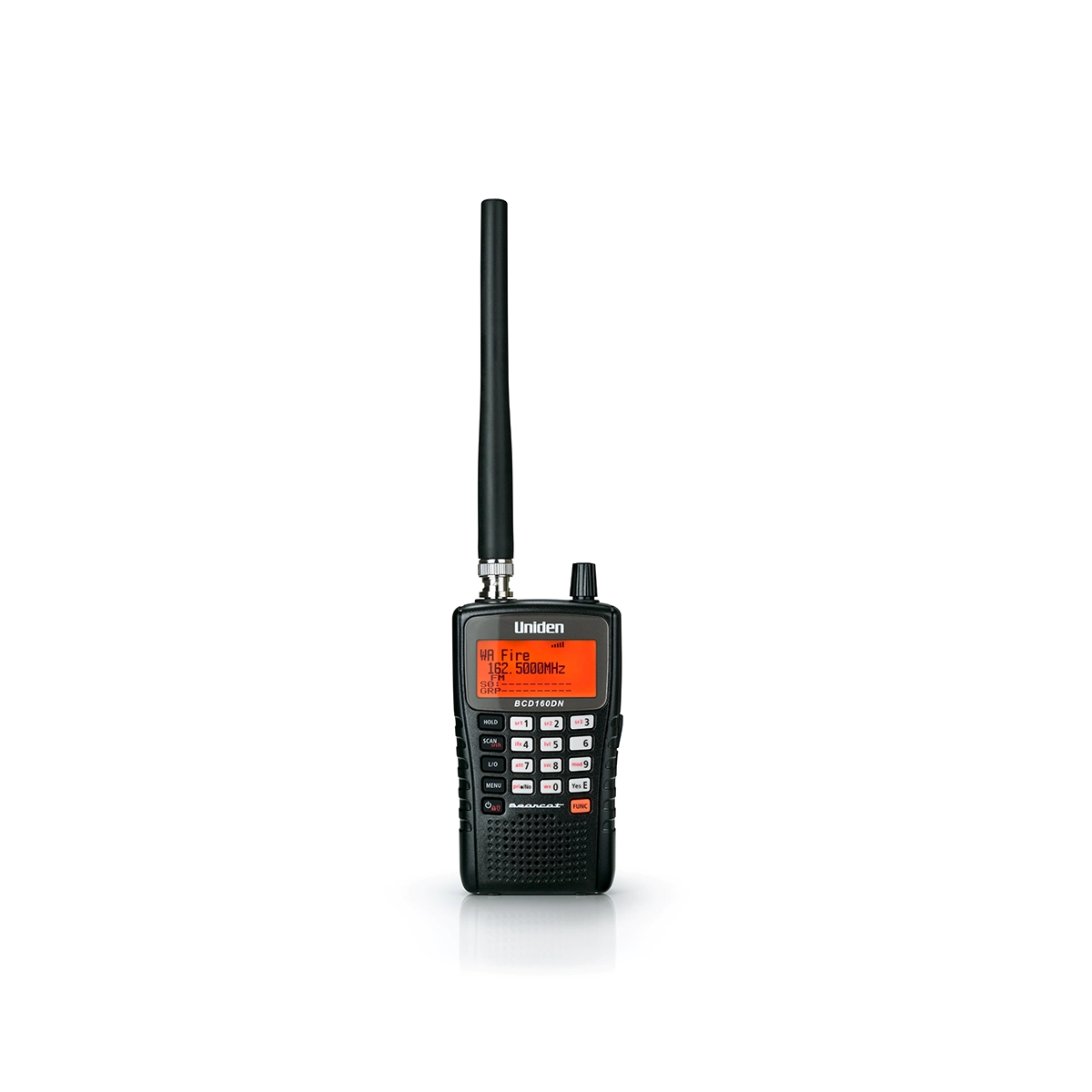

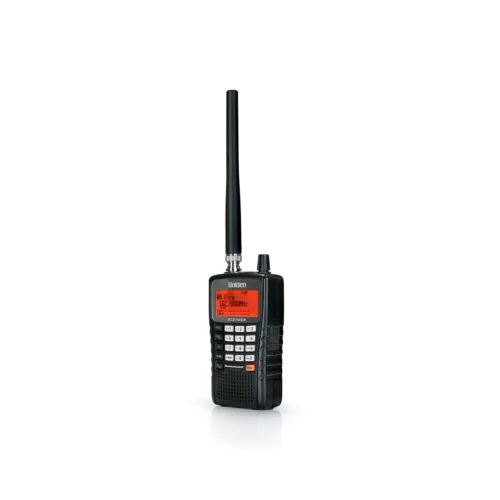

The Uniden BCD160DN sets the standard for performance, features, and innovation. Exclusive features like Band Scope Rapid System/Channel Number Tagging, Narrow-band Reception, and a complete suite of search features help you detect those elusive signals faster than ever. Uniden Digital Scanners offer you more than ever before.
DCS/CTCSS DIGITAL CODE RAPID DECODE
Instantly detects and displays the sub audible tone or digital code so you can quickly determine the system settings.
PRELOADED DMR/NXDN*
The scanner comes preloaded with DMR and NXDN so you can start using your scanner as soon as you take it out of the box.
QUICK SEARCH
Allows you to start searching at the displayed frequency or enter a frequency and start searching.
PC PROGRAMMING
Use the free Uniden software BCDX60DN SS and BC VUP to manage your scanner’s Profiles, Favorites Lists, Databases, and firmware updates.
1000 ALPHA-TAGGED CHANNELS
Alpha Tagging lets you assign names to your channels so you can keep track of who you are listening to. Organize your channels by department, location, area of interest, or any other way you prefer.
COVERAGE FREQUENCIES
25-512MHz, 758-824MHz, 849-869MHz, 894-960MHz.
*Trunking and other digital modes, including APCO P25 are not supported. For these digital radio systems monitoring, please check out Uniden models SDS100, SDS200, BCD436HP, BCD536HP, BCD996P2, BCD325P2, or the HomePatrol-2.
| Weight | 1.2 lbs |
|---|---|
| Dimensions | 4.5 × 3 × 7.5 in |
| Brand | Uniden |
| Manufacturer Part Number | BCD160DN |
Specifications
Uniden BCD160DN Specs
- Band Coverage: 30 Bands
- Size: 2.64 in (W) x 1.29 in (D) x 4.532 in (H) (without antenna, knob, clip, and other projections)
67 mm (W) x 32.7 mm (D) x 115 mm (H) (without antenna, knob, clip, and other projections) - Weight: 6.2 oz. (175 g.) (Without antenna and batteries)
- Operating Temperature: Nominal: – 4º F (– 20º C) to + 140º F (+ 60º C )
- Charging Operating Temperature: + 50º F (+ 10º C) to + 104º F (+ 40º C )
- Storage Temperature: – 22º F (– 30º C) to + 158º F (+ 70º C )
- Power Requirements:
- 2 x AA size rechargeable Ni-MH batteries (2300mAh – Included)
- 2 x AA size Alkaline batteries (not Included)
- DC 5.0V ± 5% Connect to PC with mini USB cable (included)
- LCD Display: 64 x 128 Full Dot Matrix LCD with orange backlight
- Internal Speaker: 24 ohm, 0.8W Max.
- Certified in accordance with FCC Rules and Regulations Part 15 Sub-part C as of date of manufacture.
- Weather Channels: 7 Channels
- Audio Output Power:
- At 24Ω internal speaker
218mW nominal for NFM bands
245mW nominal for FMB, WFM bands
240mW nominal for AM bands - At 32Ω stereo headphone Jack
12mW nominal for FM, NFM Bands
22mW nominal for FMB
20mW nominal for WFM Bands
18mW nominal for AM Bands
- At 24Ω internal speaker

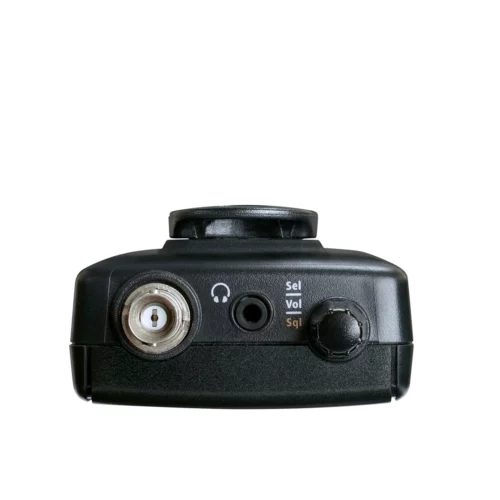

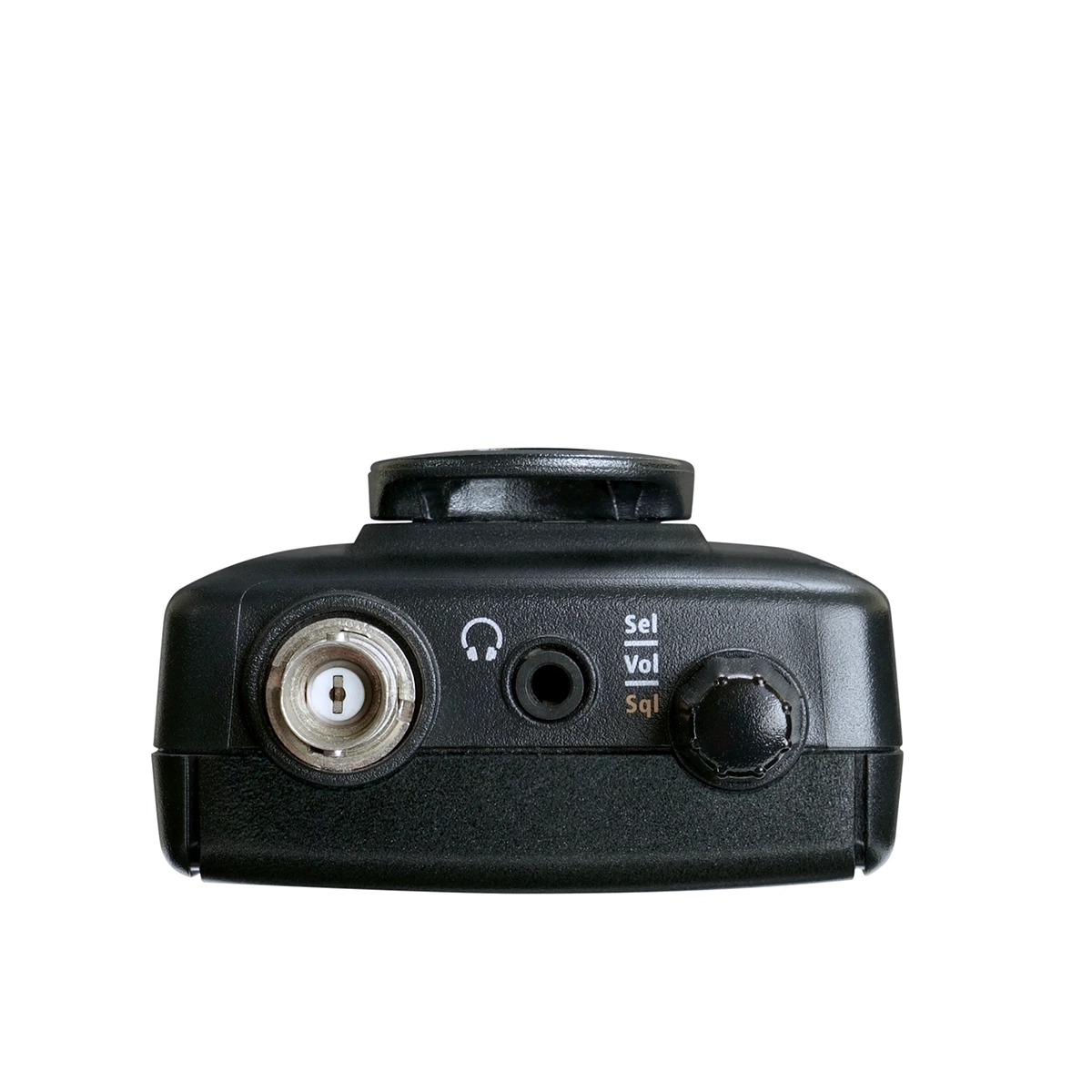

- External Jacks: Antenna Jack: BNC Type
- Phone Jack: 3.5Ø (Stereo Type) NOTE: Audio does not play in stereo.
- USB Jack: 5-pin mini USB B Type
- Antenna: 50 ohms

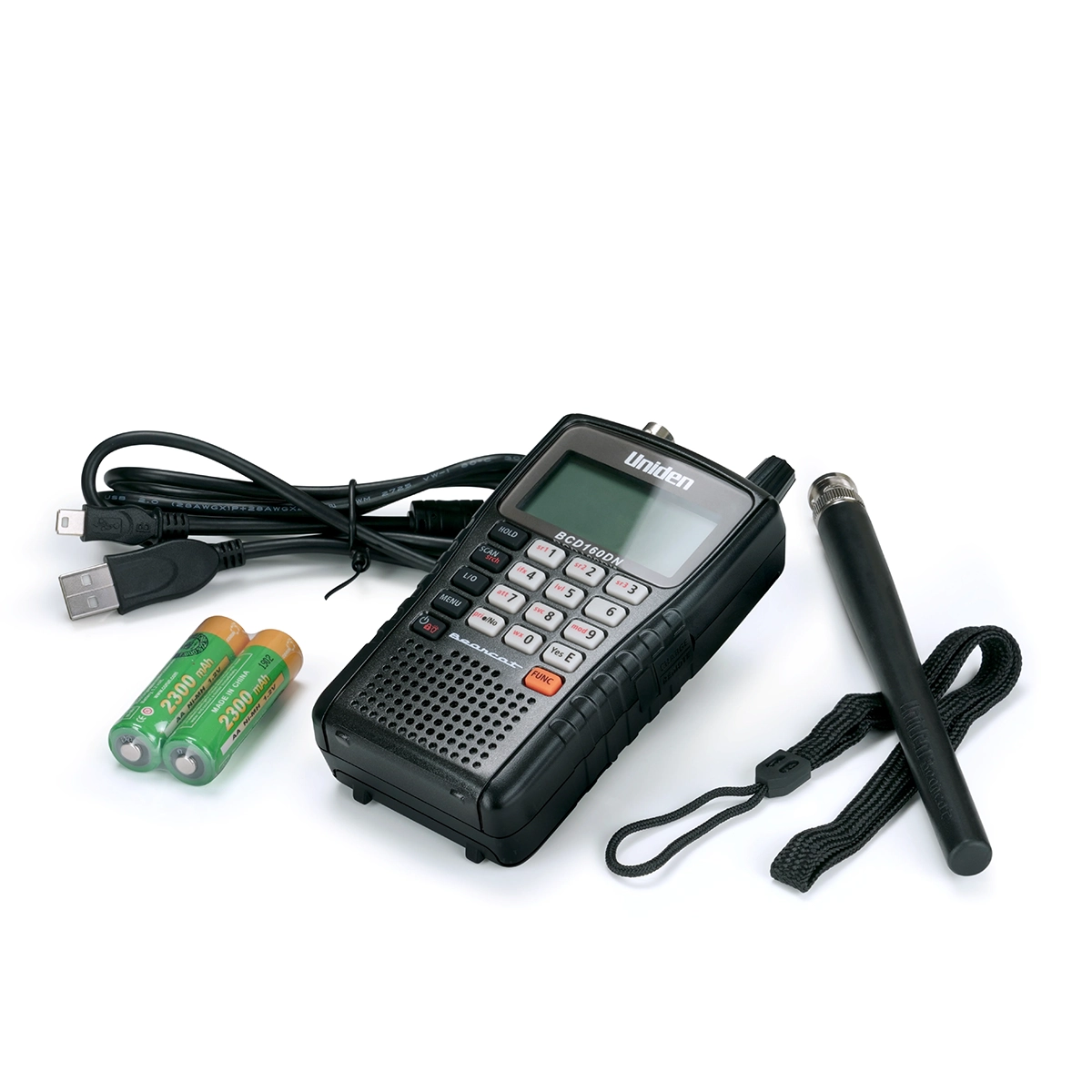

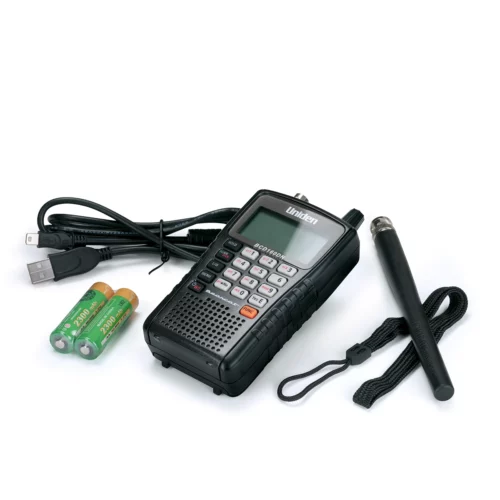

Package Includes
In the Box:
- BCD160DN Scanner
- Antenna
- Mini USB Cable
- Wrist Strap
- Rechargeable AA NiMH Batteries x 2

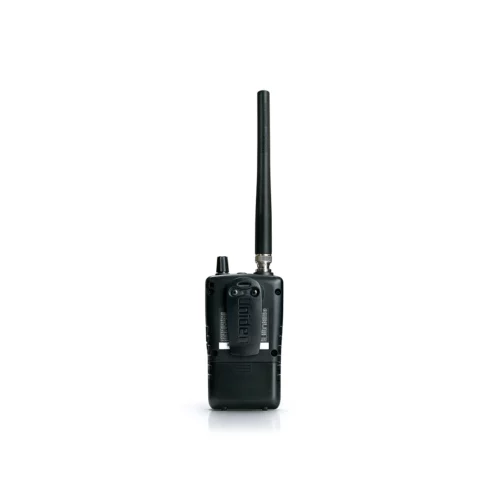

- Belt Clip (attached)
- Owner’s Manual
- FREQ form
- APP form
