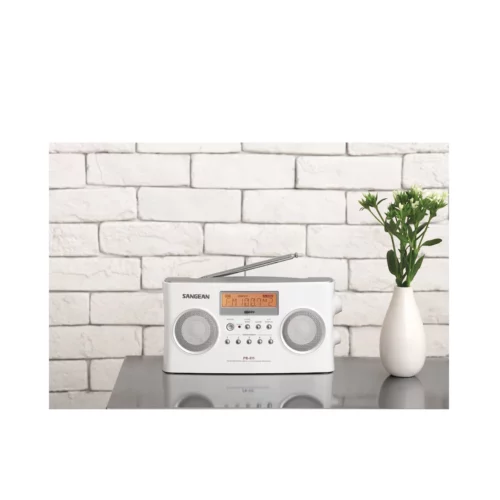

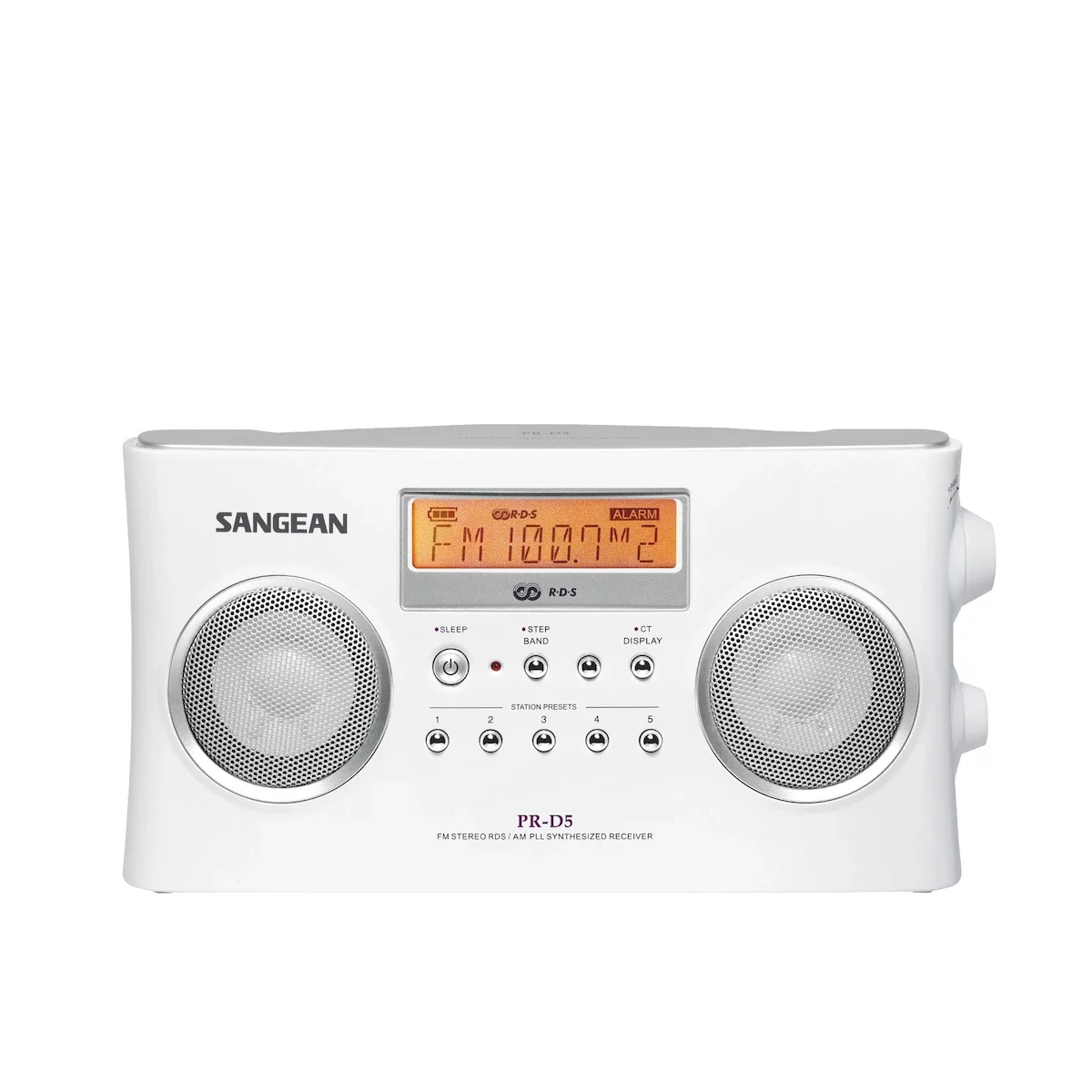

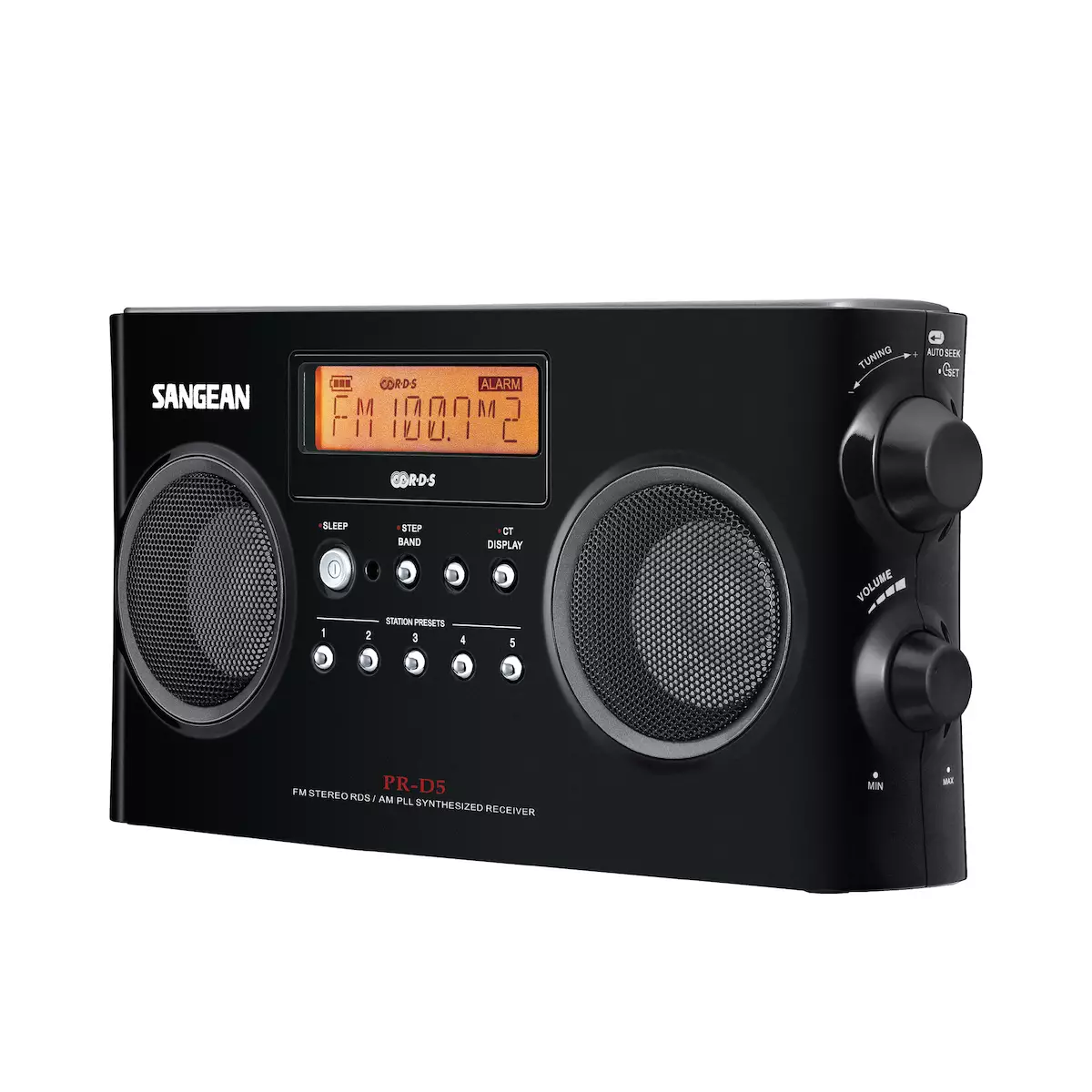

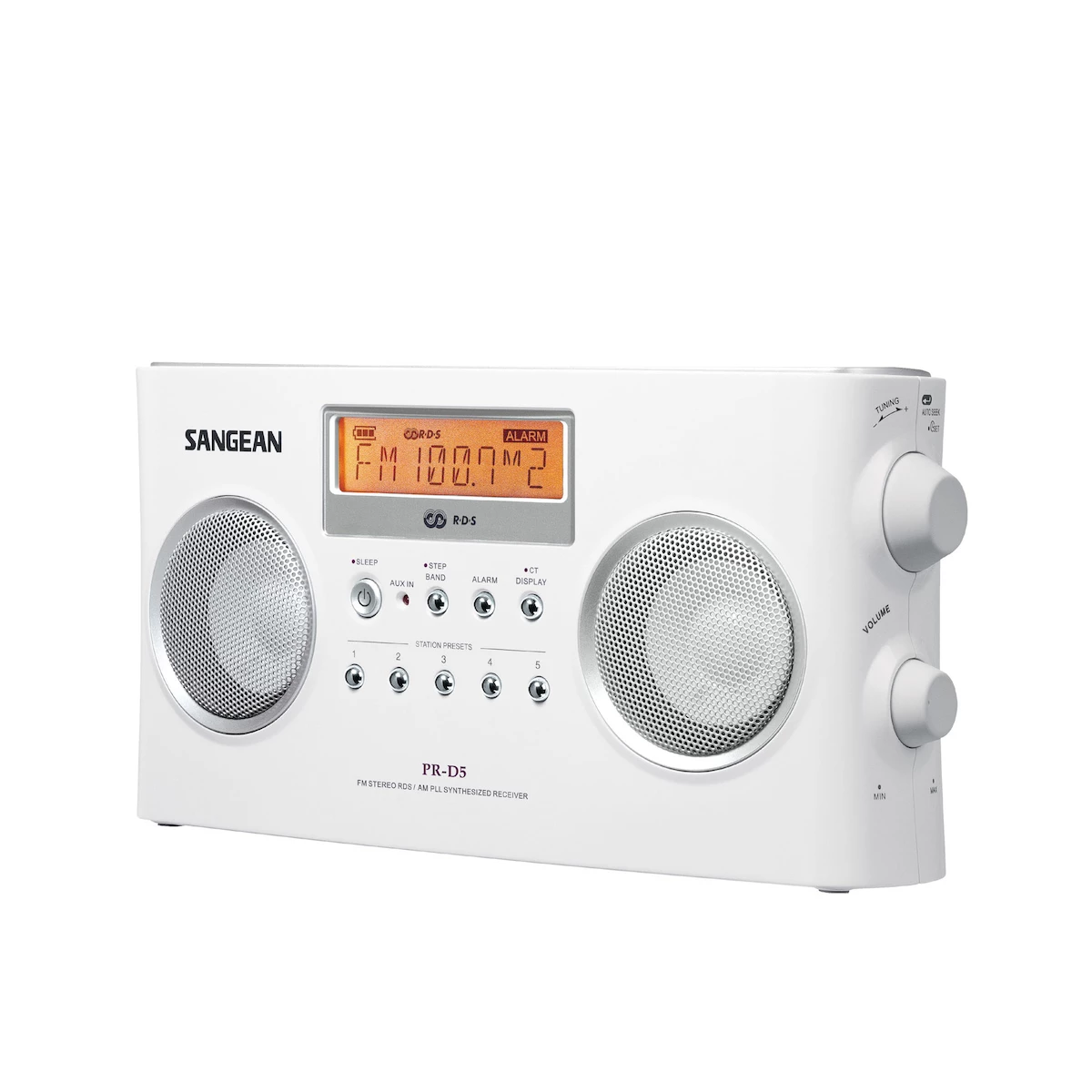

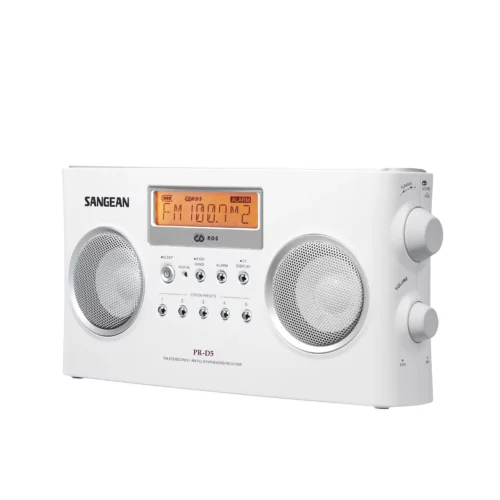

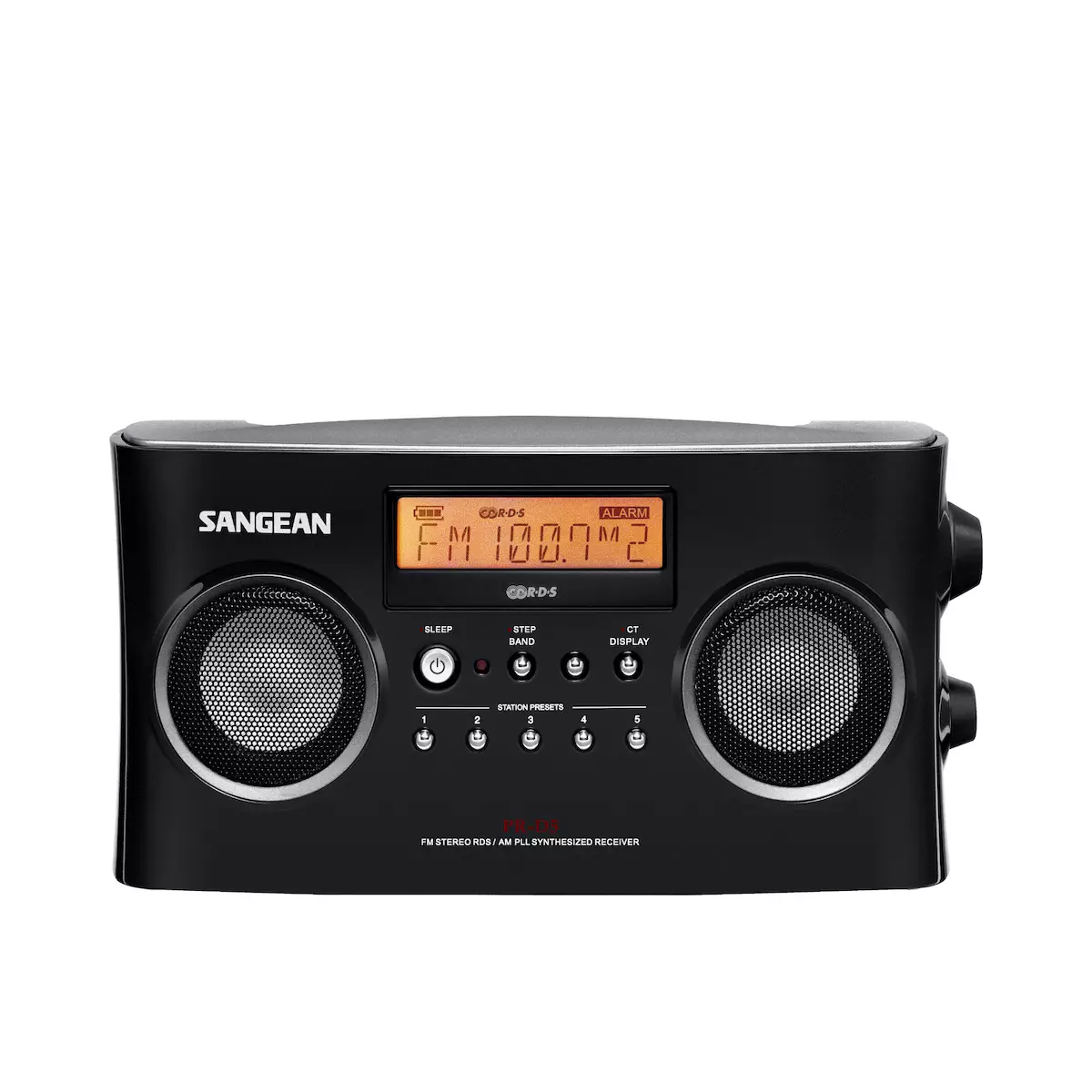

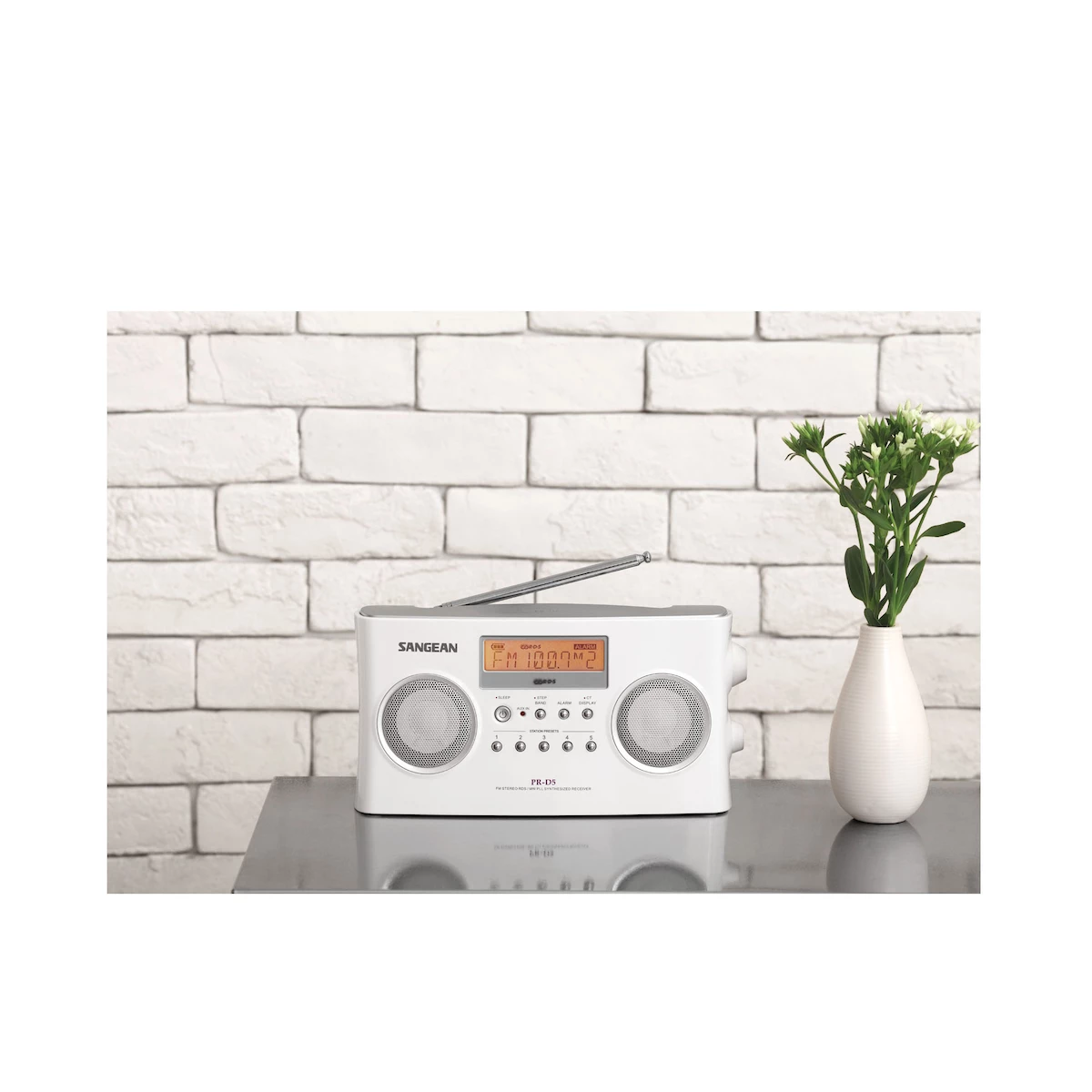

FM-Stereo RBDS / AM Digital Tuning Portable Receiver
Features include:
- 200mm Ferrite AM Antenna Bar to Allow Best AM Reception
- 10 Memory Preset Stations (5 FM, 5 AM)
- Easy to Read LCD Display with Backlight
- PLL Synthesized Tuning System
- Excellent Reception and Stereo Audio Performancev
- Selectable Stereo / Mono Switch
- Auto Seek Station
- Alarm by Radio or HWS (Humane Wake System) Buzzer
- Sleep Timer
- Battery Power Indicator
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Manufacturer Part Number |
Product Video
Product Specifications
Production Specifications:
| TUNING | Type | PLL synthesized | |
| Â | Memory Presets | 10 | |
| Â | Rotary Tuning | V | |
| DISPLAY | LCD / VFD / Dial Scale | LCD | |
| Â | View Area (mm / inch) | 80 x 21 / 3.15 x 0.83 | |
| Â | Graphic / Character Type | Segment | |
| Â | Back Light | V | |
| FEATURE | Stereo | Earphones | |
| TUNER | FM | Frequency (MHz) | 87.5 – 108 |
| Â | RDS / RBDS | PS / RT / CT | |
| Â | AM / MW | Frequency (kHz) | 522 – 1629 (9k) / 520 – 1710 (10k) |
| Â | Adjustable Tuning Step | V | |
| MEDIA | Aux – in | V | |
| CLOCK | Real Time | V | |
| Â | Radio Alarm | V | |
| Â | Buzzer Alarm | HWS | |
| Â | Sleep | V | |
|  | Radio Control | FM RDS??BDS??- CT | |
| OUTPUT DEVICES | Speaker | Size ( mm / inch ) | 2 1/2 inches |
| Â | Impedance | 8 ohms | |
| OUTPUT POWER (TYPICAL) | AC / DC / AC to AC in (Speaker) | 1W + 1W (DC – IN) | |
| Â | Batteries (Speaker) | 1W + 1W | |
| Â | Earphones | 3 + 3 mW | |
| POWER SUPPLY | DC in | 9V DC 500mA | |
| Â | Batteries (Main Power) | 6 x 1.5V (UM – 2) | |
| I/O SOCKET | DC in | V | |
| Â | Earphones | V | |
| Â | Aux – in | V | |
| DIMENSIONS | Width (mm/inch) | 260 / 10.24 | |
| Â | Height (mm/inch) | 136 / 5.35 | |
| Â | Depth (mm/inch) | 63 / 2.48 | |
| Â | Weight (g & lb. oz) | 1010 / 2lb. 3.6oz |
