RAP-299-3-UN10U: RAM X-Grip Large Phone Mount with RAM-A-CAN II Cup Holder Base
$96.95
In stock

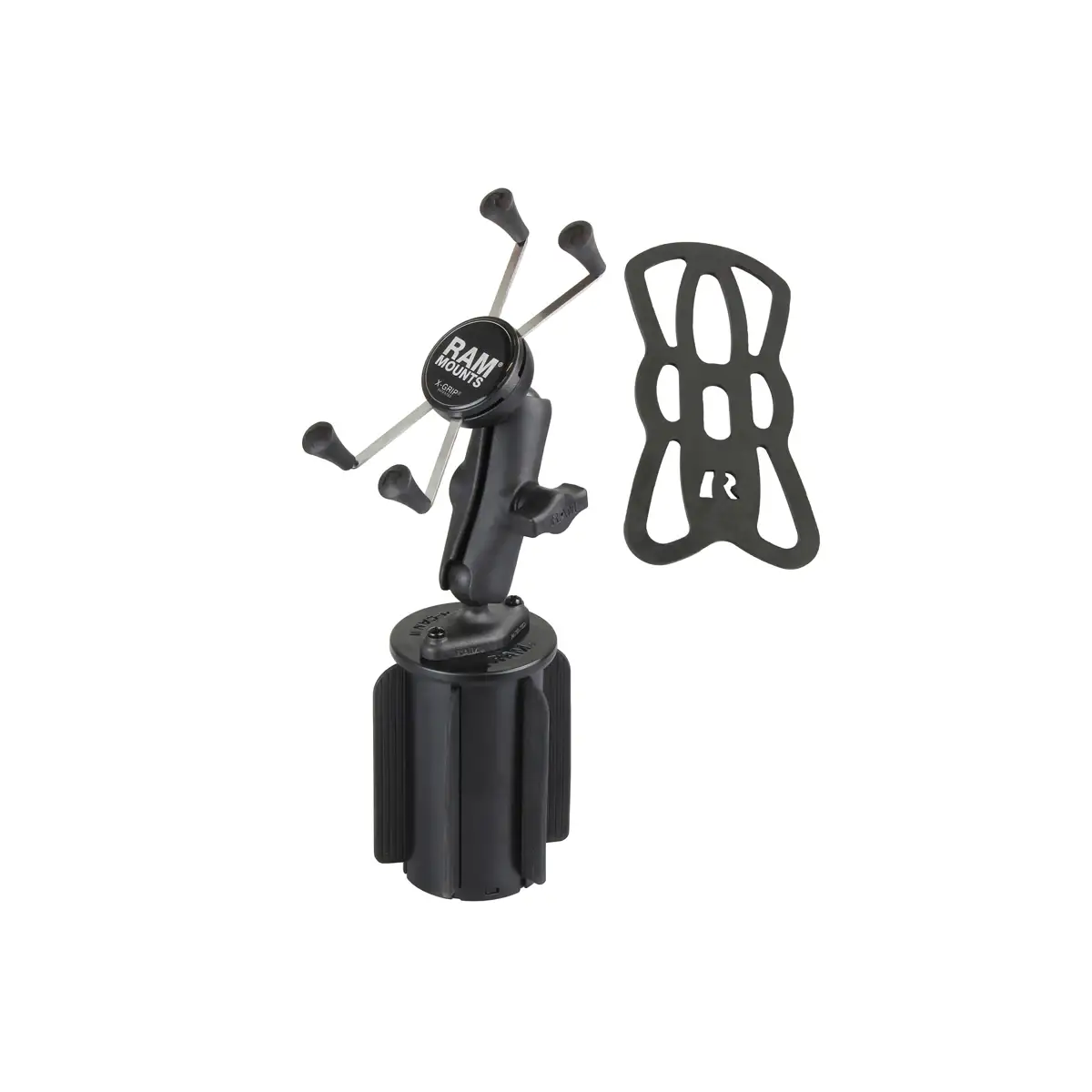

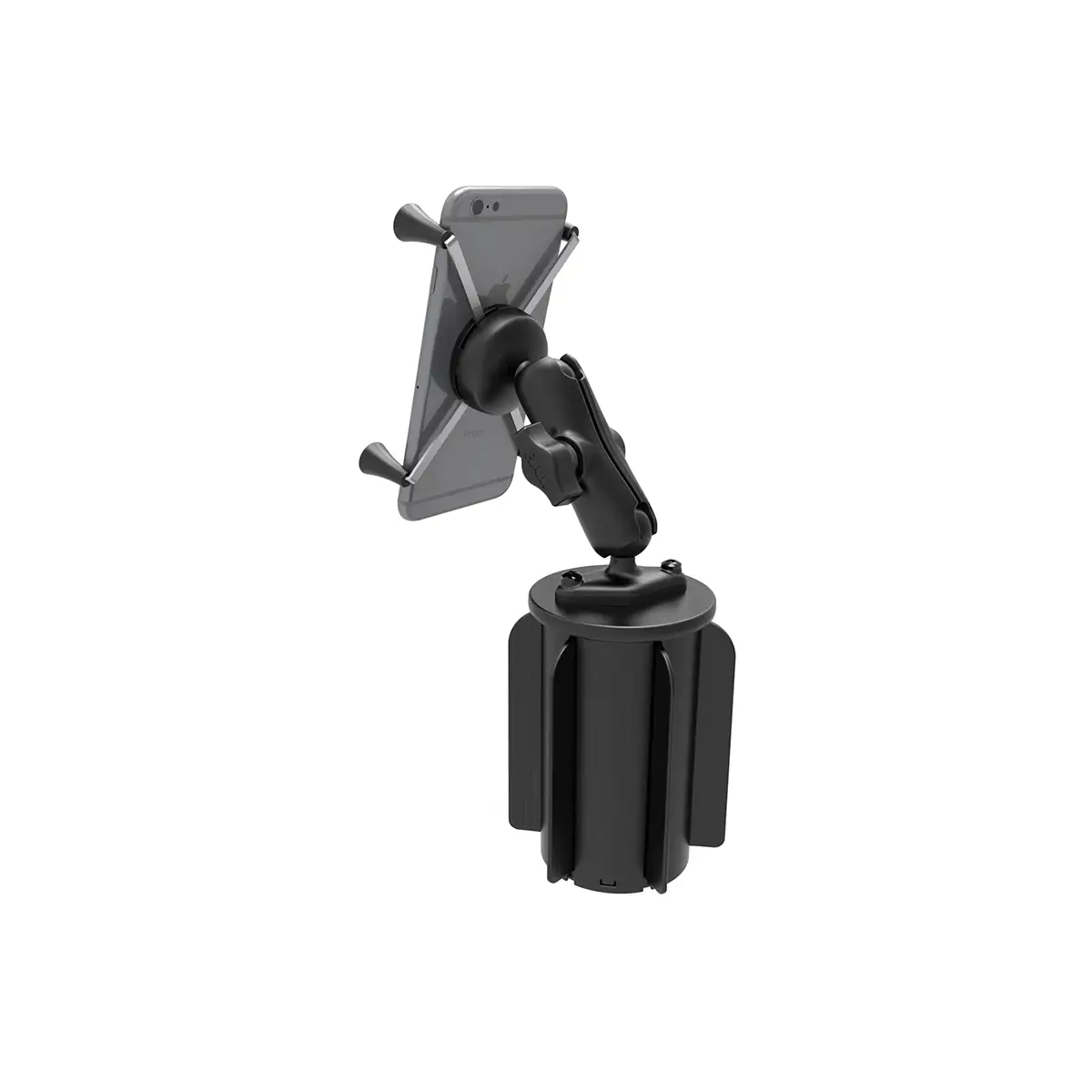

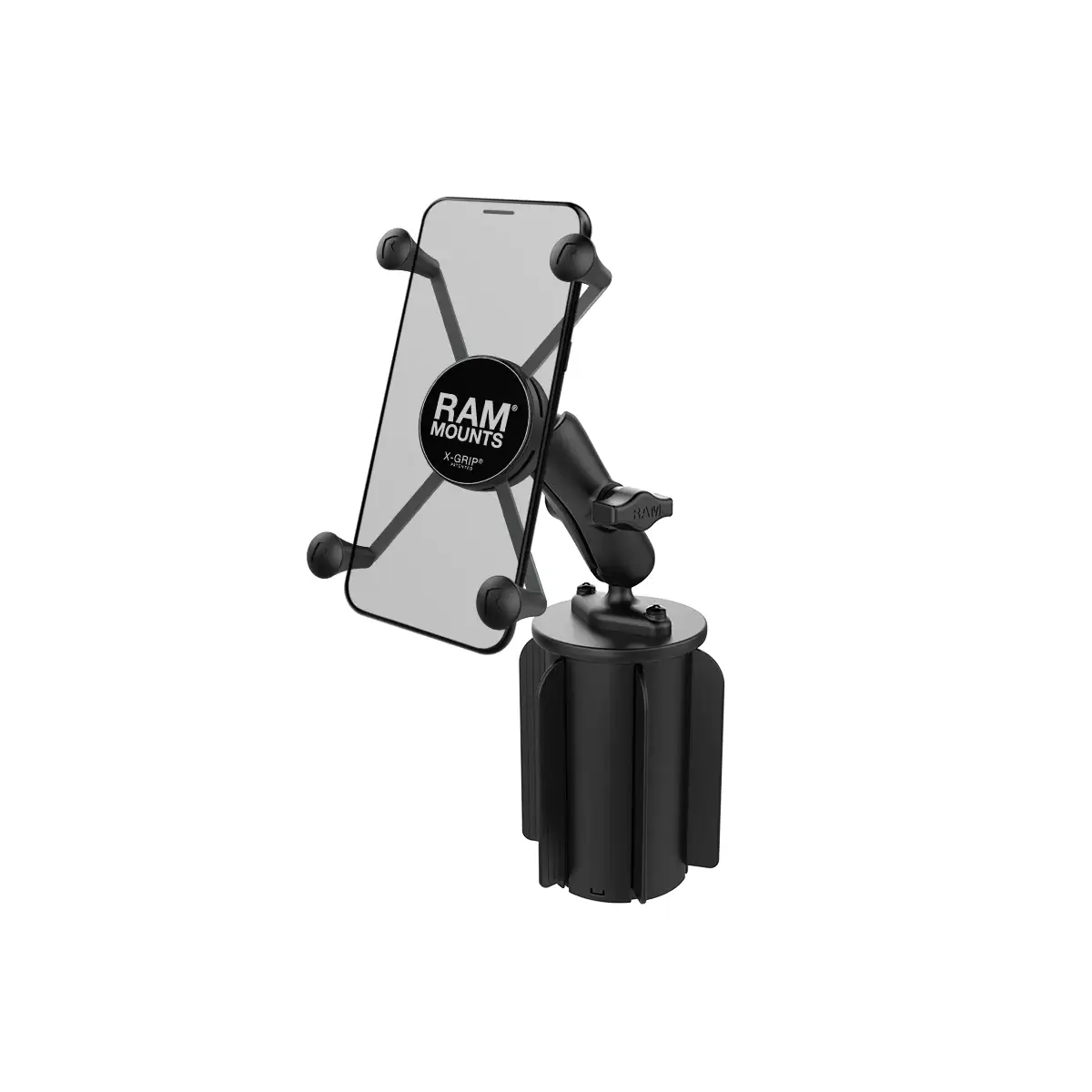

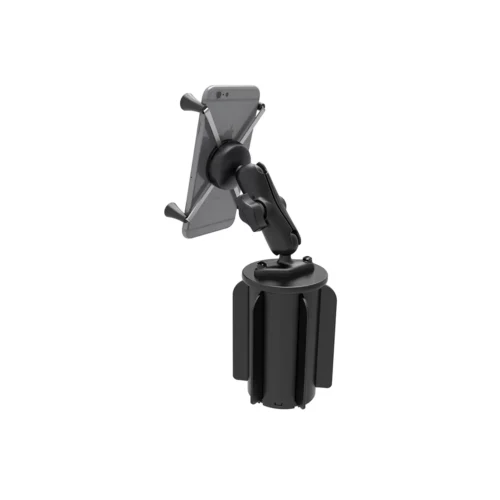

The RAP-299-3-UN10U consists of the RAM-A-CAN cup holder base, double socket system and universal spring loaded X-Grip cradle for large phones and phablets. Included are support fins that flex, making the cup holder base conform to most vehicle cup holders. The mount is designed with a RAM B size 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your phone or phablet. The X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
Components
Hardware Included
- Assembly Hardware
- (1) Optional Tether
- (1) Glue Tube for Rubber Caps
Product Dimensions
- Overall Height: 10.8″
Holder Dimensions
- Width Range: 1.75″ – 4.5″
- Depth Range: .875″ max
Wedge Dimensions
- Fits cup holders between 2.57″ – 3.5″ inside diameter
Socket to Socket Length
- 3″
Ball Size
- B Size (1″)
Weight Capacity
- Standard Use: 2 lbs
- Heavy-Duty Use: 1 lb
Materials
- High strength composite
- Stainless steel
Weight
- 1.65 lb
Additional Information
Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.
| Weight | 1.71 lbs |
|---|---|
| Dimensions | 6.5 × 6.5 × 3 in |
| Brand | RAM Mounts |
| Manufacturer Part Number | RAP-299-3-UN10U |
