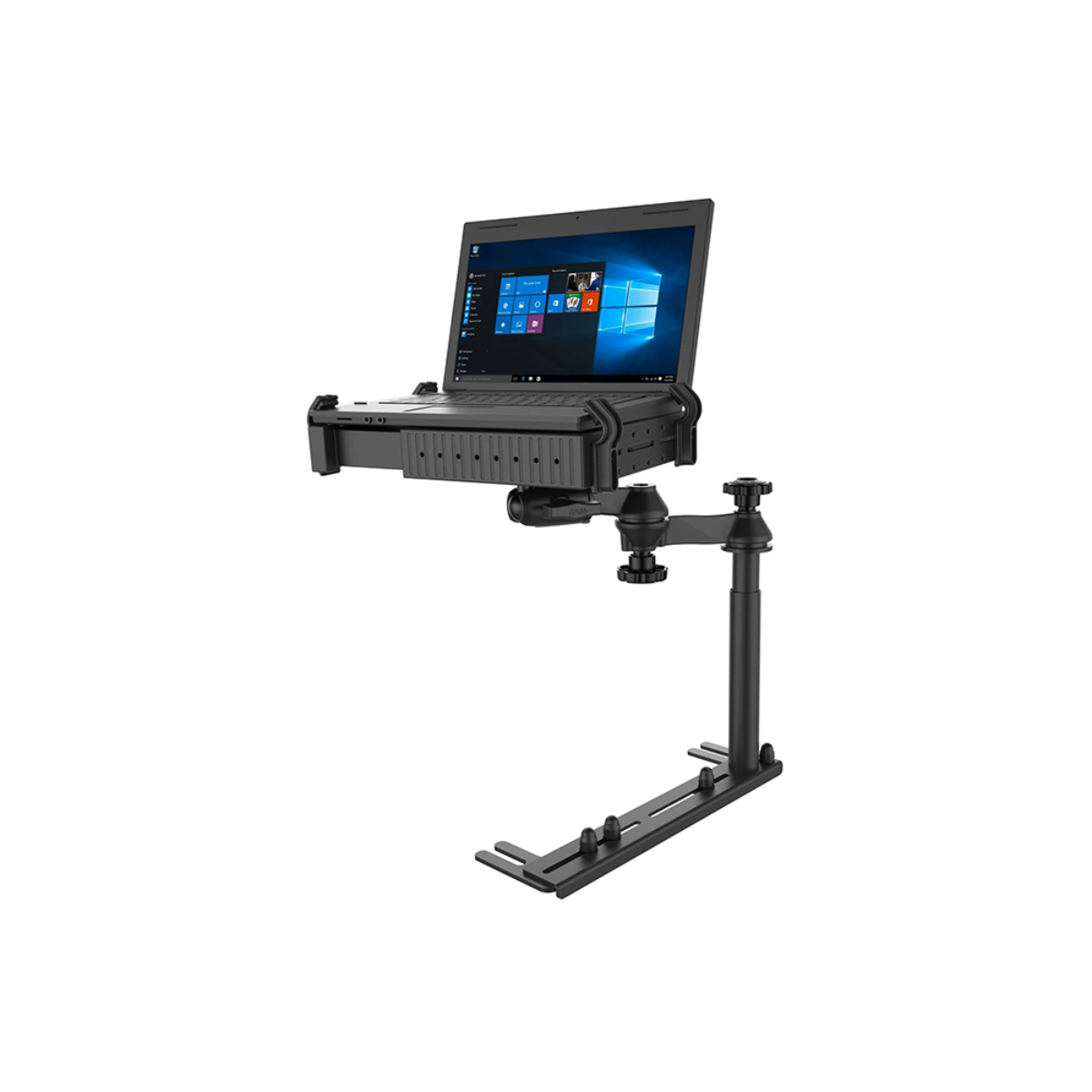

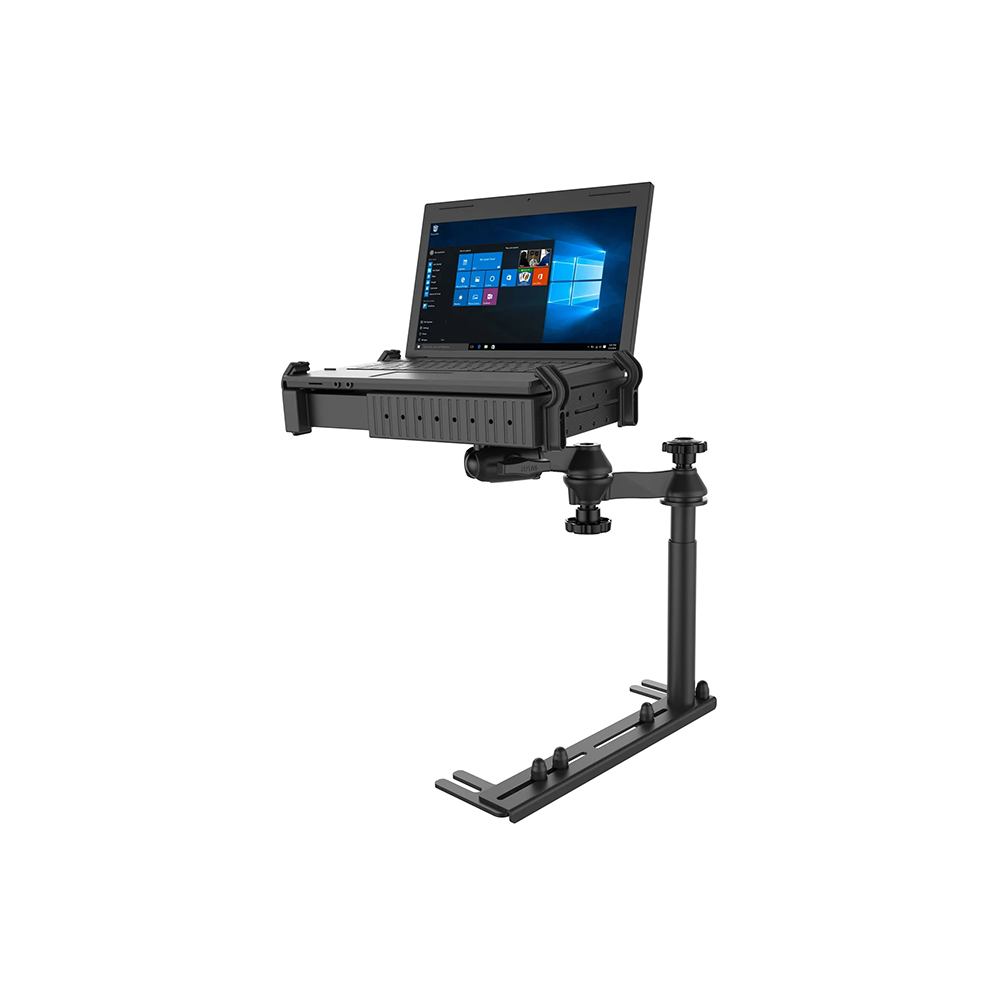

RAM-VB-196-SW1: RAM No-Drill Universal Laptop Mount
$377.95
Out of Stock (On Order)

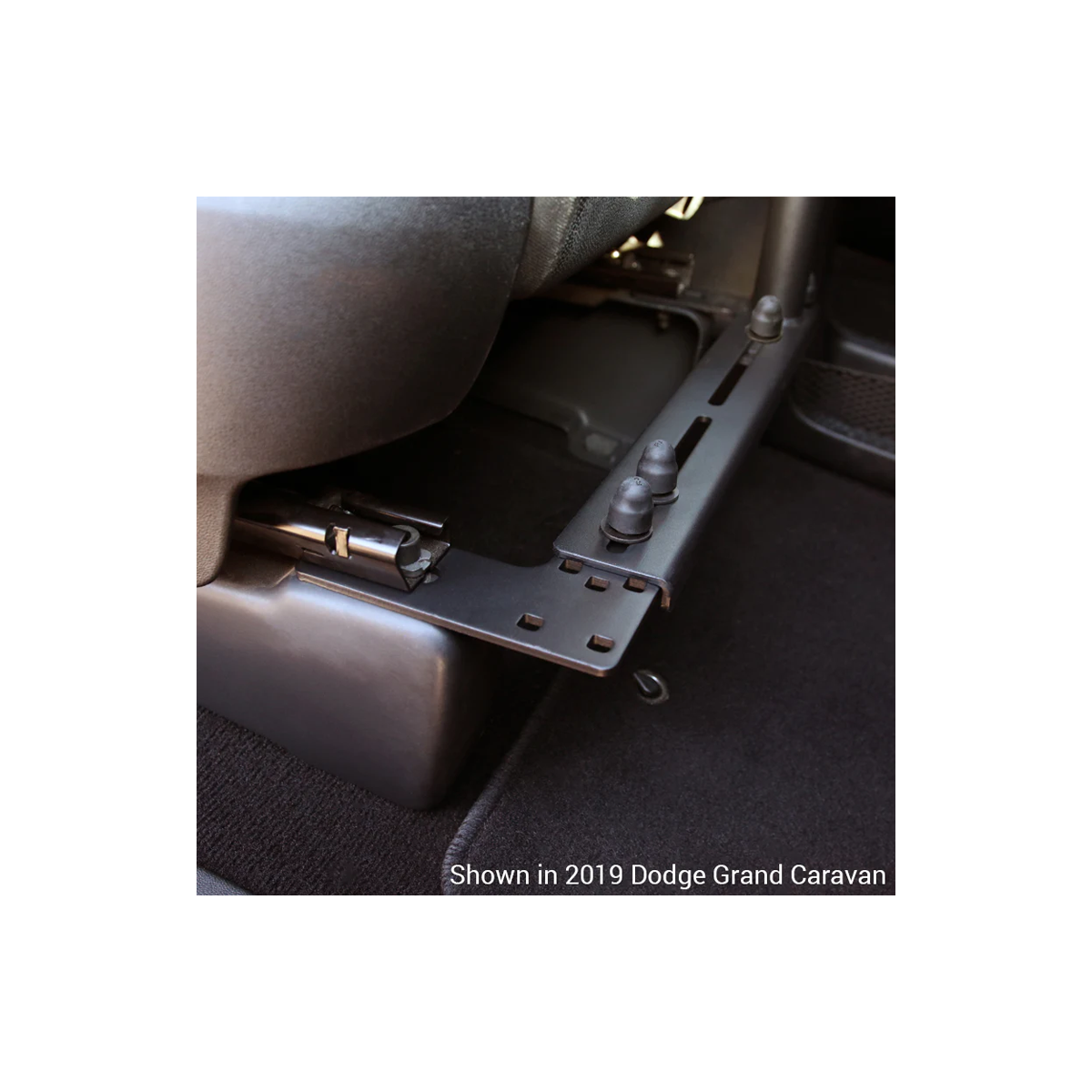

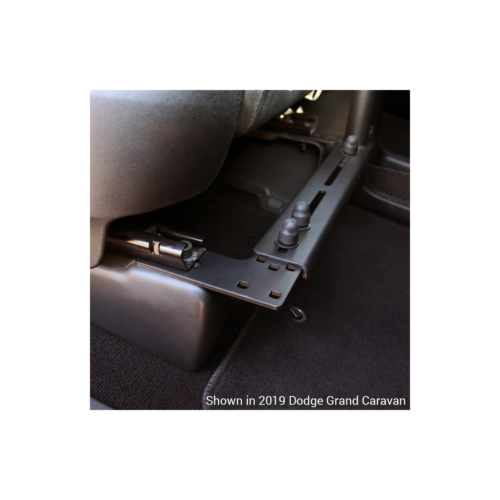

The RAM® Universal No-Drill™ Laptop features a heavy-duty steel mounting base designed to fit a variety of vehicles. Using the front bench or passenger side seat rail bolts as attachment points, existing hardware is used to secure the laptop mount base in the vehicle. The included RAM Tough-Tray™ is spring loaded to accommodate 10″ to 17″ laptops. The tray features four adjustable retaining arms with rubber grips. These arms can be moved both vertically and horizontally, enabling a custom fit for varying thicknesses of laptops and access to ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support phones or other electronics.
RAM-VB-196-SW1 Features:
- Custom, RAM® No-Drill™ mounting base offers lowest profile in the industry
- Universal adjustable base accommodates a wide range of vehicles (see Additional Information)
- Patented ball and socket mounting system offers shock and vibration damping
- Dual articulating swing arm offers the simplest and most comfortable adjustment points in the industry
- Backed by a lifetime warranty
HARDWARE INCLUDED
- Assembly Hardware
- Stabilizer Foot
PRODUCT DIMENSIONS
- Height Range: 18.25″ – 24″
TRAY DIMENSIONS
- Width Range: 10″ – 16″
- Side Arm Clamp Height: .5″ – 1.75″
- Tray Depth: 10″
- Tray Thickness: 2.125″
HOLE PATTERN
- Seat Bolt Distance: 9″-18.875″ center to center
BALL SIZE
- C Size (1.5″)
MATERIALS
- Powder coated steel
- Marine grade-aluminum
- High strength composite
| Weight | 14 lbs |
|---|---|
| Dimensions | 20 × 11 × 6 in |
| Brand | RAM Mounts |
Product Guides & Documentation
Questions & Answers
Can someone sit in the passenger seat while this mount is installed?
Technically someone can still sit in the passenger seat when this mount is installed but the mount does take up a considerable amount of leg room and it does make the passenger seat much less comfortable.
Can I use this on right-hand drive vehicles?
No, for right-hand drive vehicles, you would need the RAM-VB-196-1-SW1.
Does this work with the RAM® Remove-A-Pole™ Riser for Vehicle Laptop Mounts: RAM-VB-REM1
No, the RAM-VB-REM1 is not compatible with the RAM-VB-196-SW1 (Universal No Drill Laptop Mount). The Remove a Pole is attached between one of the vehicle specific no drill bases and a lower tele pole, the lower pole in the Universal No Drill Laptop mount is welded to the base plate itself.
