RAM-VB-190-SW1: RAM No-Drill Laptop mount for ’13-18 Ford Taurus + More

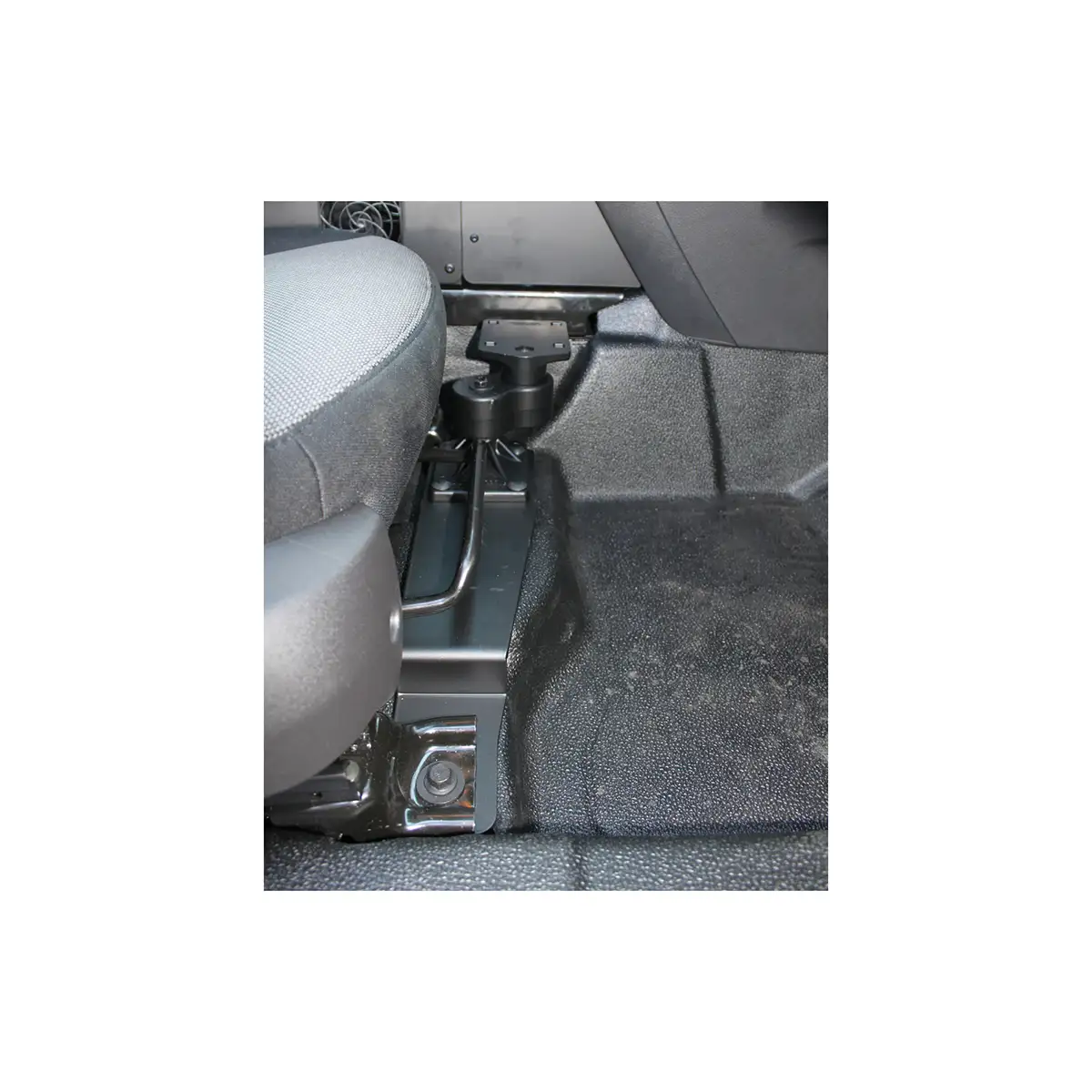

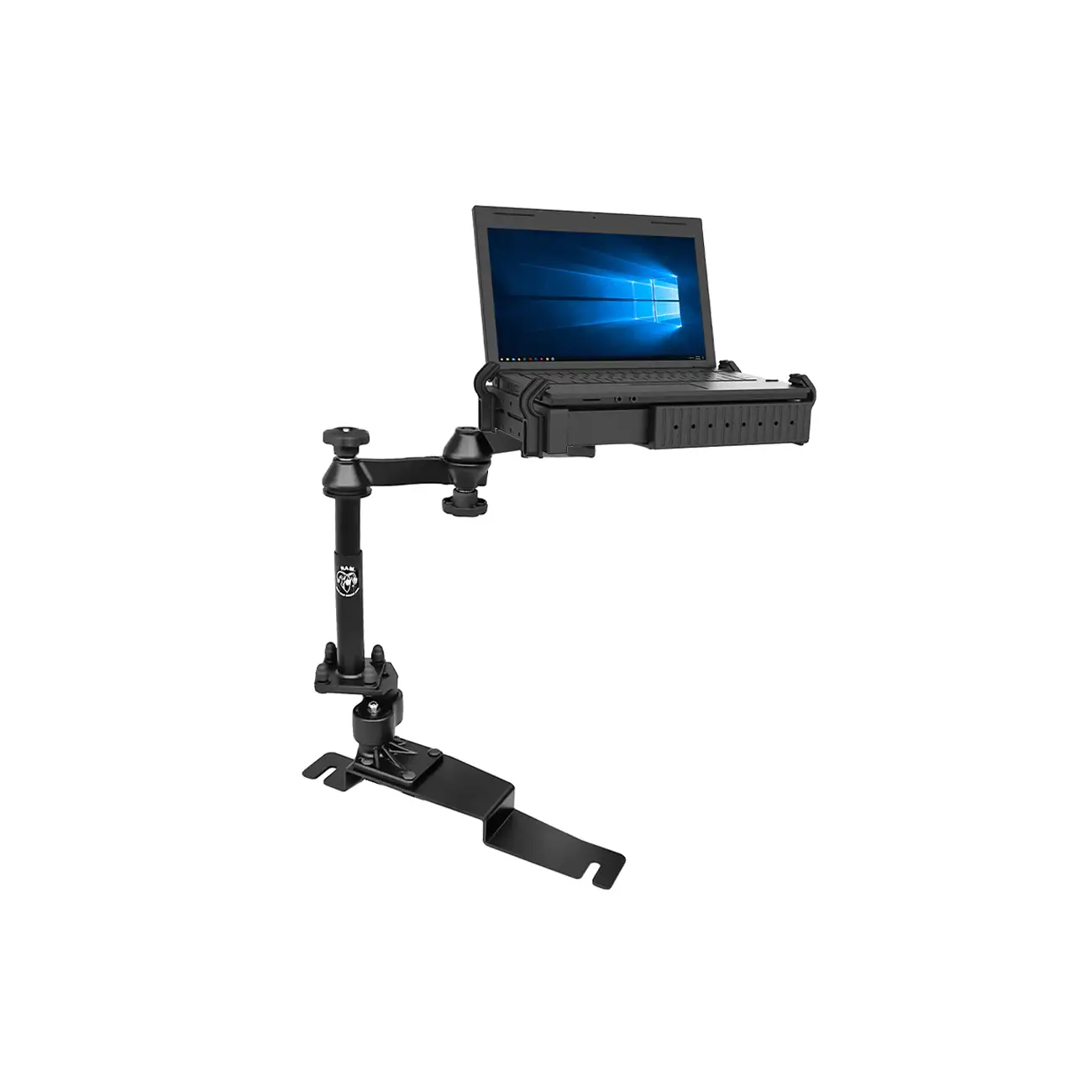

This No-Drill™ Laptop Stand System installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12 to 18 inches. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. The RAM Tough-Tray™ is spring loaded to accommodate 10″ to 16″ wide laptops (17″ wide screens). The tray features four adjustable retaining arms with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS or other electronics.

RAM-VB-190-SW1 COMPONENTS

• RAM-VB-190 + RAM-VP-SW1-47 + RAM-234-3

RAM-VB-190-SW1 COMPATIBILITY

• Ford Police Interceptor Sedan (2013-2017)
• Ford Taurus (2013-2018)

HARDWARE INCLUDED

• Assembly Hardware

TRAY DIMENSIONS

• Width Range: 10″ – 16″
• Side Arm Clamp Height: .5″ – 1.75″
• Tray Depth: 10″
• Tray Thickness: 2.125″

HOLE PATTERN

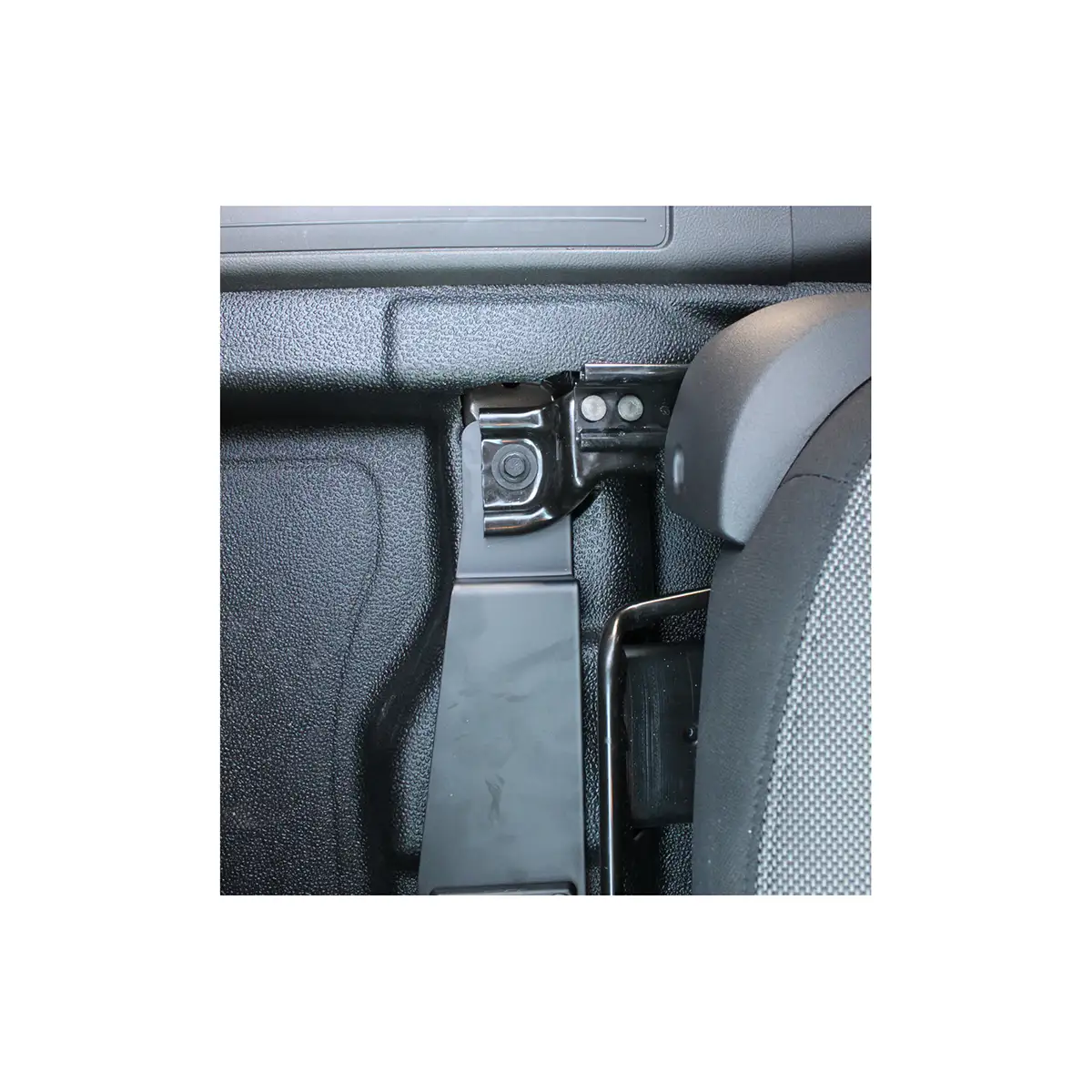

• Seat Bolt Distance: 16.5″ center to center

BALL SIZE

• C Size (1.5″)

MATERIALS

• Powder coated steel
• Marine grade-aluminum
• High strength composite
