RAM-VB-129-A-SW1: RAM No-Drill Laptop Mount for the ’14-23 Ram Promaster + More

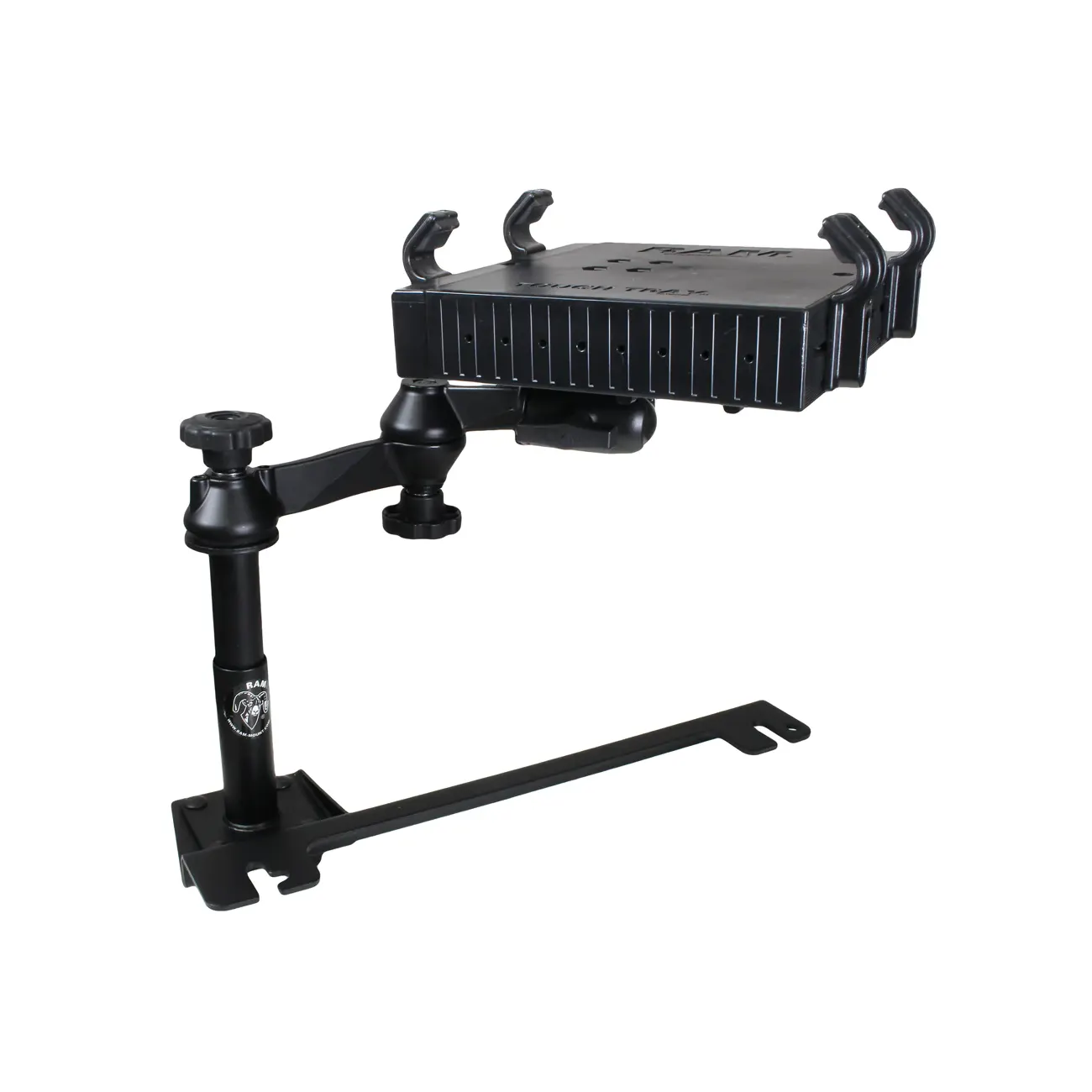

This No-Drill Laptop Stand System installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature with upper and lower poles that allow you to set your mount to the desired height with the simple turn of a knob. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. The RAM Tough-Tray is spring loaded to accommodate 10″ to 16″ wide laptops (17″ wide screens). The tray features four adjustable retaining arms with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS or other electronics.

• RAM No-Drill base offers low-profile mounting; telescoping pole allows for height adjustments
• Dual articulating swing arm allows for ideal placement; universal laptop tray accommodates most laptops
• Made of powder-coated steel and marine-grade aluminum

Compatible Vehicles

• Chrysler
  • 300 (2011-2023)
• Dodge
  • Challenger (2011)
  • Charger (2005 2011-2023)
  • Charger Police Package (2005 2011-2023)
  • Magnum (2005)
  • Magnum Police Package (2005)
  • Sprinter Van (2007-2010)
• Freightliner
  • Sprinter Van (2010-2017)
• Mercedes
  • Sprinter Van (2010-2017)
• Ram
  • Promaster (2014-2023)
  • Promaster City (2014-2023)

Hardware Included

• Assembly Hardware
• (2) M10 x 40mm Hex Bolts
• (2) M10 Lock Washers

Tray Dimensions

• Width Range: 10″ – 16″
• Side Arm Clamp Height: .5″ – 1.75″
• Tray Depth: 10″
• Tray Thickness: 2.125″

Hole Pattern

• Seat Bolt Distance: 16.5″ center to center

Ball Size

• C Size (1.5″)

Materials

• Powder coated steel
• Marine grade-aluminum
• High strength composite

Weight

• 13.0 lb

Additional Information

The RAM-VB-129-A-SW1 will not work for bench/tube frame seats. For bench seat or tube frame seat model vehicles, consider the use of the RAM-VB-184T-SW1.
