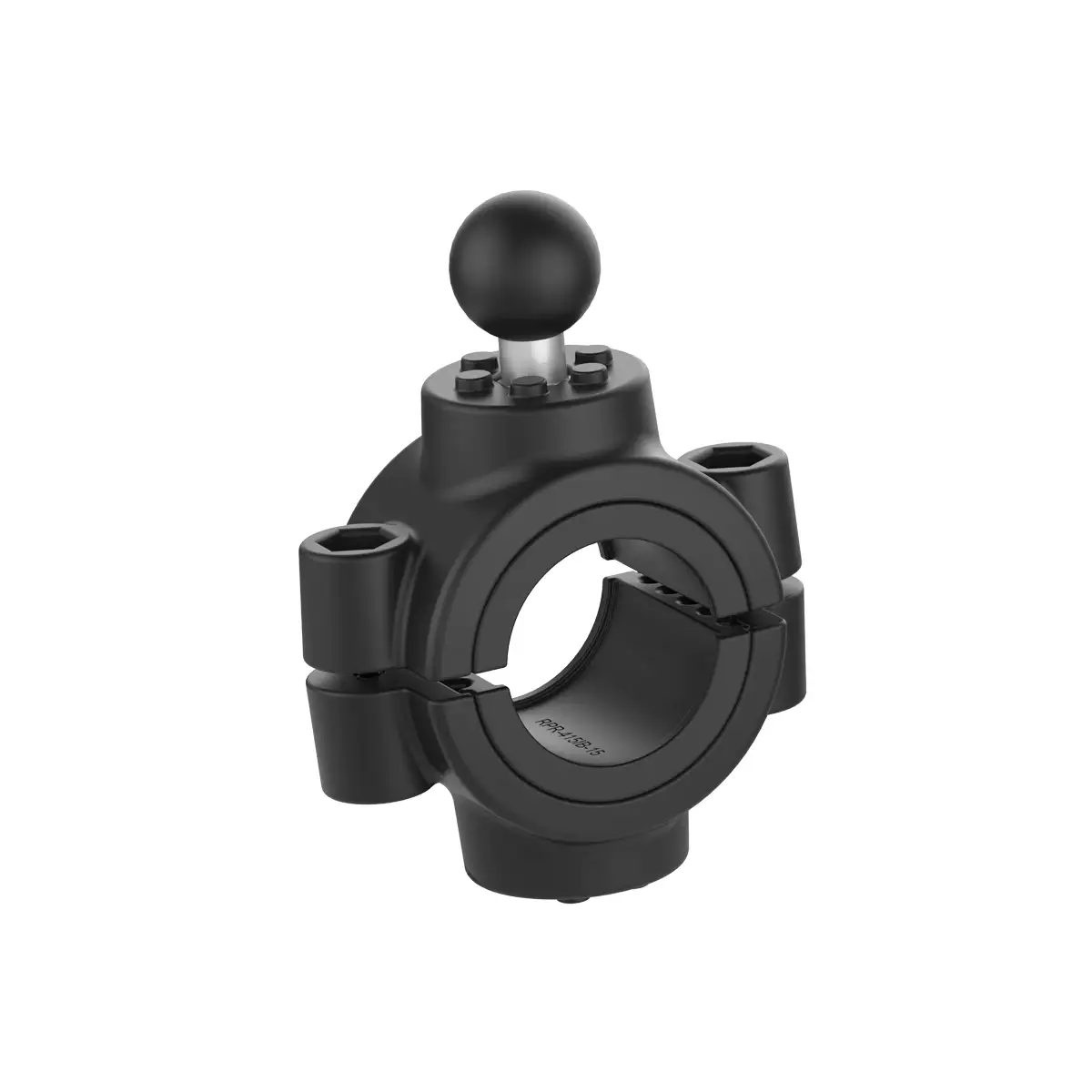

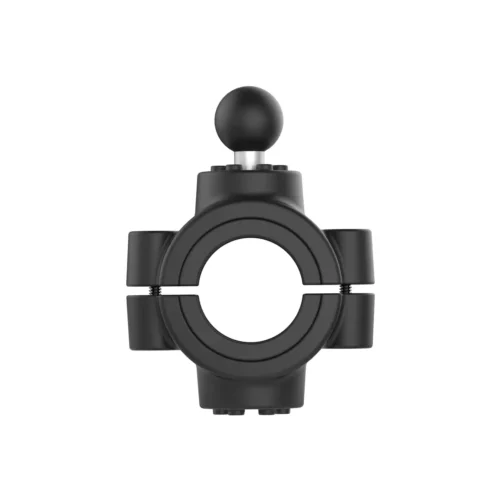

RAM-B-415-15-2U: RAM Torque 1 ½” – 2″ Diameter Rail Base

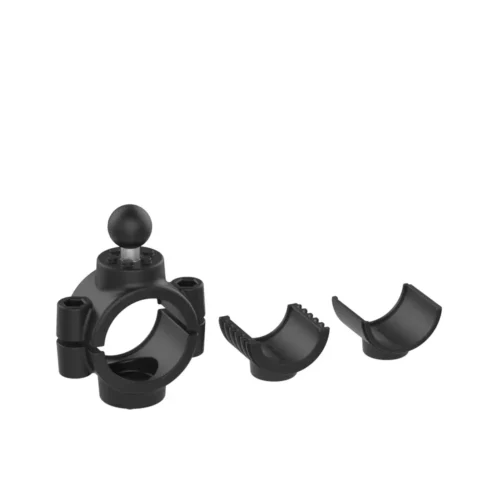

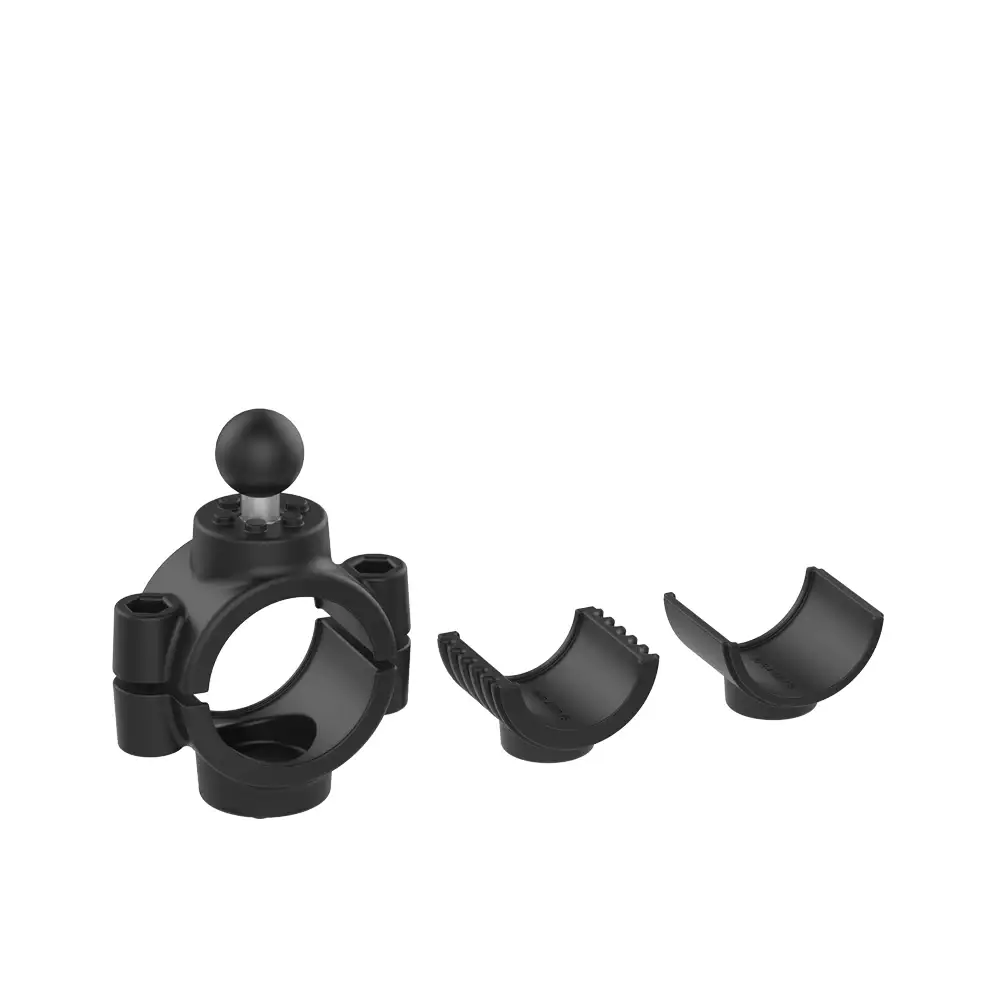

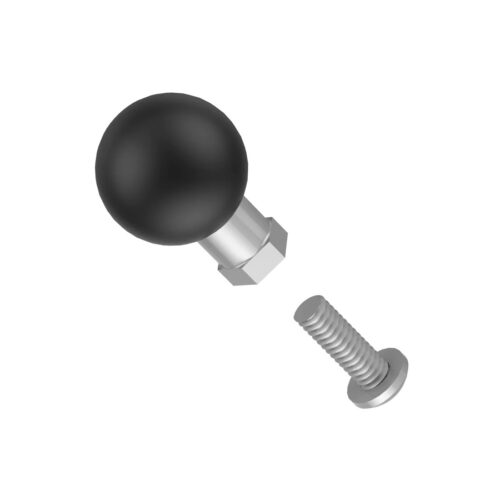

The RAM Torque Rail Base accommodates rails and bars ranging from 1.5” to 2” in diameter – the perfect mounting solution for your ATV or UTV. The include B size hex ball adapter can connect to either side of the Torque base, and is suitable for rugged environments for supporting action cameras, spotlights or other devices. Two sizing inserts – one for attachment to 1.5” rails and the other for attachment to 1.75” rails – are included to create a tight hold while nylon-insert lock nuts prevent loosening in high-vibration environments. Available separately, the RAM B Size Ball Add-On allows you to attach an additional B Size Ball to the Torque Rail Base for mounting multiple devices.

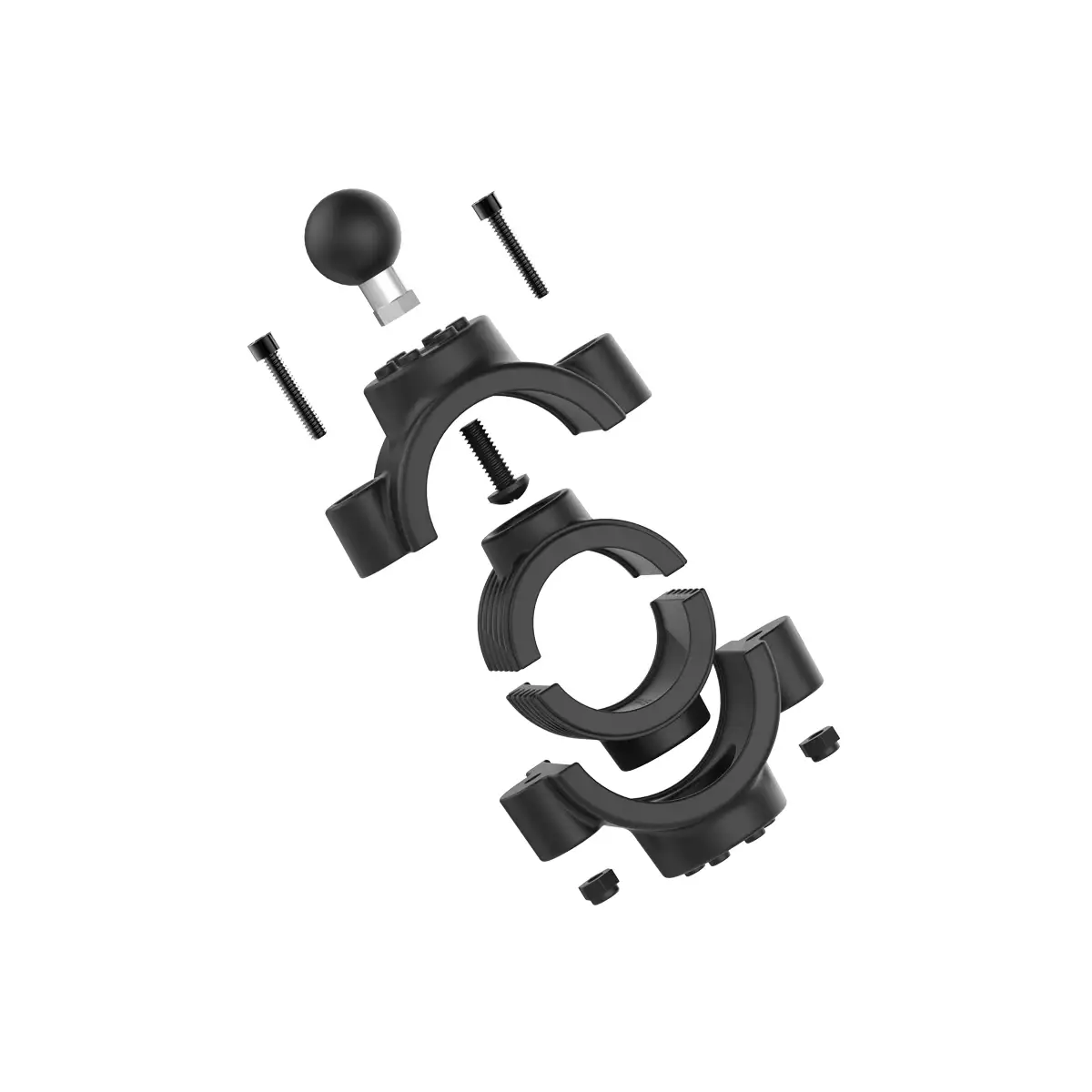

Hardware Included

• Assembly Hardware
• (2) #10-24 x 1″ Socket Head Cap Screws
• (2) #10-24 Nylock Nuts
• (1) 5/32″ Hex Key Wrench
• (2) 1.5″ Split Reducing Bushings
• (2) 1.75″ Split Reducing Bushings
• (1) 172mm x 38.5mm Rubber Adhesive Strip

Clamp Range

• 1.5″ – 2″ diameter

Ball Size

• B Size (1″)

Weight Capacity

• Standard Use: 2 lbs
• Heavy-Duty Use: 1 lb

Materials

• Marine-grade aluminum

Weight

• 0.78 lb
