Home / GPS Units / GPS Accessories / Mounts / Universal RAM Mounts / RAM Holders & Cradles / Charging Holder

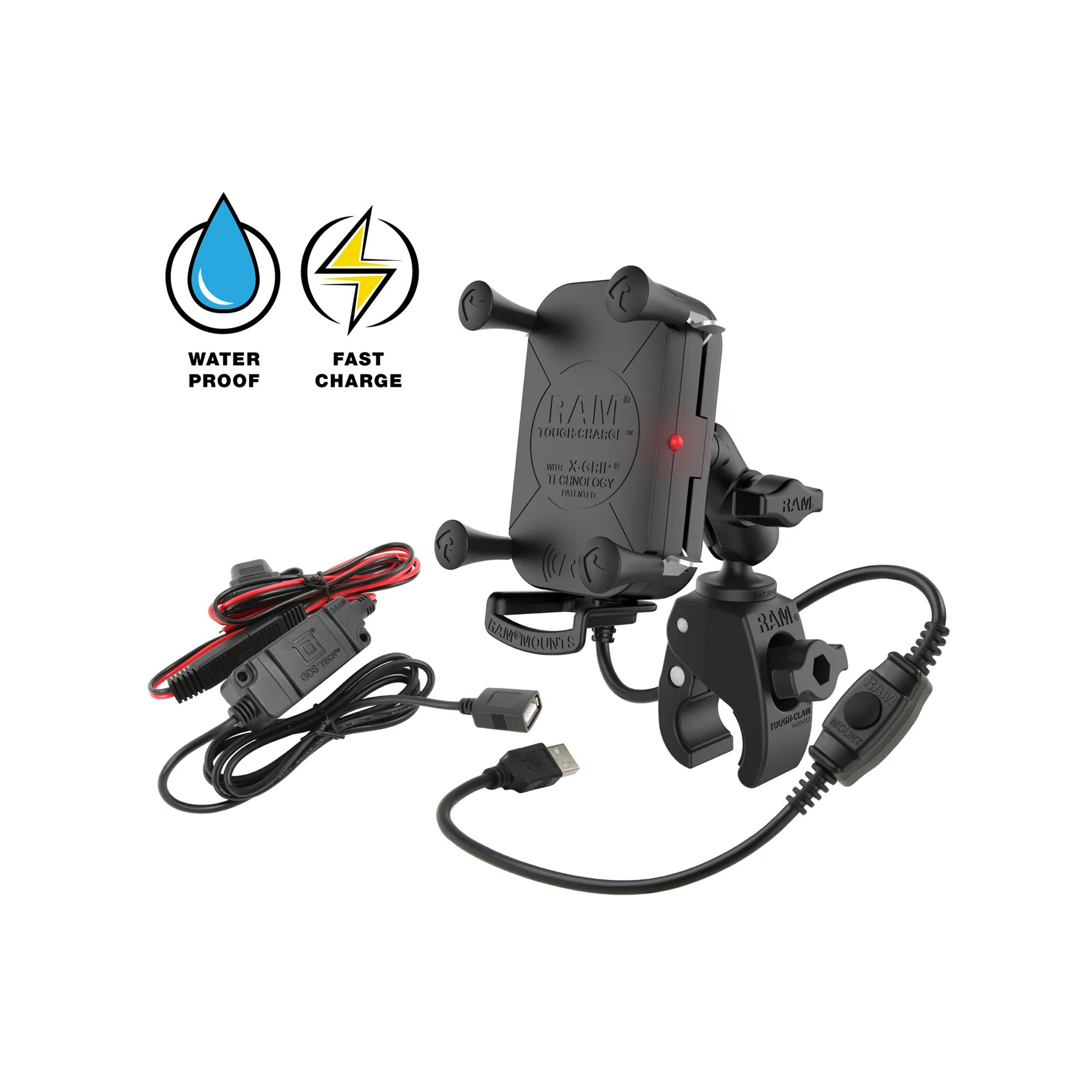

RAM-B-400-A-UN12W-V7M: RAM Tough-Charge 15W Wireless Charging Mount with Tough-Claw
RAM-B-400-A-UN12W-V7M: RAM Tough-Charge 15W Wireless Charging Mount with Tough-Claw components
RAM-B-400-A-UN12W-V7M: RAM Tough-Charge 15W Wireless Charging Mount with Tough-Claw cockpit application
RAM-B-400-A-UN12W-V7M: RAM Tough-Charge 15W Wireless Charging Mount with Tough-Claw on motorbike
RAM-B-400-A-UN12W-V7M: RAM Tough-Charge 15W Wireless Charging Mount with Tough-Claw
RAM-B-400-A-UN12W-V7M: RAM Tough-Charge 15W Wireless Charging Mount with Tough-Claw components
RAM-B-400-A-UN12W-V7M: RAM Tough-Charge 15W Wireless Charging Mount with Tough-Claw cockpit application
RAM-B-400-A-UN12W-V7M: RAM Tough-Charge 15W Wireless Charging Mount with Tough-Claw on motorbike

RAM-B-400-A-UN12W-V7M: RAM Tough-Charge 15W Wireless Charging Mount with Tough-Claw

MPN: RAM-B-400-A-UN12W-V7M
MPN:

$189.95

Out of Stock (On Order)

SKU: 14750 Categories: Motorcycle Mounts, Handlebar Mounts, Subassemblies, Motorcycle & All-Terrain, Universal RAM Mounts, Charging Holder
Browse Another Category
  • New Arrivals
  • GPS Units
    • Automotive GPS
    • Aviation GPS
    • Fitness & Wearables
    • GNSS & GIS
    • GPS Accessories
      • Garmin Accessories
      • Antennas
      • Batteries
      • Cases & Covers
      • Data Cards
      • Maps & Charts
      • Mounts
        • Handlebar Mounts
        • Automotive
        • Marine
        • Motorcycle & All-Terrain
        • Universal RAM Mounts
          • RAM Holders & Cradles
            • Garmin GPS Holders
            • Other GPS Holders
            • SPOT Holders
            • Universal Holders
            • Apple Holders
            • Aquaboxes
            • Laptop Holders
            • Camera Mounts
            • Charging Holder
          • Subassemblies
          • Tough-Track
          • No-Drill Vehicle Mounts
          • Arms & Connectors
          • Bases
        • Various
      • Power Supplies
      • Smartwatch Accessories
      • Traffic & XM Receivers
    • GPS/OEM Sensors & Receivers
    • Handhelds
  • Marine
  • Tracking
  • Radios
  • Metal Detecting
  • Outdoors
  • On Sale
  • Gift Certificates
  • Warranties
  • Discontinued
  • Description
  • Additional information
  • Specifications

The RAM® Tough-Charge™ with X-Grip® Technology is the world’s first patented, universal waterproof wireless charging cradle for phones. Designed with spring-loaded RAM® X-Grip® Technology, this cradle features an ‘X’ design that expands and contracts to secure nearly any phone while taking advantage of Qi wireless phone charging. All four arms feature rubber-coated caps that hold your phone firmly in place, and the open design keeps buttons and switches accessible on the sides of phones. To insert your device, simply squeeze the arms on one side of the cradle and place your phone inside before releasing the arms. This Qi wireless charging cradle ensures your compatible phone charges no matter what position it’s placed at. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications. In addition, a support leg can be adjusted to the ideal position or removed altogether. This RAM® Tough-Charge™ with X-Grip® Technology wireless charging kit includes a B size diamond base featuring a 1” rubber ball, short length double socket arm, and a RAM® Tough-Claw™ clamping base. With the RAM® Tough-Claw™ base, you can easily attach the wireless phone charger to round, square, and odd-shaped rails and bars ranging from .625” to 1.5” in outer diameter. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable. This kit includes a hardwire charger.

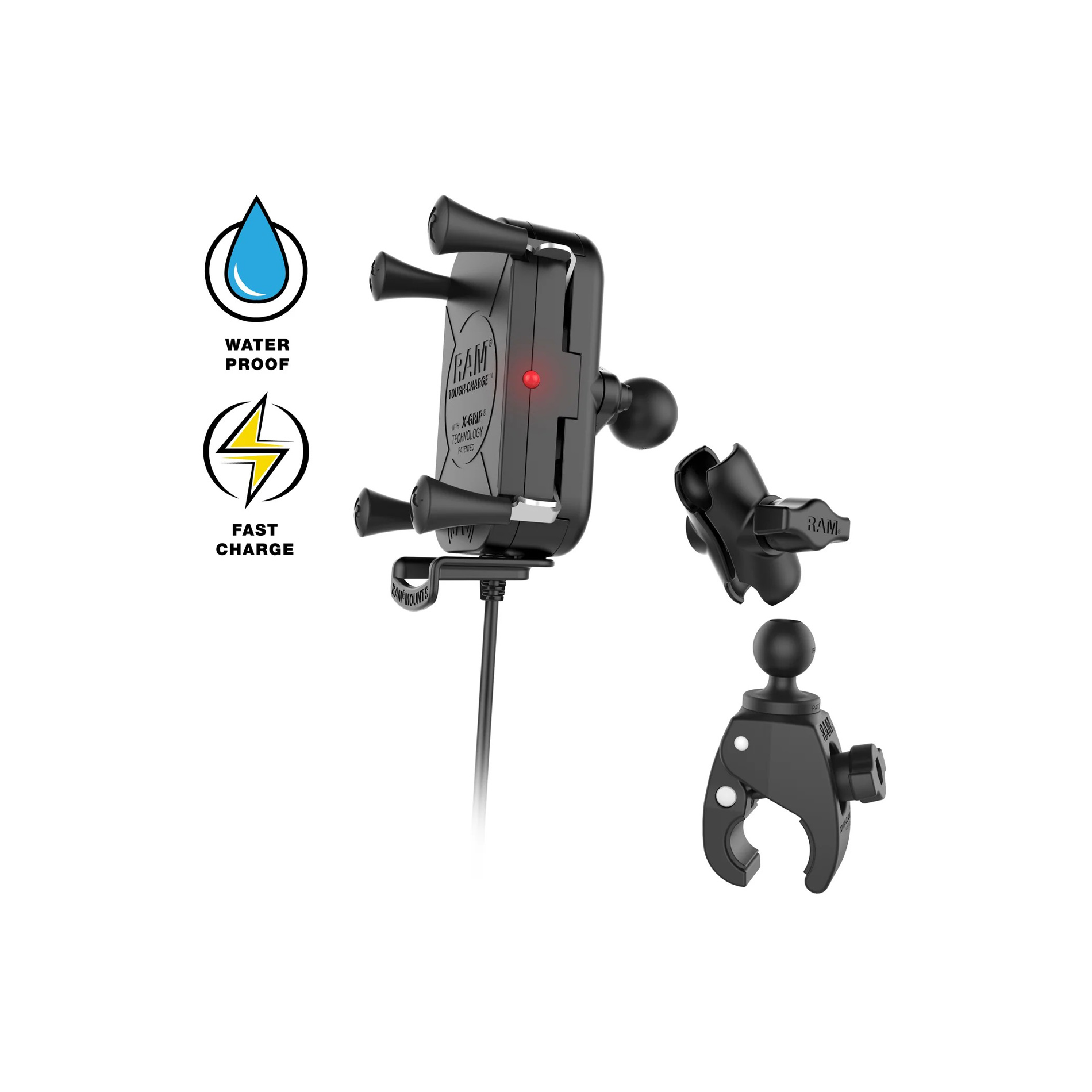

RAM-B-400-A-UN12W-V7M COMPONENTS

  • RAM-HOL-UN12WB-V7M + RAM-B-201U-A + RAP-B-400U

RAM-B-400-A-UN12W-V7M FEATURES

  • Waterproof Qi compatible wireless phone charging cradle features spring-loaded RAM® X-Grip® technology and 15W maximum output
  • Kit includes wireless charging cradle, B size diamond ball base, short double socket arm, RAM® Tough-Claw™ clamping base, and hardwire charger
  • Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
  • RAM® Mounts backed by lifetime warranty, RAM® electronics backed by 1-year warranty with proof of purchase required

HARDWARE INCLUDED

  • (1) Safety Tether
  • (1) Glue Tube for Rubber Caps
  • (1) Cradle Leg
  • (1) Cradle Leg Cover
  • (1) Silicon sleeve for USB waterproof connection
  • (1) Hardwire Charger with Cable
  • (4) Small zip ties
  • (4) Large zip ties

HOLDER DIMENSIONS

  • Width Range: 2.375″ – 3.25″
  • Depth Range: .875″ max

CLAMP RANGE

  • .625″ – 1.14″ diameter

SOCKET TO SOCKET LENGTH

  • 1.75″

BALL SIZE

  • B Size (1″)

WEIGHT CAPACITY

  • Standard Use: 2 lbs
  • Heavy-Duty Use: 1 lb
Weight 1.88 lbs
Dimensions 6.5 × 3.5 × 7.25 in
Brand

RAM Mounts

Ball Size

1" – B

Specifications

RAM-B-400-A-UN12W-V7M Specs

POWER SPECIFICATIONS

Input Power:5V-2A; 9V-1.67A
Output: 15W
Conversion Efficiency: 85% Max
Maximum Case Thickness: 6mm
Working Frequency: 110-205KHZ
Product Standard: WPC v.1.2.4
QI Compatible
Compatible with QC2.0/QC3.0 power supplies

OPERATING TEMPERATURE

0°C to +37.7°C

COMPLIANCE

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant

CERTIFICATIONS

CE Certification
KC
e-Mark Certification
RCM Certification
FCC Certification

WARRANTY

1 year warranty

ADDITIONAL INFORMATION

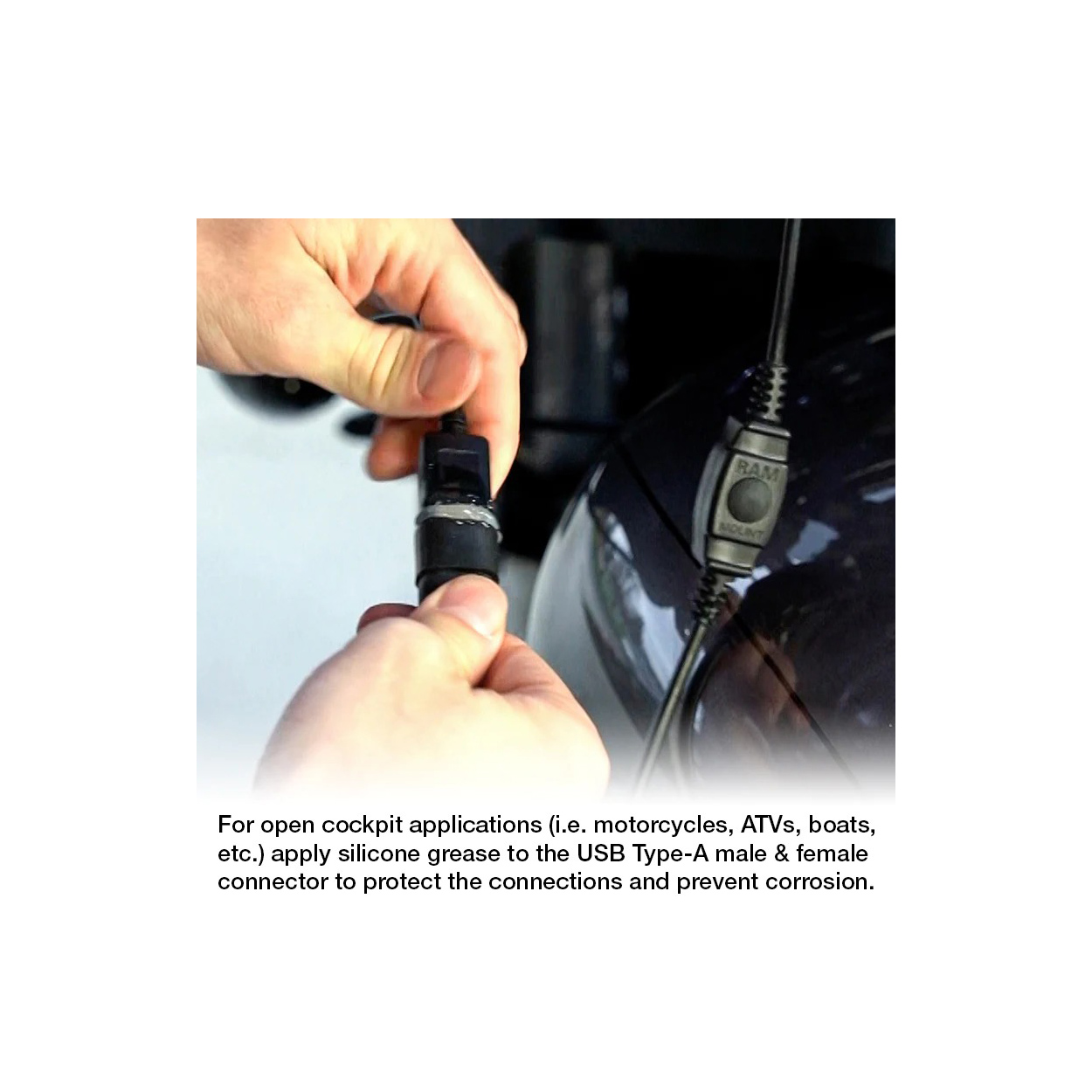

IMPORTANT: For open cockpit applications (i.e. motorcycles, ATVs, boats, etc.) apply silicone grease to the USB Type-A male & female connector to protect the connections and prevent corrosion. Failure to do so will void warranty. Click here for instructional video.

Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.

Size of case may affect compatibility. Not compatible with phone cases containing metal. This holder will not charge phones that do not have built-in wireless charging capabilities, such as the Apple iPhone 7 or Samsung Galaxy S5.

iPhone 12 and iPhone 13 products support a new and proprietary wireless charging standard not supported in this product.
