RAM-B-316-1-238U: RAM Pod I Vehicle Mount with 18″ Aluminum Rod and Diamond Plate

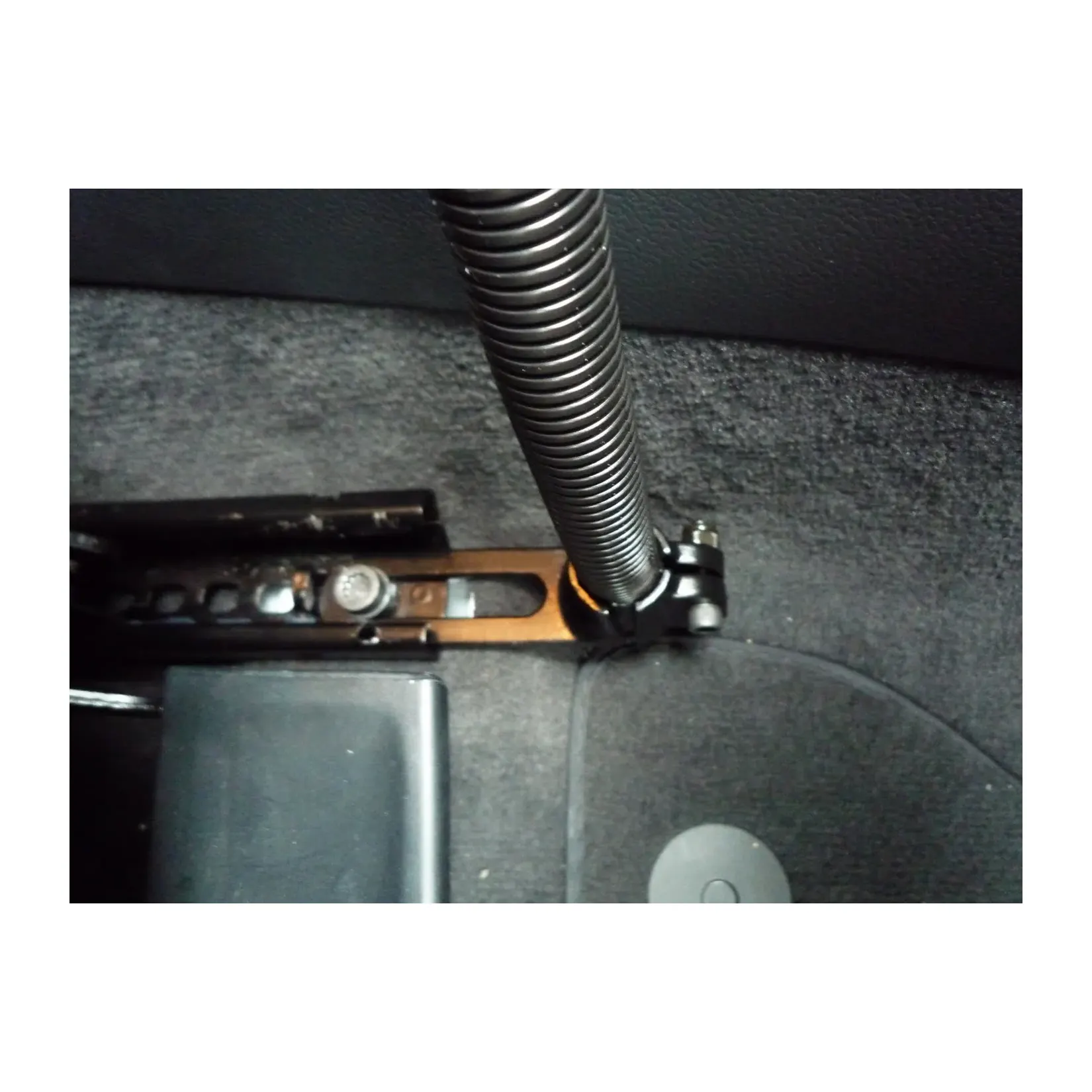

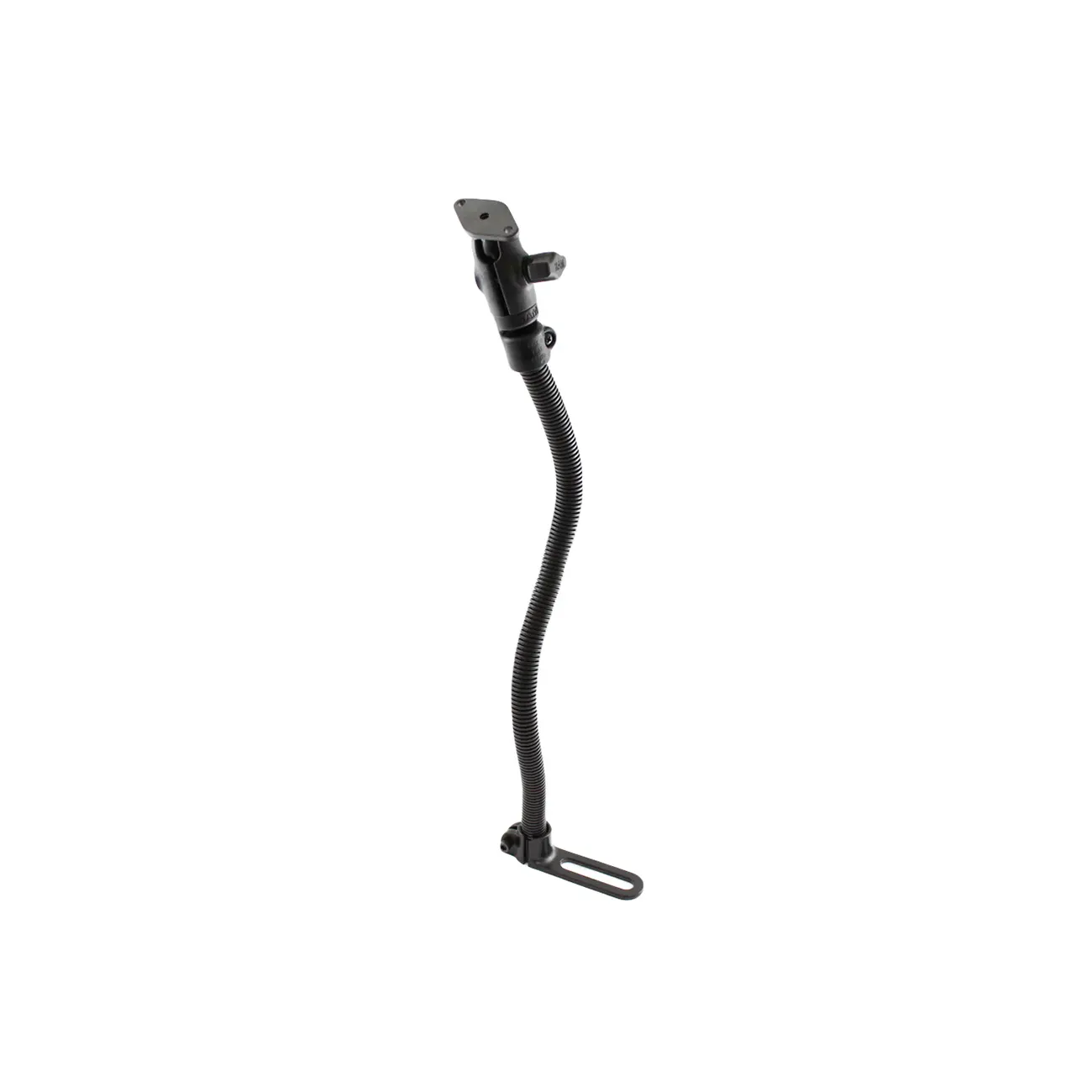

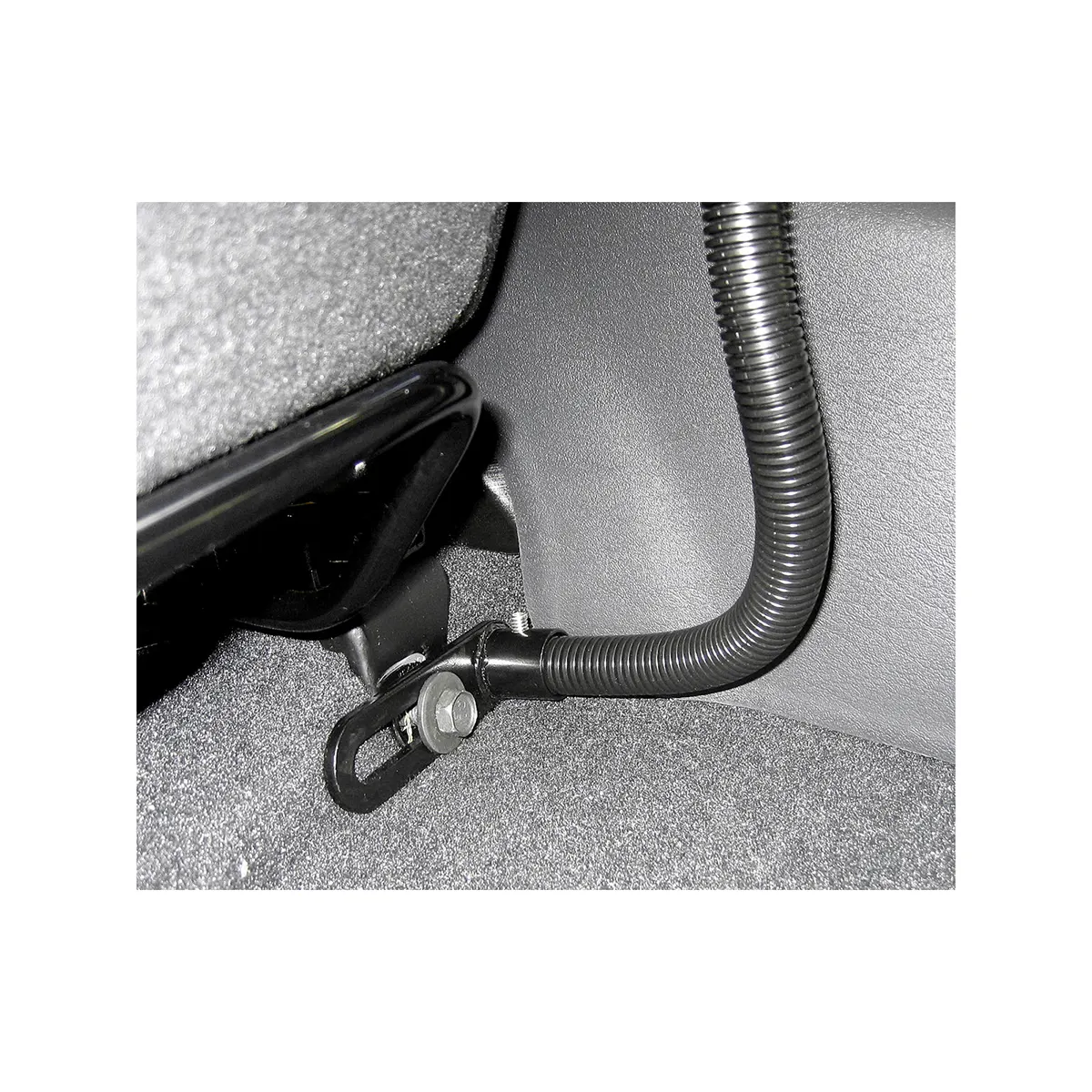

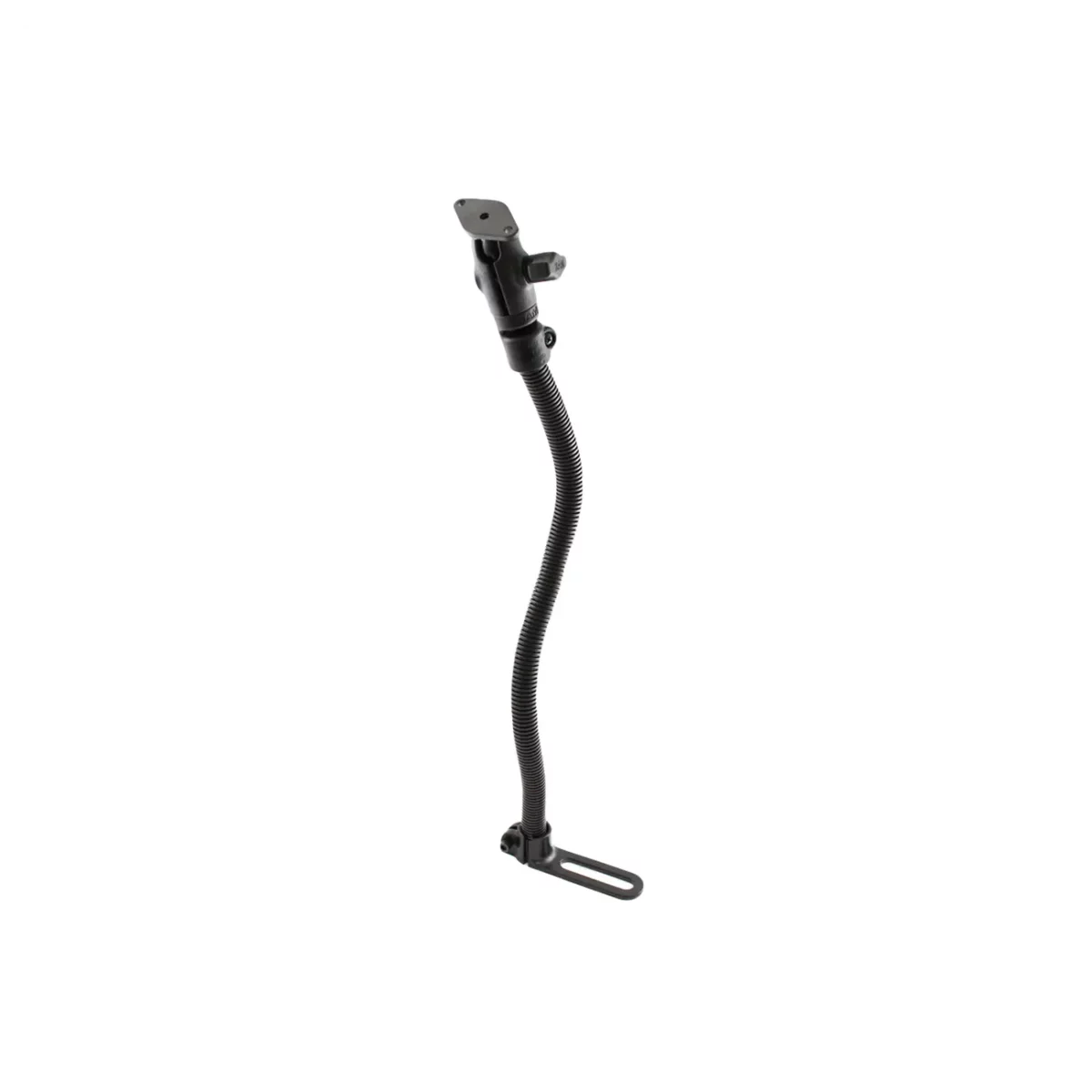

The RAM-B-316-1-238U consists of the RAM POD I universal No-Drill™ vehicle base, 18” rigid aluminum rod, single 1″ ball socket arm and diamond base adapter. The base of the mount connects to your seat rail without any drilling necessary. The 18″ rigid aluminum rod can be bent to position your device to its optimum viewing location. The RAM POD I will hold everything you need safely and securely. The diamond adapter base consists of a 1″ diameter rubber ball connected at right angles to a 2.43″ x 1.31″ diamond base. The base has two holes 1.912″ from center to center, matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles.

Components

• RAM-B-316-1U + RAM-B-238U

Hardware Included

• Assembly Hardware

Product Dimensions

• Overall Height: 21″

Hole Pattern

• 2-Hole AMPS: 1.912″

Plate Size

• 2.43″ x 1.31″

Ball Size

• B Size (1″)

Weight Capacity

• Standard Use: 2 lbs
• Heavy-Duty Use: 1 lb

Materials

• Marine-grade aluminum
• High strength composite

Weight

• 1.7 lb
