RAM-137U: RAM Large Marine Electronics Mount

Name: RAM-137U RAM 3" x 11" Rectangular Plate - GPSCentral.ca
Brand: RAM Mounts
SKU: 10171
Availability: InStock

MPN: RAM-137U

$89.99

The RAM-137U, powder coated marine grade aluminum mount, consists of a double socket arm mount, one 2.5″ diameter round base with 1.5″ rubber ball and flat 11″ x 3″ rectangular plate.

Out of Stock (On Order)

SKU: 10171 Categories: Subassemblies, 1.5" Ball Subassemblies, Universal RAM Mounts

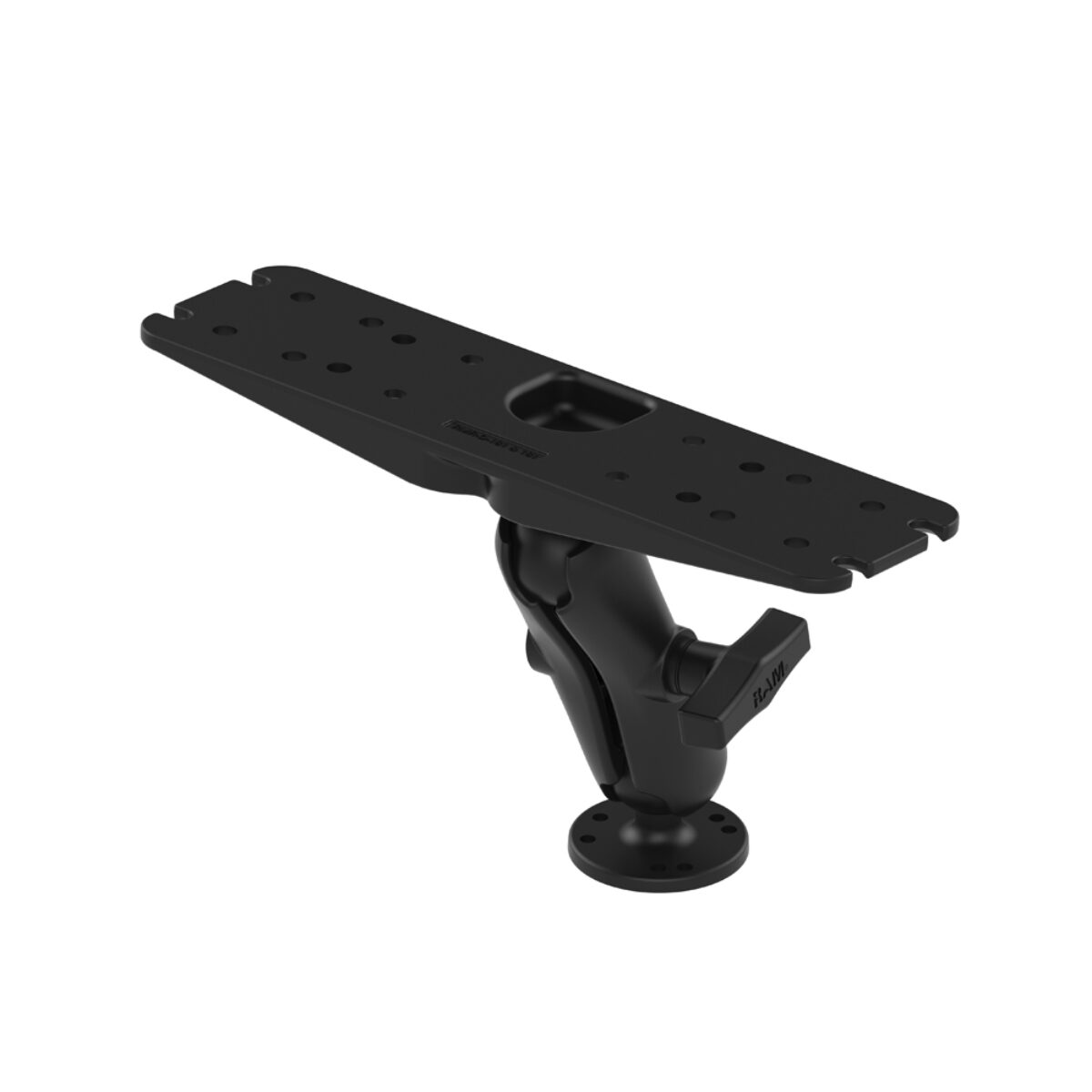

RAM 3″ x 11″ Rectangular Plate with 1.5″ Ball, Double Socket Arm & 2.5″ Round Base

The RAM-137U, powder coated marine grade aluminum mount, consists of a double socket arm mount (RAM-201U), one 2.5″ diameter round base (RAM-202U) with 1.5″ rubber ball and flat 11″ x 3″ rectangular plate (RAM-137BU). The plate contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more. Rubber ball, socket technology dampens shock and vibration, as well as allows for almost infinite adjustment, perfect viewing angles.

HARDWARE INCLUDED

(4) .312″ x .187″ Shoulder Washers

SOCKET-TO-SOCKET LENGTH

4.66″

HOLE PATTERN

4-Hole AMPS: 1.181″ x 1.496″
3-Hole 120-Degree: 1.812″ Diameter

PLATE SIZE

Top Plate: 3″ x 11″
Bottom Plate: 2.5″ Diameter

BALL SIZE

C Size (1.5″)

WEIGHT CAPACITY

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminum

WEIGHT

1.95 lbs.

ADDITIONAL INFORMATION

This plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
