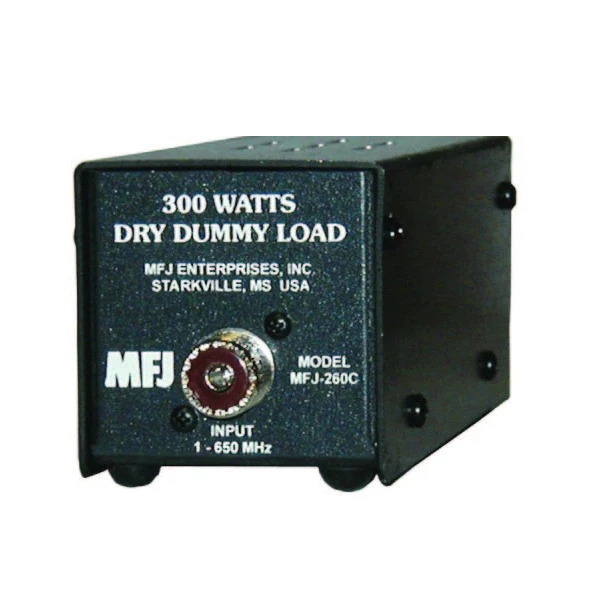

MFJ-260C 300W Dry Dummy Load

The MFJ-260C Dummy load is a dry, air cooled, resistive dummy load. This resistor load is capable of dissipating RF power without the bulk or mess of oil or other coolants. It is capable of handling up to 300 Watts for a short period of time.

The MFJ-260C is an air cooled, non-inductive resistor in a perforated metal housing. It has SO-239 connectors. You can handle a full load for 30 seconds. Silk-screened derating curve to 5 minutes. Handles 300 Watts. SWR below 1.1:1 to 30 MHz, 1.5:1 from 30 to 650Mhz. It measures a super compact 2 1/4×2 1/4×7 inches.

MFJ-260C Specifications:

• IMPEDANCE: 50 Ohms, ± 10 %
• VSWR: Max: 1.3:1, 0-650 MHz
• POWER: 300 Watts for 30 seconds
• DISSIPATION: (2 min cooldown) 25 Watts continuous
• DIMENSIONS: 2½” x 2½” x 7″
