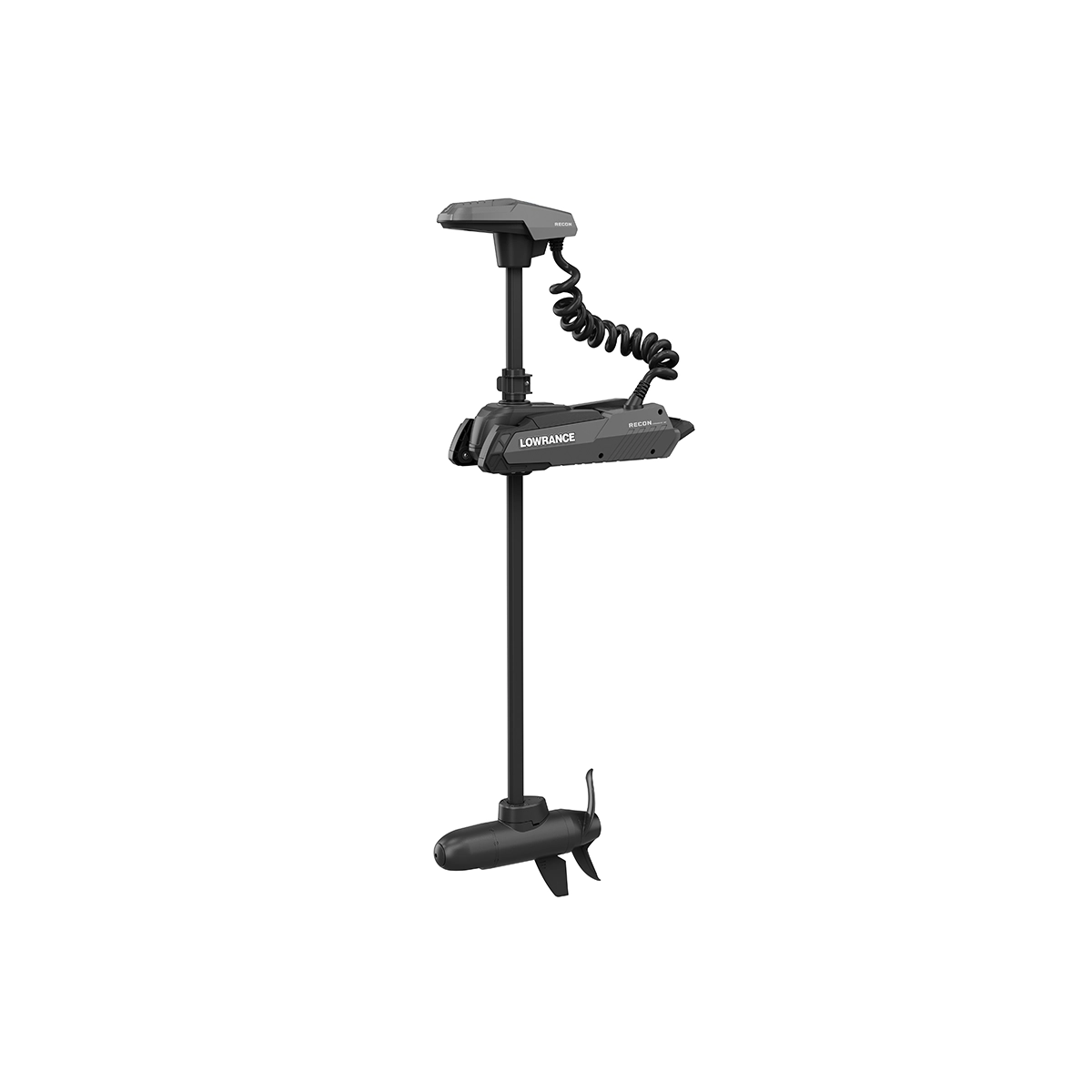

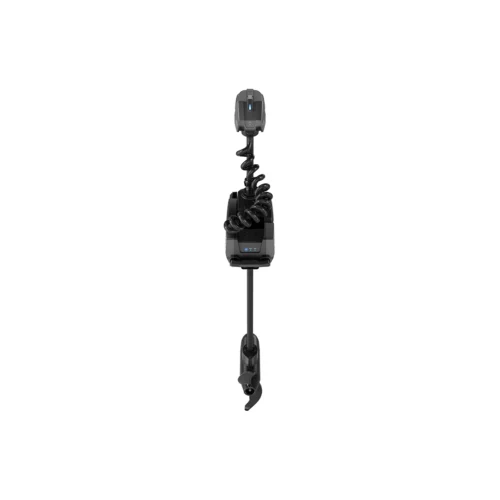

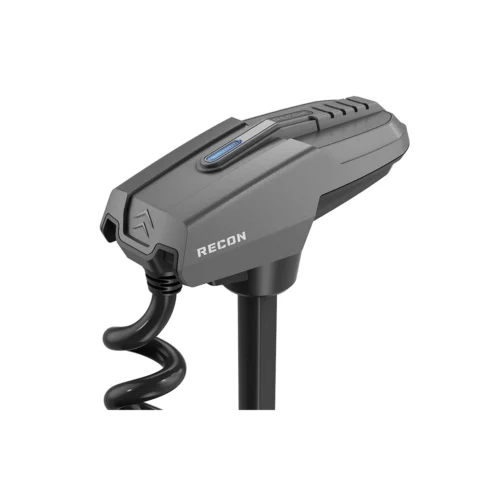

Lowrance RECON Trolling Motors for Freshwater
Price range: $5,078.00 through $5,518.00
Recon – the new generation of freshwater electric steer trolling motor from Lowrance. A unique joystick remote, wireless foot pedal and display integration allow you to control your motor from anywhere onboard. While best in class GPS and thrust hold you in position, no matter the conditions.
In stock
- Description
- Additional information
- Video
- Specifications
- Package Includes
- Frequently Asked Questions
- Accessories
Lowrance RECON Trolling Motor for Freshwater Features
- Best-in-class power
- Precision GPS positioning
- Near-silent brushless 24V/36V motor
- Lightweight FreeSteer™ joystick remote with color LCD display
- Wireless, configurable foot pedal
- HDI Nosecone
- Plug-and-play upgradeable nosecone
- Multiple accessory mount points
- NMEA 2000 connectivity
- Lifetime shaft warranty
- 3-year motor warranty
Control begins with Recon™ – the new generation of freshwater electric steer trolling motor from Lowrance. A unique joystick remote, wireless foot pedal and display integration allow you to control your motor from anywhere onboard. While best in class GPS and thrust hold you in position, no matter the conditions. With all that taken care of, all that’s left is for you to take control of your cast and reel in the fish.
REVOLUTIONARY CONTROL
The FreeSteer™ remote revolutionizes positional control with its unique jogging abilities. FreeSteer™ unlocks the ability to execute diagonal jogs in 8 directions. Now anglers can move anchor positions freely, in almost any direction, without re-anchoring the boat.
For total flexibility, Recon™ Freshwater models also include a wireless foot pedal, with detachable and programmable lower keypad. Combined with full display integration, you can control from anywhere onboard.
Unparalleled precision
Superior accuracy goes beyond the joystick. Recon™ boasts best-in-class steering speeds, 1-degree steering adjustments, AND a class-leading foot pedal, delivering 40-degrees of heel-toe travel.
Lowrance-pedigree sonar
The freshwater trolling motor model includes an HDI nosecone, allowing easy access to Lowrance-pedigree sonar for noiseless images beneath the surface. An optional upgrade to Active Imaging™ 3-in-1 sonar gives instant access to additional clarity and more views.
Tough enough for anything
Indestructible carbon-fiber infused composite shaft is so solid we have it a lifetime warranty. But it doesn’t end there. The user-serviceable design helps you keep you trolling motor running for longer, along with a range of clear diagnostic error codes, visible on the remote, mobile app, or display.
Designed for anglers
As anglers, we know the details that matter. Whether it’s the multiple accessory mounting points, one-hand cam lock depth collar to enable on-the-go adjustments, or the LED indicators and back-lit controls that guarantee great visibility, even as the light fades. That’s the difference that comes when you choose Lowrance.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Shaft Length | 48" Recon Trolling Motor, 54" Recon Trolling Motor, 60" Recon Trolling Motor, 72" Recon Trolling Motor |
Video
Specifications
Lowrance RECON Trolling Motor for Freshwater Specs
Autopilot
- Compass-sensor support: Internal
- Drive Maximum Thrust: 120 Lbs At 36v; 97 Lbs At 24v
- Manouevres Turn Patterns: yes
- Steering Modes: Wireless Foot Pedal and Remote
Electrical
- Supply Voltage: 24v Or 36v
Environment
- Waterproof rating: IPX7
MFD
- Sonar Compatibility: HDI Sonar Nosecone
- HDS Pro, HDS Live, HDS Carbon, Elite FS (they will require software update, available Q4 2024)
Physical
- Dimensions W x H x D: 11 ¾” L, 7 ¼” W, 4 ½”
- Mounting Type: Pivot style
Other
- Warranty: Period 3-Year, Lifetime Warranty On Shaft

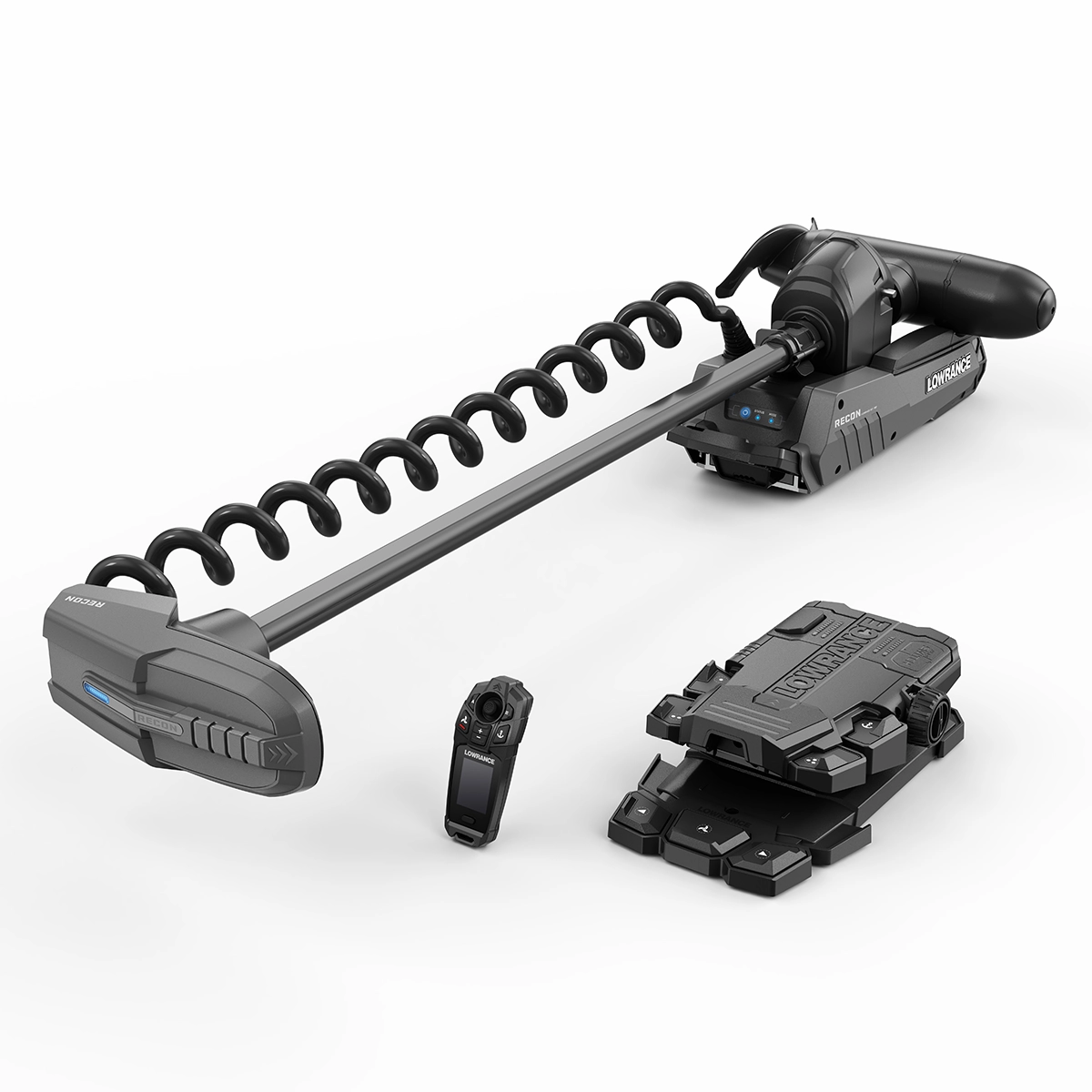

Package Includes
In the Box:
- RECON Trolling Motor with selected shaft length
- FreeSteer Joystick Remote
- Foot Pedal
- Mini 9-pin to 9-pin Sonar adapter cable
- RECON 2-blade Weedless Prop
- N2K-T-RD Micro-C T-connector
Frequently Asked Questions
Lowrance RECON FAQs
Q: Can the RECON™ Trolling Motor receive software updates?
A: Yes, software updates can be done via Lowrance mobile app or through the MFD using NMEA 2000 network.Â
Q: Can the TMR-1 Remote for Ghost® be used with the RECON™ Trolling Motors?
A: No
Q: What additional products/options are needed if I wish to network my RECON™ Trolling Motor to a MFD?
A: An NMEA 2000® starter kit (000-0124-69) will need to be purchased separately, if you do not already have a NMEA network present on your boat. All versions and models come with the T-connector, should you already have a NMEA network present on your boat, which will allow you to connect the Trolling Motor into the existing network. NOTE: N2K Drop Cable’s to clean up cable routing are available from Lowrance or Ancor
Q: Are ActiveTarget® and ActiveTarget® 2 compatible with RECON™ Trolling Motors?
A: Yes, these transducers can be mounted
Q: Will the GHOST® nosecone fit RECON™?
A: No
Q: Will the mounting holes match MotorGuide & GHOST®?
A: Yes, but the installer will need to ensure that the shaft is at least 1.25” inch from the rub rail in the deployed position.Â
Q: Where is the best place to mount the RECON™ Trolling Motor?
A: These are bow mounted Trolling Motors.
Q: Is the Lowrance® RECON™ foot pedal compatible with the GHOST® Trolling Motor?
A: No
Q: What voltage requirements are needed for the RECON™ Trolling motors?
A: 24V or 36V
A: Can the remote / app receive diagnostics?
Q: Yes, the remote will display error codes and the codes can be referenced on the app.
A: Does the GHOST® prop fit RECON™?
Q: No
A: Is RECON™ lithium battery compatible?
Q: Yes. Depending upon the model, a 24V or 36V lithium battery will work with the Trolling Motor.
Q: How many devices can be connected to one trolling motor?
A:Â Up to 5 device can be connected at once. This would be a mix match with the bluetooth pedal, remote, and/or app.
Q: If multiple devices are connected, which device will be in control?
A: The device with the latest command will take control of the action requested.
Q: Can the RECON™ Freshwater version be used in brackish waters, like Ghost if the anode is used?
A: Freshwater Recon does not have Chromate Coating, nor is it planned to include an anode. For a Freshwater unit to be used in Salt/Brackish water – The customer would need to purchase the anode prop kit + rinse the motor with freshwater after each use. Or purchase the Saltwater Recon.
Q: How do you Steer using the FreeSteer™ Remote, is it push down to click/activate, joystick taps, or joystick hold?
A: Joystick tap and release will enable Left or Right Rotation (upon release the motor will stop steering), Or steer by pushing & holding the joystick in the direction you wish to go towards. Clicking to activate is not necessary.
