$3,929.99
A complete portable live sonar and fish finder solution for all your ice fishing needs. The Explorer Series brings together the Elite Fishing System (FS) with ActiveTarget™ Live sonar all in one convenient pack designed to make your ice fishing experience the best it can be.
Out of Stock (On Order)

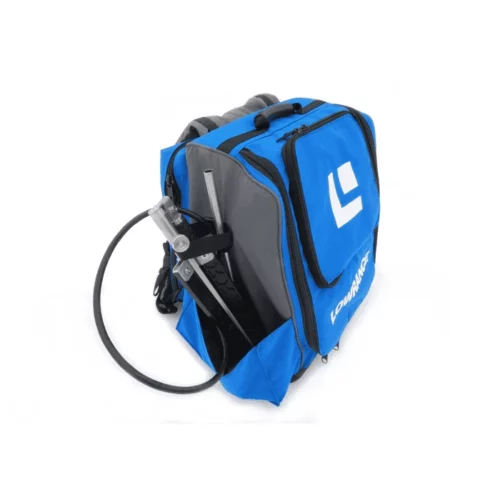

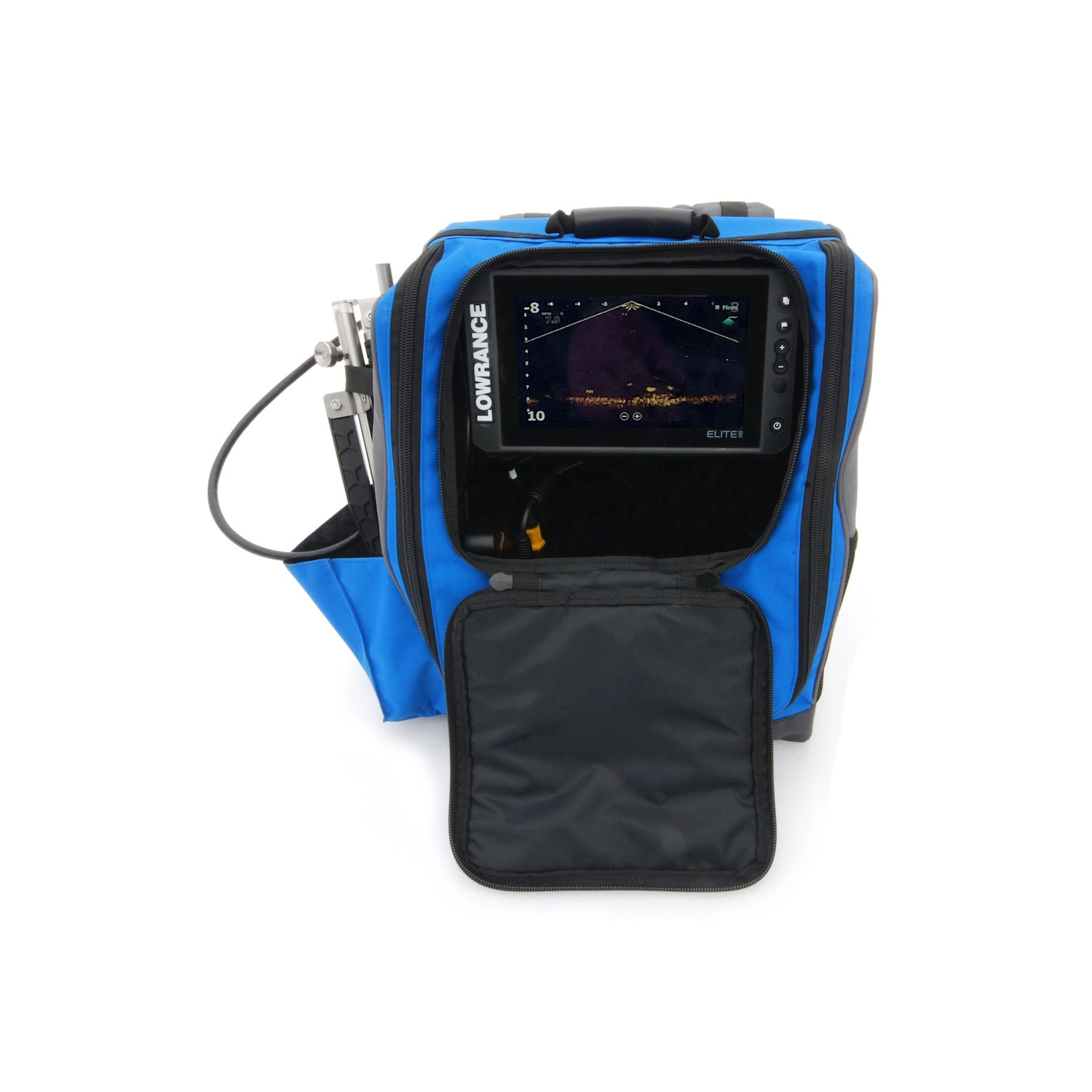

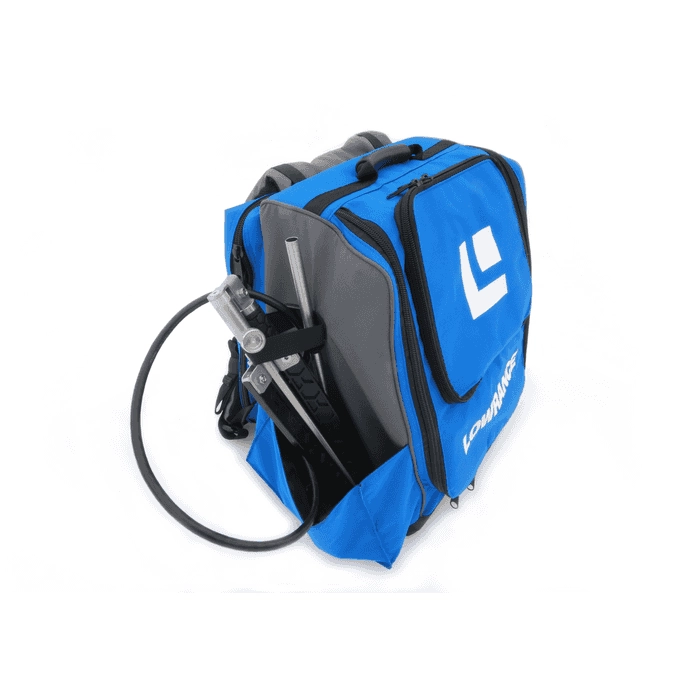

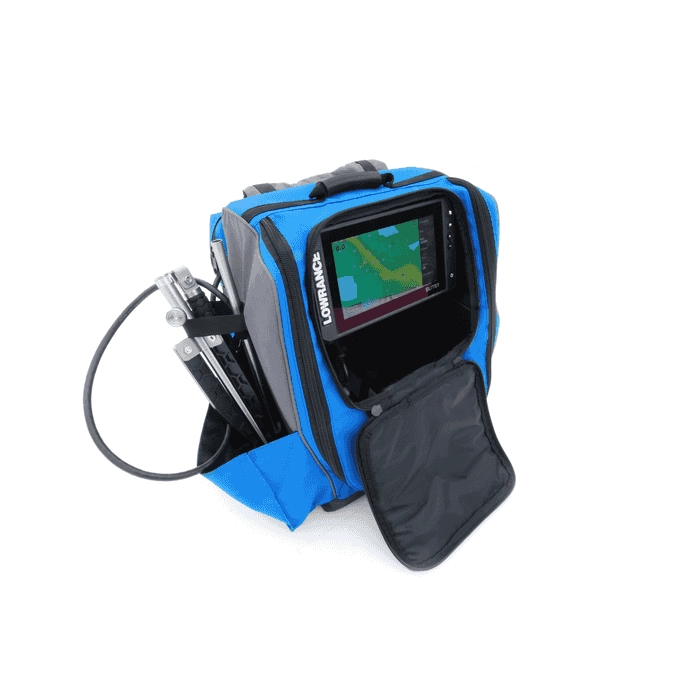

A complete portable live sonar and fish finder solution for all your ice fishing needs. The Explorer Series brings together the Elite Fishing System (FS) with ActiveTarget™ Live sonar all in one convenient pack designed to make your ice fishing experience the best it can be. The pack includes an Elite FS 9 display, ActiveTarget™ Live Sonar, premium Explorer Series bag and frame, Ice Transducer Pole for ActiveTarget™ Down, Forward or Scout views, a 24 Ah lithium battery with dual USB charging ports and built-in voltage meter, along with custom wiring harness, master power switch and Ethernet cable.
See high-resolution images of fish swimming around structure and responding to your lure, as it happens, with new ActiveTarget™ Live Sonar. Featuring Forward, Down or Scout™ views, you can scan fish locations around your boat and easily track their movements. See how fish relate to structure and react, so you can make the right adjustments to make them strike. GAME ON!
| Weight | 28.7 lbs |
|---|---|
| Dimensions | 22 × 26 × 20 in |
| Brand | Lowrance |
| Manufacturer Part Number | 000-15956-001 |
Sonar |
|
| Power Output | Max 1 kW RMS |
| Sonar Connections | One connector for Active Imaging, SideScan, DownScan and CHIRP |
| Active Imaging 3-in-1 | DownScan Imaging™ at 455 kHz: Max 300 ft (91 m): SideScan Imaging at 455kHz: Max 300 ft./91 m to each side |
| CHIRP Sonar | High Range (160-240kHz)/200 kHz: 1000 ft (305 m) |
| CHIRP Sonar | Med Range (60-100kHz)/83 kHz: 1000 ft (305 m) |
| CHIRP Sonar | Low Range (40-60kHz)/50 kHz: 3000 ft (900 m) |
| Available Sonar Frequencies | Low/Mid/High CHIRP, 50/83/200 kHz Broadband, 455/800 kHz SideScan/DownScan imaging |
| Depth Alarm | Yes |
| Shallow Alarm | Yes |
| Temperature Readings | Yes |
| Transducer Type | Single 9-pin Connection; Multiple Transducer Selections from Lowrance® and Airmar® |
Environmental |
|
| Operating temperature range | 5°F to 131°F (-15°C to +55°C) |
| Storage temperature | 4°F to 140°F (-20°C to +60°C) |
| Waterproof rating | IPX6 and IPX7 |
Electrical |
|
| Supply voltage | 12 V DC (10 – 17 V DC min – max) |
| Recommended fuse rating | 3 A |
| Power consumption (maximum) | 28 W (2 A at 13.8 V DC) |
Display |
|
| Resolution | 800 x 480 pixels |
| Viewing angles in degrees | 50° top, 60° bottom, 70° left and right |
| Brightness | > 1200 nits |
| Touch screen | Multitouch |
Physical |
|
| Weight (display only) | 2.7 lbs. (1.2 kg) |
| Compass Safe Distance | 1.6 ft. (0.5 m) |
Interface/Connectivity |
|
| NMEA 2000® | 1 port (Micro-C connector) |
| Data card reader | 1x slot (microSD, SDXC) |
| Ethernet | 1 port, (5-pin Ethernet connector, 100Base-T) |
| Sonar | 1 port (9-pin connector) |
| WiFI Internal | 802.11b/g/n : No wireless networking between units |
| Bluetooth® | 4.0 with support for Bluetooth® Classic |
| GPS | 10Hz high speed update WAAS, MSAS, EGNOS, GLONASS |
Environmental |
|
| Storage Temperature | -22°F to 158°F (-30°C to 70°C) |
| Operating Temperature | 5°F to 131°F (-15°C to 55°C) |
| IP Class | IP67 |
Electrical |
|
| Power Supply | 12 / 24 V DC |
| Operating Voltage | 10.8 V DC – 31.2 V DC |
| Current Drain (Maximum) | 1.5A @ 13.8V |
| Reverse Polarity Protection | Yes |
| Fuse Rating | 3 A |
Physical |
|
| Weight | 4.12 lbs (1.86 kg) |
Environmental |
|
| Storage Temperature | -22°F to 158°F (-30°C to 70°C) |
| Water Temperature / Operating | 32°F to 95°F (0°C to 35°C) |
Physical |
|
| Weight | 2.67 lbs (1.21 kg) |
| Cable Length | 25 ft (7.62 m) |
Mounting Options |
|
| Trolling Motor Shaft Mount | Included |
| Trolling Motor Forward/Down Mount | Included |
| Trolling Motor Scout Mount | Included |
| Transom Mount | Sold Separately |
| Beam Angle | 18° x 135° |
| Max Depth/Range | 200ft (In Freshwater) |
| Frequency Range | 550 kHz – 1100 kHz |
