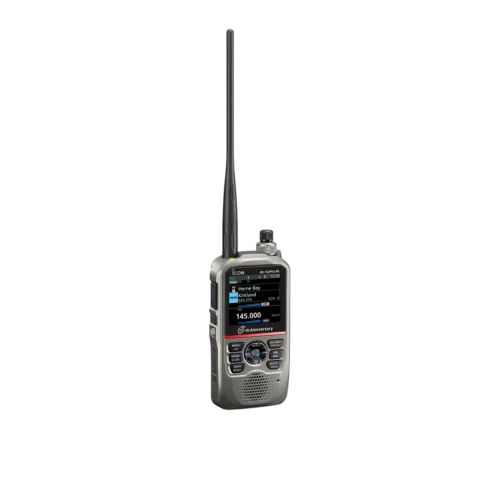

Icom ID-52A PLUS – 60th Anniversary Limited Edition
$1,050.00
Icom’s 60th Anniversary model features a bright, metallic-colored body and special packaging, including an exclusive hand strap engraved with Icom’s 60th anniversary logo.
Only 2,400 units are produced worldwide, therefore limited quantities are available!
Out of Stock (On Order)
- Description
- Additional information
- Specifications
- Package Includes
- Product Guides & Documents
- Accessories
Icom ID-52A PLUS 60th Anniversary Limited Edition Features
Luxurious Metallic Body Color
The body, including the volume knob, features a metallic paint reminiscent of titanium. This rich sophisticated color highlights the uniqueness of the 60th anniversary model. Additionally, the inclusion of our brand’s signature red as an accent creates an impression that is both high-quality and dynamic.
Unique 60th Anniversary Hand Strap
The radio comes with a specially designed hand strap, embossed with “60th Anniversary.” This elegant design adds a touch of exclusivity, making it a perfect addition to our 60th Anniversary Models. Made from durable synthetic leather, it is resistant to wear and tear, ensuring reliable use outdoors.
Special Packaging
The 60th Anniversary Model will be delivered in an exclusive, luxurious box featuring the 60th anniversary logo in elegant red foil embossing. This packaging brings you a special feeling when unboxing. This design is reserved solely for the 60th Anniversary Model, making it truly unique.
Icom ID-52A PLUS Features
The popular ID-52A D-STAR transceiver just gets more useful. Terminal mode and Access Point mode, which previously required a cable connection, can now connect to an Android™ device via Bluetooth® technology. In addition, dual operation of Terminal mode and Simplex/Repeater operations is now possible. Moreover, an industry standard USB Type-C™ port for convenient USB Type-C™ charging is newly adopted. Experience all the advantages with the ID-52A PLUS and enjoy stable long-distance communication using the internet connected D-STAR repeater network.
Worldwide Communication through the D-STAR Network
The ID-52A PLUS is a VHF/UHF dual bander with D-STAR and FM dual mode functions. The ID-52A PLUS supports conventional FM communications as well as D-STAR simplex, repeater, regional, and worldwide calls over the D-STAR Internet gateway. With the ID-52A PLUS, you can call a friend in another city, or even internationally through D-STAR repeaters, with digital clear audio. In addition, the ID-52A PLUS can send digital voice with data, text messages, GPS location information and pictures.
Share Picture Function – A Picture is Worth a Thousand Words
You can share pictures with other users and see received pictures on the color display (DV mode). Pictures taken on a smart device can be wirelessly transferred to the ID-52A PLUS through Bluetooth® connection. Enjoy sharing pictures together with voice messages.
The Share Picture function requires the optional picture utility software ST-4001A (on Google Play™), ST-4001I (on App Store) or ST-4001W (Download from Icom website) picture utility software. The ST-4001W requires a microSD card or a USB cable to transfer pictures.
DR (D-STAR Repeater) Function
The expanded DR (D-STAR Repeater) function makes D-STAR and FM repeater communication easier to use. Combined with the GPS function, you can make selection of a local repeater available with a couple of button pushes, based on your location. From this model, once you select the nearest repeater, you can choose other nearby repeaters simply by the dial operation. Additionally, the DR mode supports reflector linking controls.
Wireless Connection Via Bluetooth® with an Android™ Device Even When Using Terminal Mode and Access Point Mode
While the previous ID-52A required a cable connection, the ID-52A PLUS can now connect wirelessly to an Android™ device over Bluetooth® connection in the Terminal mode and Access Point mode. By connecting to an Android device with the RS-MS3A app, D-STAR communication is possible through a cellular phone. You can smoothly start Terminal mode and Access Point mode operation wirelessly even when you are going out. You can also operate these modes by connecting your ID-52A PLUS to a PC with the RS-MS3W software by a USB cable connected to the internet. When you are in areas with no D-STAR repeaters, create your own D-STAR Access Point to access the D-STAR network virtually anywhere. This enables another D-STAR radio user to communicate through the D-STAR network over the air.
*Terminal mode and Access Point mode are available only where the repeater system supports these modes (compatible with RS-RP3 Gateway software).
*The RS-MS3W optional software (Download from Icom website) is required to be installed in the PC. The RS-MS3A optional application software is required to be installed in the Android™ device (Download on Google Play™). Use the Bluetooth® function or a USB cable to connect to the Android™ device. Type-A to Type-C: OPC-2480 (supplied with the transceiver). Type-C to Type-C: User supplied. Type-C to Micro B: User supplied.
*Terminal and Access Point modes are compatible with the Icom RS-RP3 Gateway software. If your D-STAR repeater is running G1 or G2 software, ask the repeater administrator to contact the local Icom Distributor to upgrade the software.
*You need an Internet connection with an IPv4 Global IP address. If you use a cellular phone, you need an IPv4 Global IP address assigned to your Android™ device.
2.3″ Large Color Display
The ID-52A PLUS is equipped with a color display. The display size is 2.3 inches, 320 × 280 pixels to achieve excellent viewability. The display background color is selectable from black and white.
Bluetooth® Enabled Features

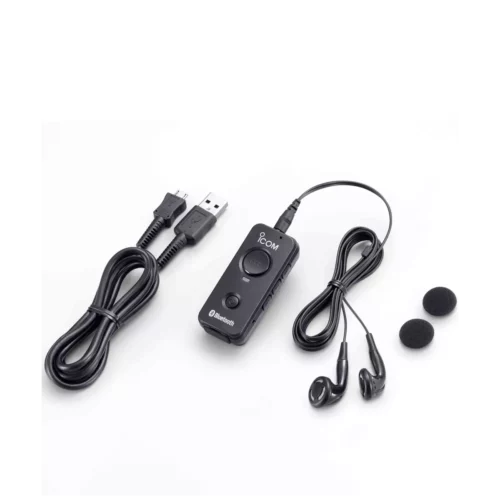

The optional VS-3 Bluetooth® headset enables hands-free wireless operation. In addition to the PTT and volume up/down buttons, the VS-3 has 3 programmable buttons that can be assigned functions to improve operability and mobility.
You can easily connect to a smart device through Bluetooth®. The Remote Control software, RS-MS1A for Android™ device or RS-MS1I for iOS™ device can wirelessly control the ID-52A PLUS to change operating frequencies and other settings.
Efficient Operation with Waterfall Display
The waterfall display shows not only the existence of signals but also the changes of signal level in chronological order. You will have an overview of the band conditions in more detail, including busy frequencies currently used, or open frequencies not used. The band scope mode is selectable from center mode, Fixed mode and Fixed scroll mode.
Chargeable with an USB Type-C™ Cable
The ID-52A PLUS features a USB Type-C™ port which is widely used in the industry, enabling USB charging. Additionally, it is a multifunctional USB port that supports PC programming, reading, and writing content to microSD cards, Terminal/Access Point mode compatibility, and CI-V control.
*A USB adapter is required for charging.
*USB PD is not supported.
V/V, U/U, V/U Dualwatch Including DV/DV Mode
The Dualwatch function monitors the VHF/VHF, UHF/UHF and VHF/UHF bands simultaneously*. You can quickly respond to a call from the Main and Sub bands. Two DV signals can be decoded at the same time. In addition, dual operation of Terminal mode and Simplex/Repeater operations is now possible. While operating in Terminal mode, you can quickly respond by switching to regular RF operations.
*AM/AM mode Dualwatch is not possible. AM signals can be received on only the Main VFO (A band.)
VHF/UHF Airband and FM Broadcast Receiver
Airband reception is expanded from VHF to UHF military airband (225 ~ 374.995 MHz). FM broadcast stations can be listened to while using the Dualwatch function.
Integrated GPS Receiver
D-PRS mode is supported by the internal GPS receiver for sending your location and showing received station location, distance, and direction from your current location. In addition to your location, the ID-52A PLUS displays your current Grid Square information. The GPS position data can be used for Position Auto Reply, Near Repeater Search, and GPS log functions.
microSD Card Slot
You can store QSO Recording, TX Voice Memory, pictures, QSOs and GPS log data. Firmware upgrades, Repeater lists and other personal settings onto a microSD card (up to 32 GB). This can be loaded into the ID-52A PLUS radio.
IPX7 Waterproof and Tough Construction
With Icom’s pioneering IPX7 waterproofing and pro-grade construction, the ID-52A PLUS is perfect for your shack or operating in harsh outdoor environments.
Other Features
- 750 mW loud audio output power
- DV fast data mode uses data in place of voice frames
- QSO log in CSV data format
- Accessories for the ID-52A/ID-50A/ID-51A/ID-31A such as battery packs and microphones can be used
- DV/FM near repeater search function
- Voice recorder function
- External DC power jack
- Weather channel receive
| Weight | 1.7182 lbs |
|---|---|
| Dimensions | 8.5 × 7.75 × 3 in |
| Brand | ICOM |
Specifications
Icom ID-52A PLUS 60th Anniversary Limited Edition Specs
GENERAL
| Frequency coverage (Unit: MHz) |
Version | Transmit | Receiver | Broadcast band |
|---|---|---|---|---|
| USA | 144 ~ 148, 430 ~ 450* |
(A) 108 ~ 174, 225 ~ 479* (B) 137 ~ 174, 375 ~ 479* |
88.0 ~ 108.0 | |
| (A) means A band, (B) means B band. * Guaranteed range: 144 ~ 148, 440 ~ 450 MHz | ||||
| Type of emission | F2D, F3E, F7W | |||
| Mode | DV, FM, FM-N, WFM*, AM*, AM-N* (* WFM, AM and AM-N are Rx only) |
|||
| Number of memory channels | 1000 memory channels, 4 call channels, 50 scan edges, 100 skip channels, 500 broadcast stations, 2500 repeaters, 300 call signs and 300 GPS memories |
|||
| Frequency resolution | 5, 6.25, 8.33*, 10, 12.5, 15, 20, 25, 30, 50, 100, 125 and 200 kHz * For only 108.000 MHz ~ 136.991 MHz. |
|||
| Operating temperature range | –20℃ ~ +60℃, –4°F ~ +140°F | |||
| Frequency stability | ±2.5 ppm (–20℃ ~ +60℃ on the basis of 25℃) | |||
| Antenna impedance | 50 Ω (SMA) | |||
| Power supply requirement |

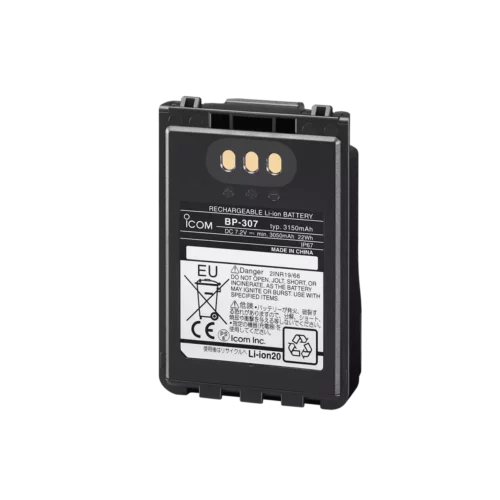

Battery pack | 7.4 V DC (with BP-272), 7.2 V DC (with BP-307) | ||
| External DC | 10 ~ 16 V DC | |||
| Current drain (at 7.4 V DC) |
Tx High | Less than 2.5 A | ||
| Rx AF Max. | Less than 450 mA (DV), Less than 400 mA (FM, FM-N) (Internal SP, 8 Ω) |
|||
| Dimensions (W × H × D) (projections not included) |
61.1 × 121.6 × 29.7 mm, 2.4 × 4.8 × 1.2 in (main unit)
61.1 × 121.6 × 34.8 mm, 2.4 × 4.8 × 1.4 in (with BP-272) |
|||
| Weight (approx.) | 330 g, 11.6 oz (with BP-272 & antenna) | |||
| Bluetooth® | Version 5.3 | |||
TRANSMITTER
| Modulation system | DV | GMSK reactance modulation |
|---|---|---|
| FM, FM-N | FM reactance modulation | |
| Output power (at 7.4 V DC) | 5 W, 2.5 W, 1.0 W, 0.5 W, 0.1 W (High, Mid, Low2, Low1, S-Low) |
|
| Spurious emissions | Less than –60 dBc (High, Mid), Less than –13 dBm (Low2, Low1, S-Low) |
|
| Max. frequency deviation | ±5.0/2.5 kHz (FM/FM-N) | |
| Ext. Mic impedance | 2.2 kΩ | |
RECEIVER
| Sensitivity | DV | Less than 0.2 μV (at 1% BER) | |||
|---|---|---|---|---|---|
| FM, FM-N | Less than 0.18 μV (at 12 dB SINAD) | ||||
| Selectivity | More than 50 dB (DV, FM-N), More than 55 dB (FM) | ||||
| Spurious rejection | More than 60 dB | ||||
| Audio output power | Internal SP | More than 750 mW (8 Ω load) | |||
| External SP | More than 200 mW (8 Ω load) | ||||
| Receiver sensitivity (Except amateur bands) | |||||
| Frequency range (Unit: MHz) |
FM/FM-N/WFM （12 dB SINAD） | AM/AM-N （10 dB S/N） |
|||
| BC band | 88.000 ~ 108.000 | Less than 1 μV (WFM) | – | ||
| A band | 108.000 ~ 136.991 | – | Less than 1 μV | ||
| 137.000 ~ 142.000 | Less than 0.18 μV | Less than 1 μV | |||
| 142.005 ~ 148.000 | Less than 0.18 μV | – | |||
| 148.005 ~ 174.000 | Less than 0.32 μV | – | |||
| 225.000 ~ 259.995 | Less than 0.56 μV | Less than 1.8 μV* | |||
| 260.000 ~ 354.995 | Less than 0.32 μV | Less than 1 μV* | |||
| 355.000 ~ 374.995 | Less than 0.5 μV | Less than 1.8 μV* | |||
| 375.000 ~ 399.995 | Less than 0.5 μV | – | |||
| 400.000 ~ 479.000 | Less than 0.32 μV | – | |||
| B band | 137.000 ~ 148.000 | Less than 0.18 μV | – | ||
| 148.005 ~ 174.000 | Less than 0.32 μV | – | |||
| 375.000 ~ 399.995 | Less than 0.5 μV | – | |||
| 400.000 ~ 479.000 | Less than 0.32 μV | – | |||
Package Includes
In the Box:
- ID-52A Plus radio with Luxurious Metallic Body Color

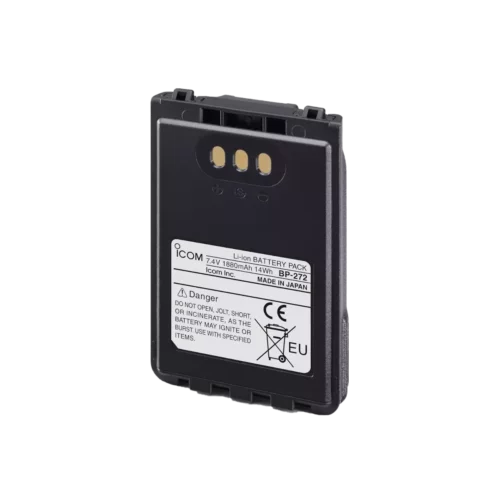

- Battery pack, BP-272
- USB Type-C™ cable, OPC-2480
- Antenna, FA-S270C

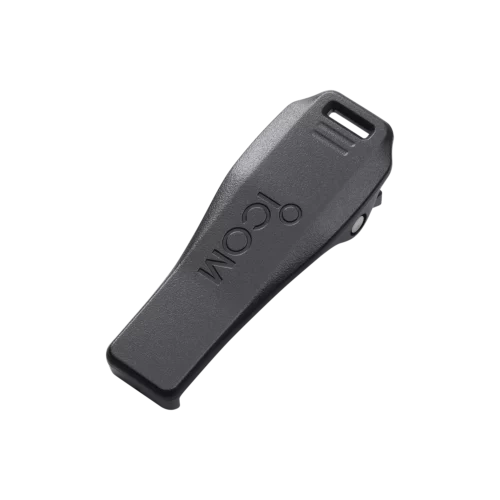

- Belt clip, MB-127
- Exclusive hand strap engraved with Icom’s 60th anniversary logo
- Special Packaging with an exclusive, luxurious box featuring the 60th anniversary logo in elegant red foil embossing
