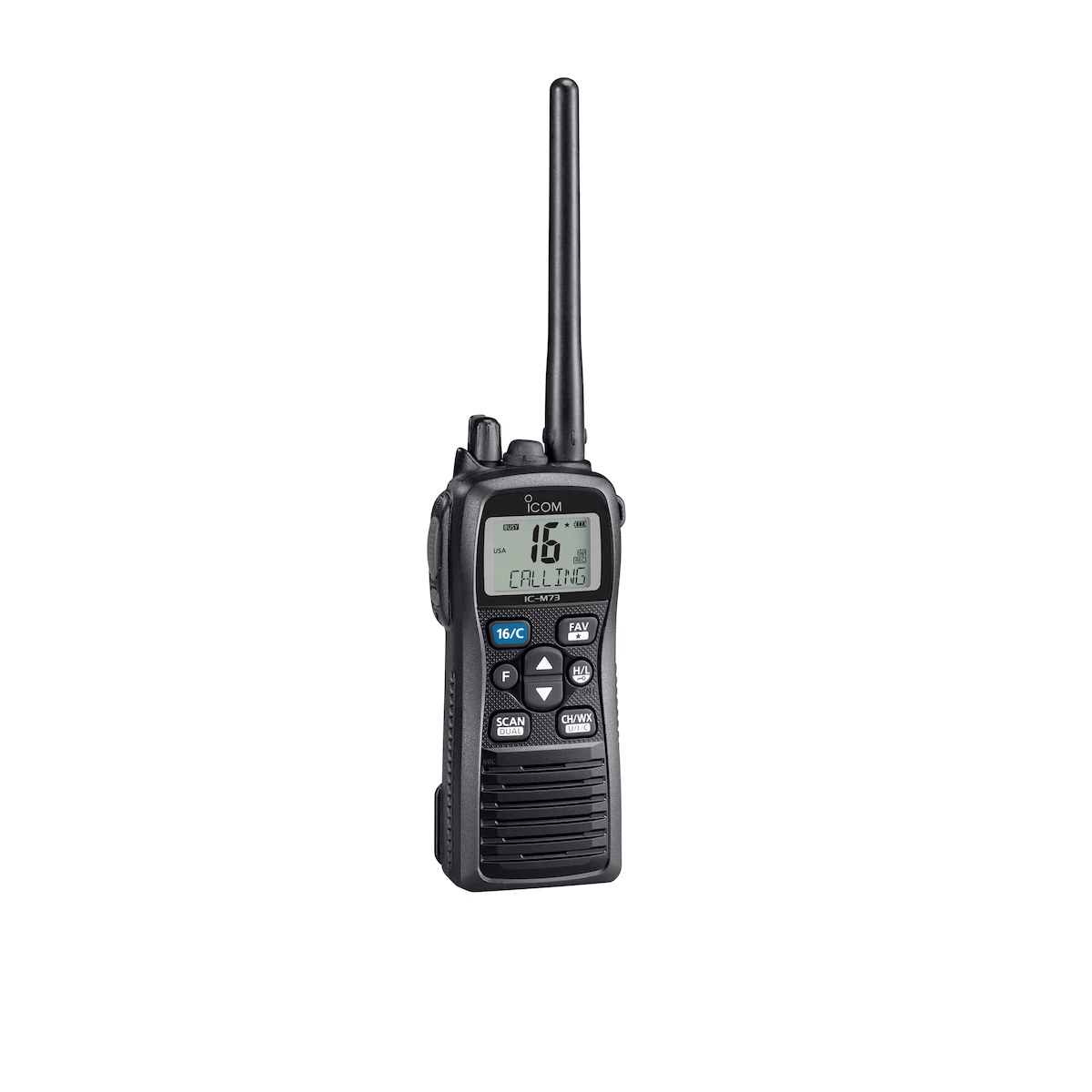

Icom IC-M73 Marine Handheld Radio
$319.99
On sale until February 28, 2025
Handheld Marine Band Transceiver
In stock
- Description
- Additional information
- Product Specification
- Package Includes
- Product Guides & Documentation
- Accessories
Slim, Stylish, Powerful VHF with Professional Features
- Bass Boost Function
- 700mW Loud Audio
- 6W RF Output Power
- Auto power save function
- IPX8 Submersible Plus™ Waterproofing
- Slim, Hourglass Body Wide Viewing Angle LCD
- AquaQuake™ water draining function
- Dual/Tri-Watch function for monitoring Channel 16 and/or call channel
- 4 level battery indicator
- Optional waterproof speaker-microphones, HM-167 and HM-202

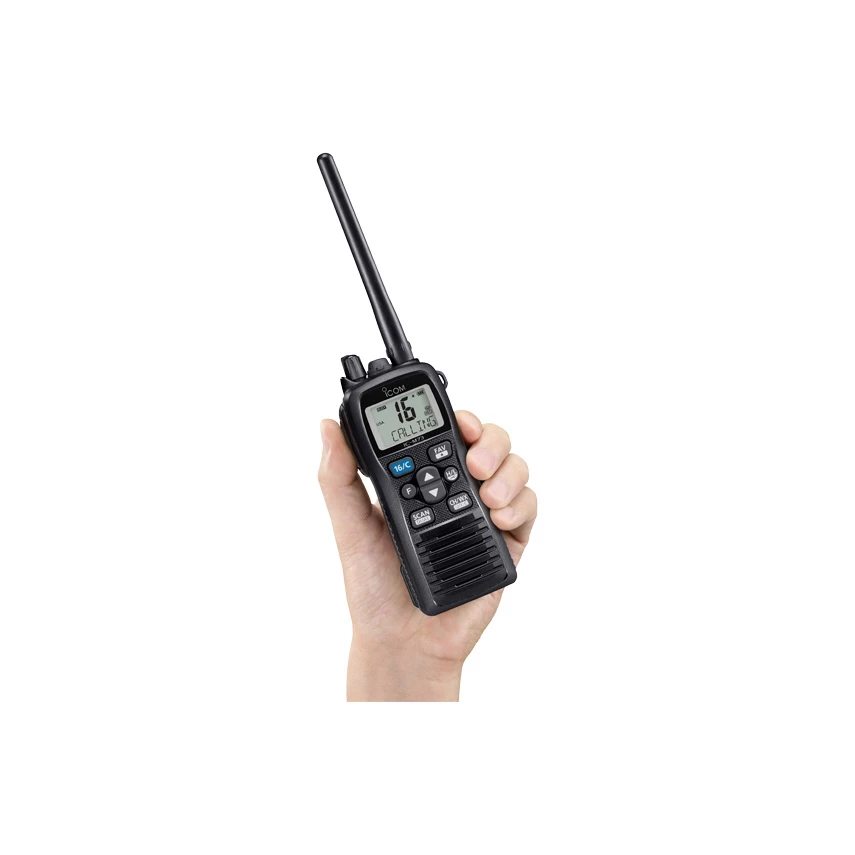

Slim, hourglass body and wide viewing angle LCD
The IC-M73 has a stylish, ergonomic design. A durable and rugged body provides for user-friendly operation and long life. A wide viewing angle, high intensity LCD offers bright, easy to read characters.
IPX8 Submersible Plus™
The IC-M73 continues to offer Icom’s best waterproof protection. The radio has been tested to survive after being submersed in 1.5m (4.9ft) depth of water for 30 minutes.
700mW Loud audio
The IC-M73 uses a BTL (bridge-tied load) amplifier that doubles the audio output. Its internal speaker delivers a loud 700mW audio output with clear sound.
6W RF Output power
The IC-M73’s 6 Watts of transmit power will provide extended communication range for the user. A large capacity Lithium-Ion battery allows for 16 hours of operation, under normal conditions*. * Typical operation with 5:5:90 duty ratio. 18 hours for basic version.
Additional Features:
- Bass Boost Function
- AquaQuake™ water draining function
- Dual/Tri-Watch function for monitoring Channel 16 and/or call channel
- 4 level battery indicator
- Favorite channel and tag scan functions
- Rapid desktop charger, BC-210, and cigarette lighter cable, CP-25H, are supplied
- Optional waterproof speaker-microphones, HM-167 and HM-202
- Auto power save function
| Weight | 2.07 lbs |
|---|---|
| Dimensions | 9 × 7.5 × 3.5 in |
| Brand | ICOM |
Product Specification
Icom IC-M73 Specifications: |
|
|
General
|
|
|
Frequency range
|
Tx: 156.025–157.425MHz
Rx: 156.050–163.275MHz |
|
Usable channel groups
|
INT, USA, CAN, WX channels
|
|
Type of emission
|
16K0G3E (FM)
|
|
Operating temperature
|
–20°C to +60°C ( –4°F to +140°F)
|
|
Antenna impedance
|
50Ω
|
|
Current drain (at 7.4V DC)
|
Tx 6W output: 1.5A Rx Max. audio (Int SP/Ext SP: 450mA/250mA |
|
Dimensions (projections not incl.)
|
52.5Ă—125Ă—30 mm (2.07Ă—4.92Ă—1.18 in) |
|
Weight
|
320g; 11.3oz (With BP-245N, FA-S64V, MB-103)
|
|
Transmitter
|
|
|
Output power (Hi/Mid/Low)
|
6W/3W/1W
|
|
Max. frequency deviation
|
±5kHz
|
|
Frequency stability
|
±10ppm
|
|
Spurious emissions
|
: –68dBc typ
|
|
Adjacent channel power
|
70dB
|
|
Audio harmonic distortion
|
Less than 10% (at 60% dev.)
|
|
Residual modulation
|
40dB
|
|
Receiver
|
|
|
Sensitivity (at 12dB SINAD)
|
0.22µV typ. (at 12dB SINAD)
|
|
Squelch sensitivity
|
0.35µV typ. (at threshold)
|
|
Adjacent channel selectivity
|
70dB typ
|
|
Spurious response
|
70dB typ
|
|
Intermodulation rejection
|
70dB typ
|
|
Hum and noise ratio
|
40dB
|
|
Audio output power (at 10% distortion, 8Ω load)
|
700mW typ. (Internal SP)
350mW typ. (External SP) |
Package Includes
Package Includes:
- IC-M73
- Cigarette lighter cable, CP-25H
- Belt clip, MB-103
- Hand strap
- AC adapter
- Battery pack, BP-245N
- Antenna, FA-S64V
