Icom IC-2730A VHF/UHF Dual Band Transceiver

Name: Icom IC-2730A VHF/UHF Dual Band Transceiver - GPSCentral.ca
Brand: ICOM
SKU: 8865
Availability: InStock

MPN: IC-2730A

$475.00

On sale until June 30, 2023

The IC-2730A is an easy to use, dual band mobile with simultaneous receive as 50 Watts RF output on both VHF and UHF.

Out of Stock (On Order)

SKU: 8865 Categories: VHF/ UHF Radios, On Sale

50 watts of output on VHF and UHF

The IC-2730A provides VHF/VHF, UHF/UHF simultaneous receive capability as well as VHF/UHF receive. Main dials, volume, squelch knobs and primal buttons are symmetrically laid out for each band.

VHF/VHF, UHF/UHF simultaneous receive

The IC-2730A provides VHF/VHF, UHF/UHF simultaneous receive capability as well as VHF/UHF receive. Main dials, volume, squelch knobs and primal buttons are symmetrically laid out for each band.

Optional VS-3 Bluetooth® headset

The optional VS-3 Bluetooth® headset can wirelessly control the IC-2730A with three programmable and a PTT button. It also provides VOX operation for hands-free communication. (Optional UT-133 Bluetooth® unit must be installed in the IC-2730A.)

Easy-to-See large white backlight LCD

The display size of the IC-2730A is 1.5 times larger its predecessor, the IC-2720H. Frequency display and channel names are larger, and the white backlight provides higher contrast.

Easy controller mounting with the optional MBF-1

The combination of the optional MBF-1 suction cup mounting base and MBA-5 controller bracket provides easy tilt and swivel adjustments. The large suction cup can be mounted on flat surfaces and can be removed easily.

50 Watts of output on VHF and UHF

The IC-2730A employs a durable PA module and delivers 50 watts of high power operation on both VHF and UHF bands.

Built-in 50 CTCSS and 104 DTCS tones with split tone function

The CTCSS and DTCS tones are built-in for quiet stand-by and repeater access. The split tone function allows you to set CTCSS/ DTCS tones separately for repeater uplink and downlink on a per channel basis.

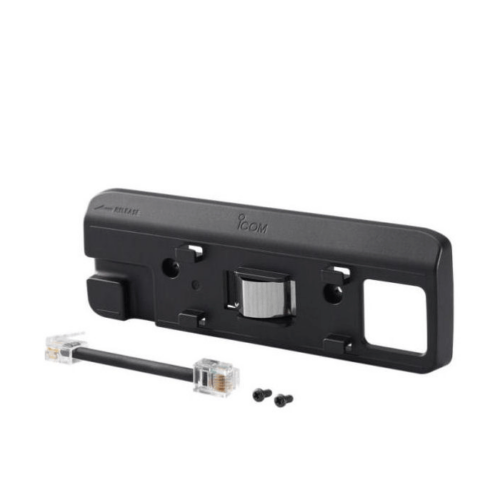

Controller attachment to the main Unit with optional MBA-4

With the optional MBA-4 combination bracket, the controller can be attached to the main unit. The microphone jacks are mounted on both the controller and main unit.

Wideband receiver

The IC-2730A covers 118–174 and 375– 550MHz. You will be able to listen to aviation, marine, weather channels and other utility communications.

More great features

HM-207 remote control microphone
CS-2730 Free download PC programming software
Versatile scanning capability
Squelch delay and squelch attenuator
Sub band auto mute function
Sub band busy beep function
Auto repeater functions (Depending on the transceiver version)
Auto power off
Time-out-timer
16 DTMF auto dial memories
Weather channel receive with weather alert (USA version only)
CI-V remote control capability (through the OPC-478UC)

Weight	4.98 lbs
Dimensions	10 × 8.25 × 4.75 in
Brand	ICOM
Manufacturer Part Number	IC-2730A

Product Specification

Icom IC-2730A Specifications:

General

Frequency Coverage*1

Receive

118–174, 375–550MHz*1
*1 Guaranteed range, 144–148, 430–450MHz,

Transmit

144–148, 430–450MHz

Mode

F2D, F3E

Number of channels

1052 channels (including 50 scan edges and 2 Call)

Antenna impedance

50Ω (SO-239)

Frequency stability

±3ppm (–10°C to +60°)

Power supply requirement

13.8V DC ±15%

Current drain (at 7.4V DC) (approx.)

Transmit: 13A
Receive: 1.8A/1.2A (Max. audio/Stand-by)

Operating temperature range

–10°C to +60°C; 14°F to +140°F

Dimensions (W×H×D)

Main unit 150×40×151 mm; 5.91×1.57×5.94 in
Controller 150×50×27.2 mm; 5.91×1.97×1.07 in

Weight (approx.)

Main unit 1.2 kg; 2.65 lb Controller 140 g; 4.94 oz

Transmitter

Output power (at 13.8V DC)
TPE version

50W, 15W, 5W
25W, 15W, 5W

Max. frequency deviation

±5.0kHz/±2.5kHz (W/N)

Spurious emissions

Less than –60dBc

Microphone impedance

60Ω (8-pin modular)

Receiver

Intermediate frequency

A band: 38.85MHz/450kHz
B band: 46.35MHz/450kHz

Sensitivity (at 12dB SINAD)

Less than –15dBμ

Selectivity

More than 60dB/55dB (W/N)

Spurious response rejection

A band: More than 60dB/55dB (V/U)
B band:
More than 60dB/60dB (V/U)

Audio output power

More than 2W (10% dist. 8Ω)

External speaker connector

2-conductor 3.5(d) mm 1/8″/4Ω

Receiver sensitivity
FM/FM-N (12dB SINAD)

137–159.995MHz*
375–399.995MHz
500–550.000MHz
160–174.000MHz
400–499.995MHz*AM/AM-N (10dB S/N)
118–136.991MHz
*Except amateur bands.

–10dBμ
–5dBμ
–5dBμ
–5dBμ
–10dBμ0dBμ

Package Includes

Package Includes:

IC-2730A
Hand microphone, HM-207
Controller cable, OPC-837
Microphone hanger
DC power cable, OPC-345
Spare fuses
Mounting brackets are NOT included from Icom
» MBA-4 mounts the front panel to the radio body
» MBA-5 mounts the front panel to the MBF1 Suction Cup

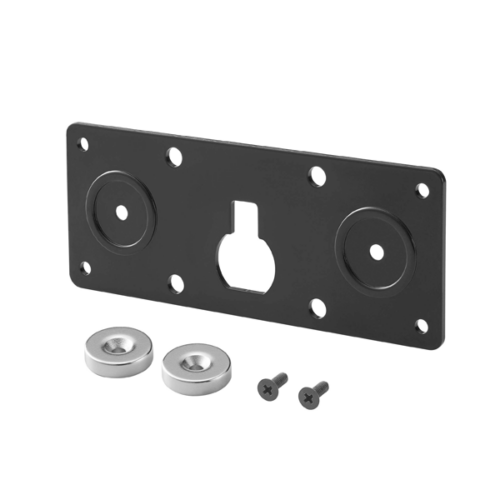

» MBF-4 is the bracket for the radio body
