$350.00
In stock

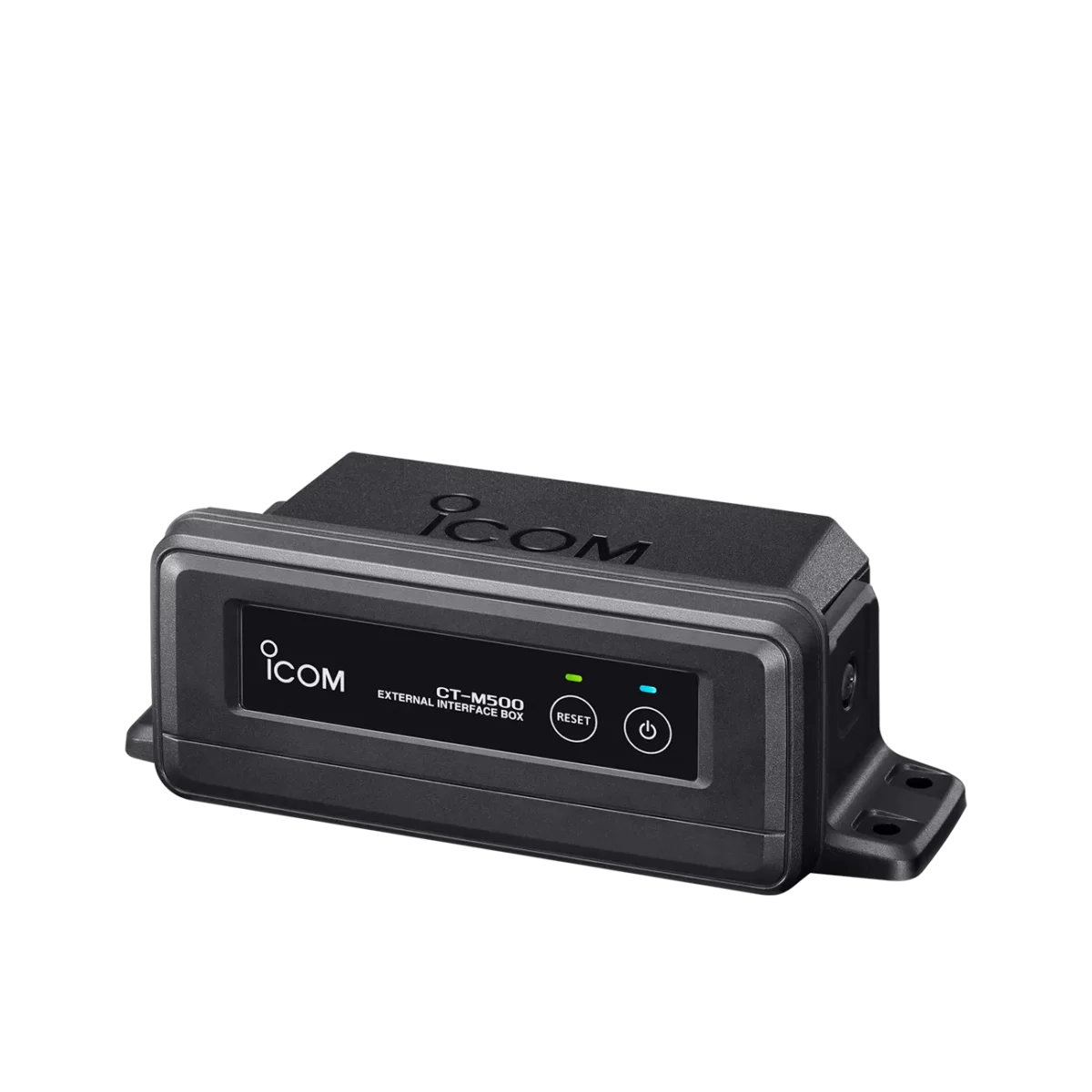

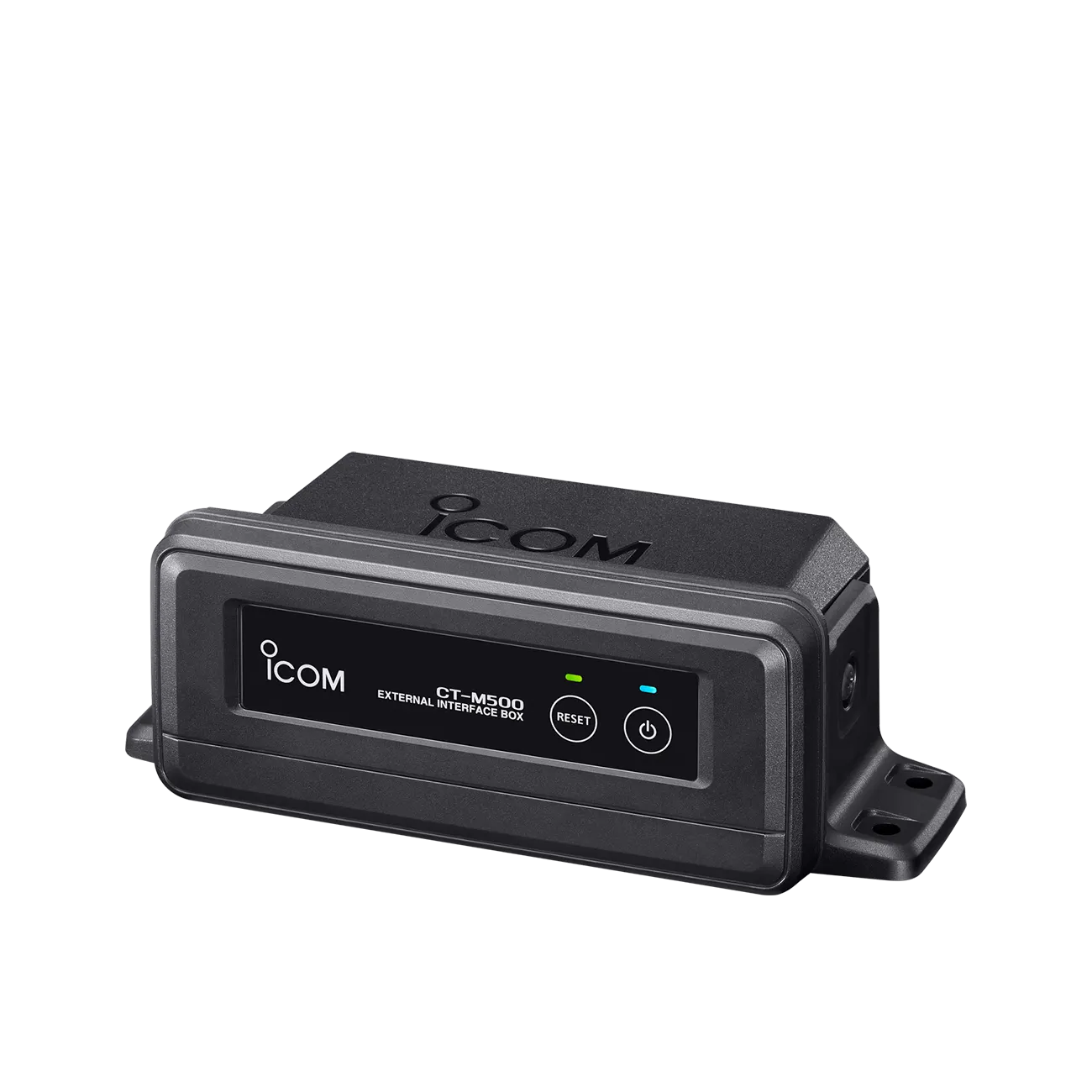

Trying to connect your Icom M510 VHF radio to your NMEA 2000 network on your boat? With Icom’s CT-M500 interface box you simply connect the CT-M500 to your NMEA 2000 network and the interface box will wirelessly share NMEA data with your M510. The CT-M500 provides flexibility on placement and also allows access to the two-way hailer/PA functions when paired with the option SP-37 horn speaker.
| AF POWER (at 13.8 V) | 20.0 W min ( 10% distortion) RX_HAILER 25.0 W min ( 30% distortion) HAILER |
|---|---|
| Operating temperature range | -20 ℃ to +60 ℃, -4℉ to 140℉ |
| Power supply requirement | 11.7 to 15.9 V DC (Negative ground) |
| Current drain (at 13.8 V) | 3.5 A |
| Dimensions (approx.) (W x H x D, Projections not included) |
156.5 x 67.6 x 82.1 mm, 6.2 x 2.7 x 3.2 inch |
| Weight (approx.) | 430 g, 15.2 oz |
| Waterproof | IPX7 |
| Weight | 1.73 lbs |
|---|---|
| Dimensions | 8.75 × 8 × 3 in |
| Brand | ICOM |
