Icom BC-202IP3L Rapid Charger

MPN: BC-202IP3L#12

$85.00

Icom Rapid Charger IP Systems

Out of Stock (On Order)

SKU: 15022 Category:

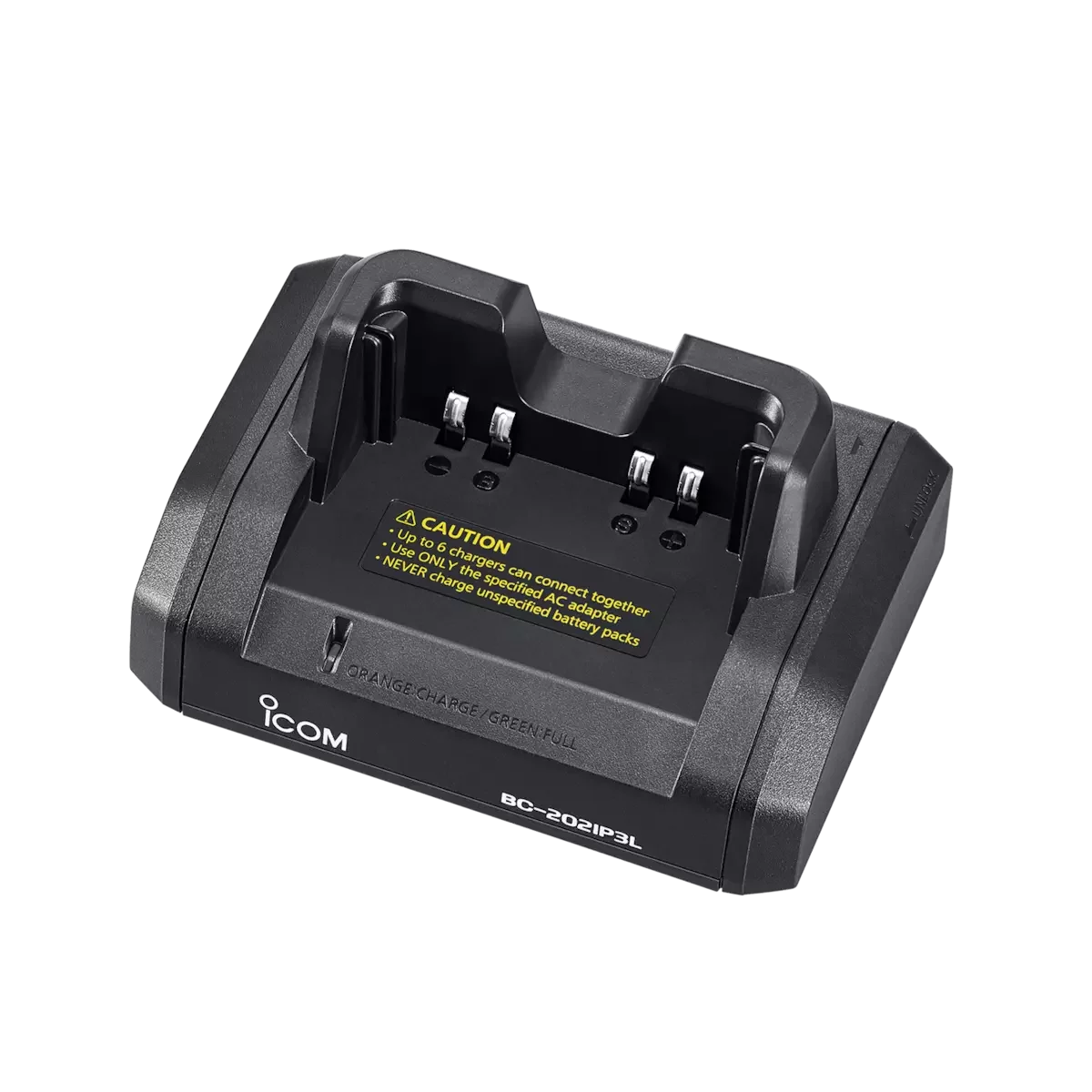

The BC-202IP3L is a multi-connectable rapid charger for Icom’s range of IP/LTE radios and selected Amateur radio products.

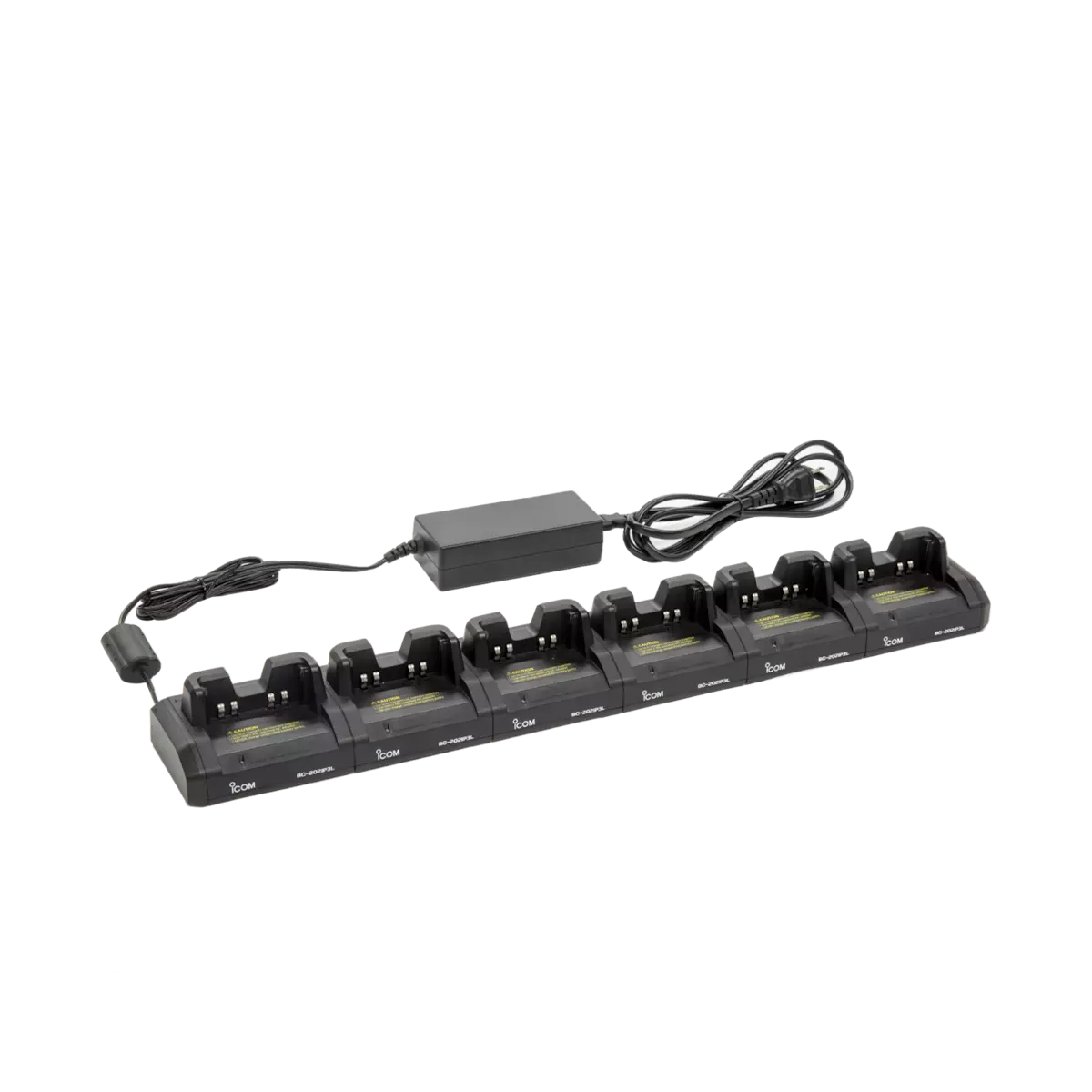

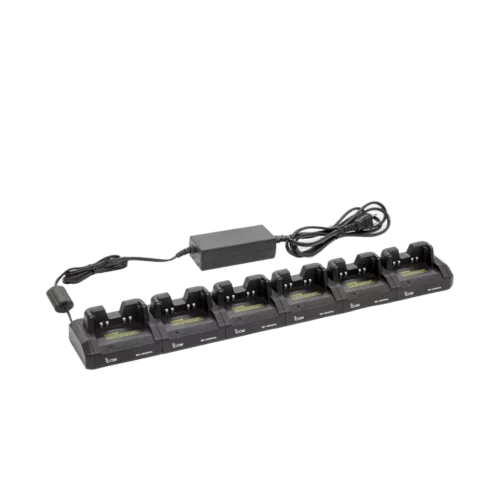

The BC-202IP3L charging pod can not only be used to charge one radio, it can also be connected to form a multi charger with a combination of 2, 3, 4, 5 or 6 pods. By simply sliding off the sides of each pod, you can slot them together in a daisy chain via pin connectors on each charger providing a strong, sturdy product.

The BC-202IP3L allows users to quickly charge the BP-271, BP-272 lithium-ion batteries and the new BP-307 large high capacity 7.2V / 3350mAh (typ.) li-Ion battery pack.

Transceiver can be turned ON for receiving while charging.

*Use the BC-123S (Straight plug version) for single unit. When charging two or more, the BC-228 AC adapter must be used.

Weight 0.37 lbs
Dimensions 5 × 4 × 2.75 in
Brand

ICOM

Specifications

Charge Current 675 ｍＡ±10 ％ (at rapid charging)
Power Supply Voltage 12.0 ー 15.0 V DC
Operating temperature range +10℃～+40℃
Dimensions

(W x H x D)

 Single unit: 106.5 x 52.5 x 78.0 mm;  4.2 x 2.1 x 3.1 in

6-unit connected:  542.0 x 52.5 x 78.0 mm;  21.3 x 2.1 x 3.1 in

(Projections are not included.)
Weight (Approx.)  120 g;  (AC adapter is not included.)
Charge Timer 6.3 Hours (at rapid charging)
Current Drain Less than 0.8 A (Single unit, at 12.0 V DC)
