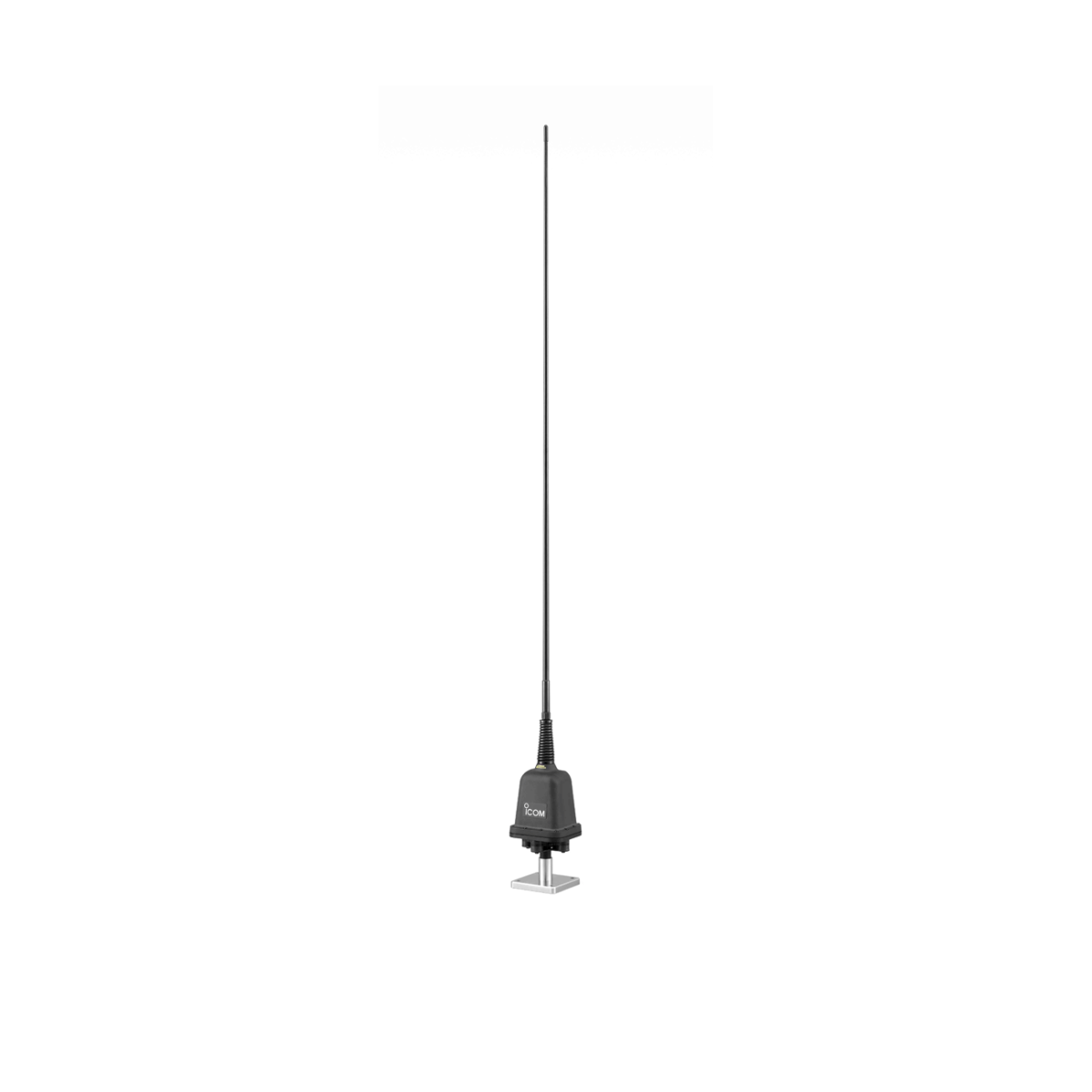

Icom AH-740 Relay-Driven Compact Antenna
MPN: AH-740
$2,160.00
Relay-driven compact automatic tuning antenna.
Out of Stock (On Order)
- Relay-driven compact automatic tuning antenna
- Compact and lightweight (3.5kg)
- 150mS typical high speed tuning (while memory tuning)
- Low power consumption (0.4A typical)
- Requires OPC-2321 Control Cable
Accessories
Radio AccessoriesOptional Accessories …
$155.00
On backorder
Specifications
Icom AH-740 Specifications | |
Frequency coverage With 1.54m whip antenna With AH-5NV | 2.5–29.9999MHz 2.2–29.9999MHz |
Output power rating | SSB/DATA: 125W PEP |
VSWR With 1.54m whip antenna With AH-5NV | 1.5:1 typical (50Ω) 1.5:1 typical (50Ω) |
Tuning speed New channel Memory tune | 2–3 S typical 150 mS typical |
Number of memory channels | 45 channels |
Operating temperature | −40°C to +70°C; −40°F to +158°F |
Power supply requirement | 13.8V DC (10.8–15.87V) |
Power consumption | 0.4A typical |
Tune power | 5–15W PEP, Rated 10W PEP |
Dimensions (W×H×D) (Projections not included)Height (with whip + spring) | 238×145×160 mm; 9.37×5.71×6.3 in (Base unit) 1909 mm; 75.16 in |
Weight (approx.) | 3.5kg; 7.7lb |
Mounting | M16×45mm |
Environmental test | MIL-STD-810-G |
IP Rating | IP 55 dust-protection and water jet resistance |
Supplied accessories | 6m; 19.7ft control cable and 6m; 19.7ft coaxial cable |
* Maximum 6 minute continuous transmission at 35°C.
