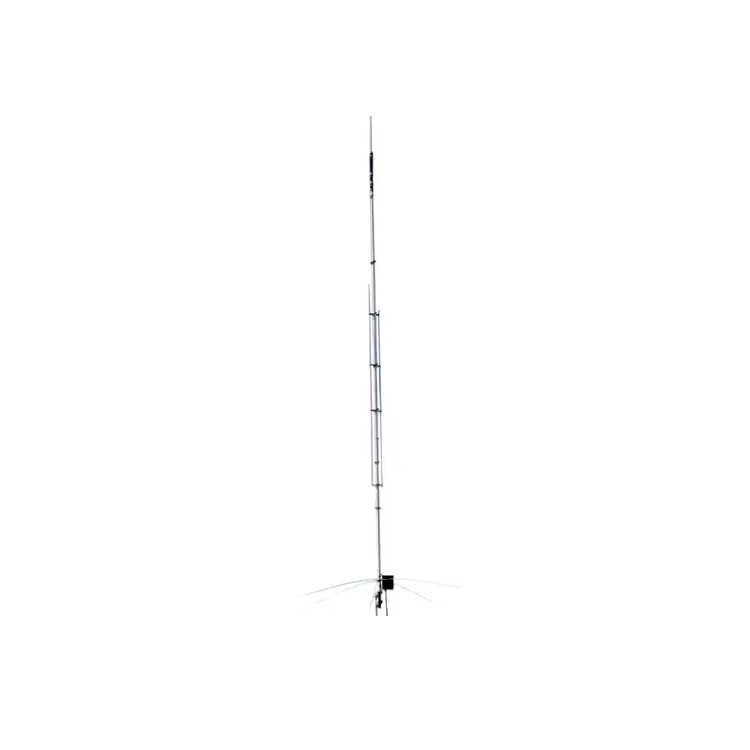

Hy-Gain AV-620 HF Vertical Antenna
MPN: AV-620
$910.00
The AV-620 covers all bands 6 through 20 Meters with no traps, no coils, no radials yielding an uncompromised signal across all bands.
Out of Stock (On Order)
Get notified when this product is back in stock
- Description
- Additional information
- Product Specifications
- Product Guides & Documentation
- Accessories
Hy-Gains new AV-620 Patriot HF vertical is the best built, best performing and best priced multiband vertical available today. Make full use of you sunspot cycle with the Patriots low angle signal. The AV-620 covers all bands 6 through 20 Meters with no traps, no coils, no radials yielding an uncompromised signal across all bands.
-
No Ground or Radials Needed
- Effective counterpoise replaces radials
- End fed with broadband matching unit
-
Automatic Bandswitching
- Single coax cable feed
- Each band is individually tunable
- Wide VSWR bandwidth
-
Sleek and low-profile
- Low wind surface area
- Small area required for mounting
- Mounts easily on decks, roofs, and patios
-
Built to Last
- High wind survival
- Matching unit made from all Teflon(R) insulated wire
-
Hy-Gain Warranty
- Two year limited warranty
- All replacement parts in stock
| Weight | 19 lbs |
|---|---|
| Dimensions | 85 × 7.5 × 5.75 in |
| Brand | Hy-Gain |
Product Specifications
AV-620 Specifications |
|
| Bands Covered: | 6, 10, 15, 17, and 20 Meters |
2:1 VSWR Bandwidth |
|
| 20 Meter: | 500 KHz |
| 17 Meter: | 500 KHz |
| 15 Meter: | 500 KHz |
| 12 Meter: | 500 KHz |
| 10 Meter: | 1500 KHz |
| 6 Meter: | 2000 KHz |
| VSWR at resonance (typical): | 1.5:1 |
| Power Handling (Watts output): key down 2 minutes |
1500W |
| Vertical Radiation Angle: | 17 degrees |
| Horizontal Radiation Angle: | 360 degrees |
| Height: | 22.5 feet |
| Weight: | 10.5 pounds |
| Wind surface area: | 2.4 square feet |
| Wind Survival: | 80 MPH |
