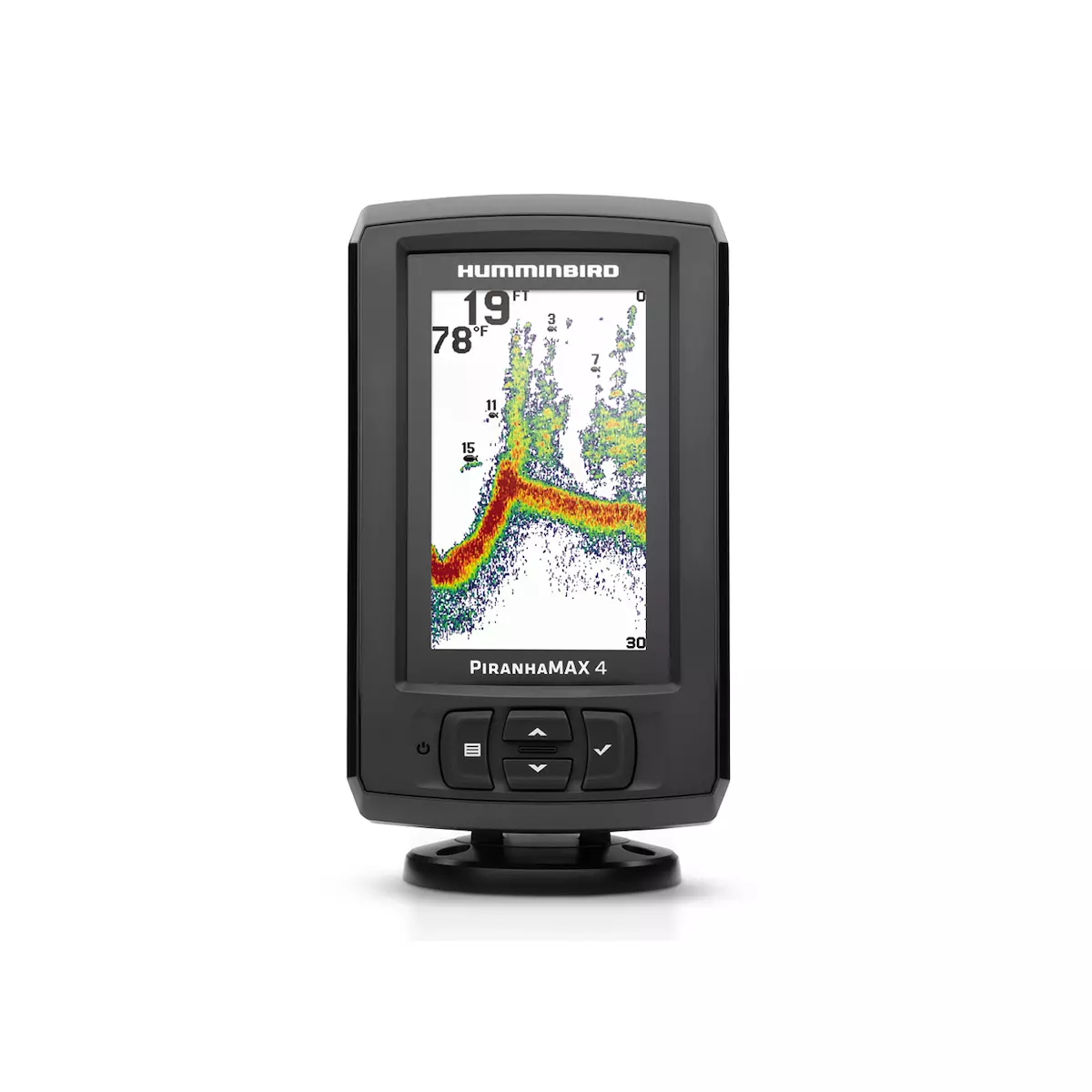

Humminbird PiranhaMAX 4
MPN: 410150-1
$149.99
Out of Stock (On Order)
Get notified when this product is back in stock
- Description
- Additional information
- Product Specifications
- Product Information & Documentation
- Accessories
With modern styling and a larger 4.3″ color LCD, the PiranhaMAX™ 4 will give you a fresh perspective on what’s below your boat. Thanks to a redesigned, even easier-to-use interface, Fish ID+™, fish alarms, depth alarms and zoom has never been simpler. Feature for feature, it packs a technological chomp that no fish finder in its class can match.
Features:
- Dual Beam Sonar: Choose from a narrow and a wide beam for great detail or a generous coverage area, helping you identify fish, structure and contours.
- Tilt and Swivel Mount: Quickly adjust your viewing area angle.
| Weight | 2.27 lbs |
|---|---|
| Dimensions | 7.75 × 3.5 × 11.5 in |
Product Specifications
|
Humminbird PiranhaMAX 4 Specifications |
|
|
Display Size – Diagonal
|
4.3″
|
|
Display Pixel Matrix
|
272H x 480V
|
|
Sonar-Standard
|
Dual Beam
|
|
Sonar-Coverage
|
28° & 16° @ -10dB
|
|
Sonar-Frequencies Supported
|
200/455kHz
|
|
Depth-Sonar
|
320 ft (20) 455 kHz, 600 ft (20) 200 kHz
|
|
Depth-Down Imaging
|
320 ft
|
|
Interface
|
Keypad Control
|
|
Memory Card Slot
|
None
|
|
Power Draw
|
180 mA
|
|
Power Input
|
10.8-20 VDC
|
|
Power Output Peak-to-Peak
|
2400 Watts
|
|
Power Output RMS
|
300 Watts
|
|
Screen Snap Shot
|
Not Supported
|
|
Mount-Standard
|
Gimbal
|
|
Mount-Standard Size
|
3.91″ W x 7.34″ H x 3.62″ D
|
|
Mount-Optional Size
|
3.91″ W x 5.875″ H x 2.5″ D
|
|
Transducer Mount Location
|
Transom
|
|
GPS Chartplotting
|
Not Supported
|
|
GPS Trackplotting
|
Not Supported
|
|
LakeMaster Compatibility
|
No
|
|
Platinum Compatibility
|
No
|
|
Upgradable Software
|
No
|
|
Display Colors Grayscale
|
256 Color
|
|
Display Size
|
Less than 5″
|
|
Speed
|
Not Supported
|
|
Temperature
|
Built In
|
|
Transducer Included
|
XNT 9 28 T
|
|
MEGA Live Compatibility
|
No
|
