Garmin Vesper Cortex V1

VHF, AIS AND MONITORING

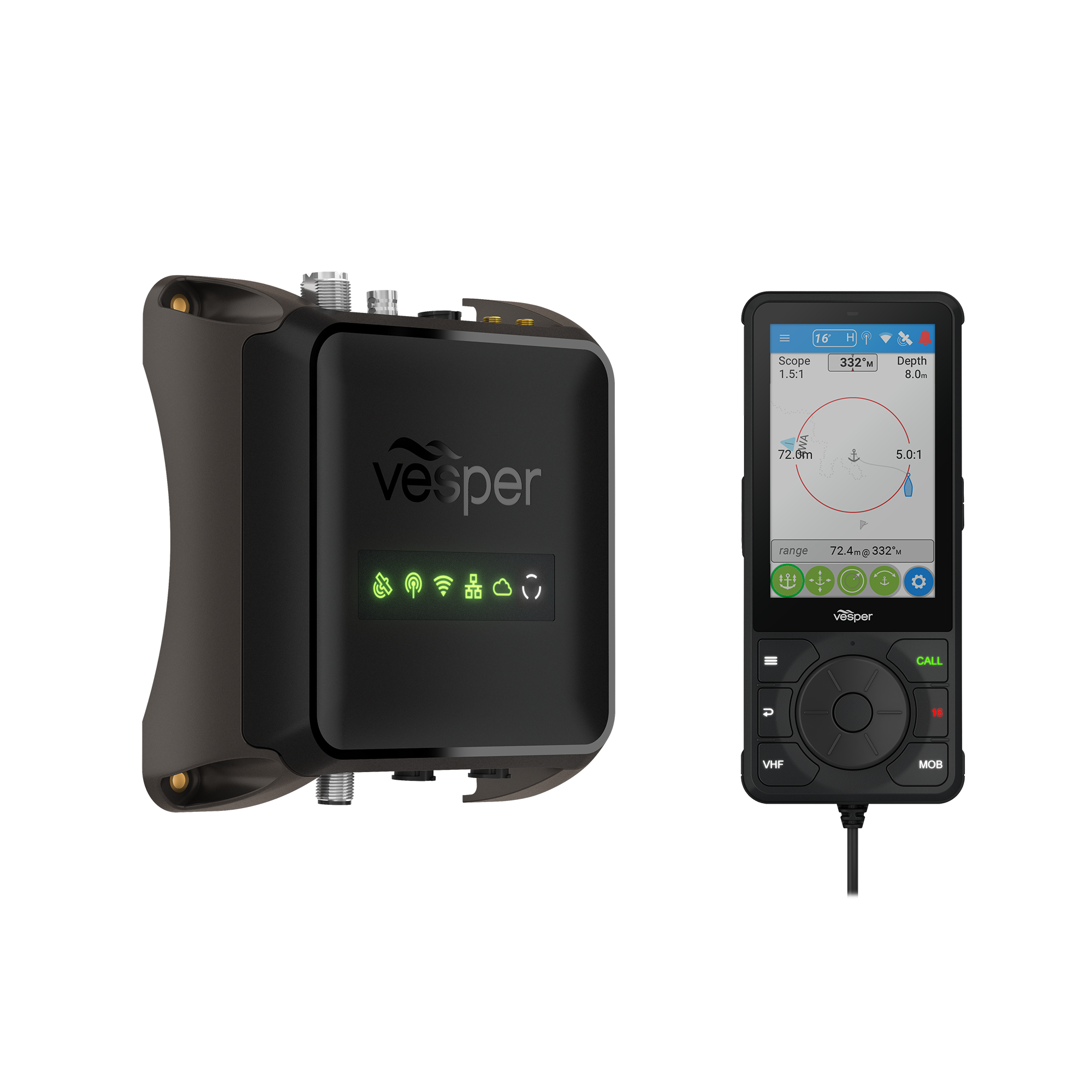

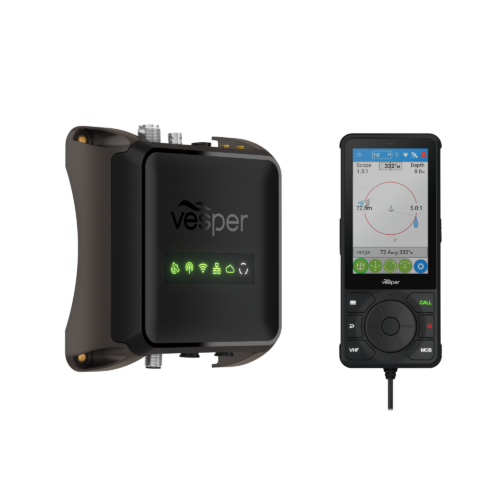

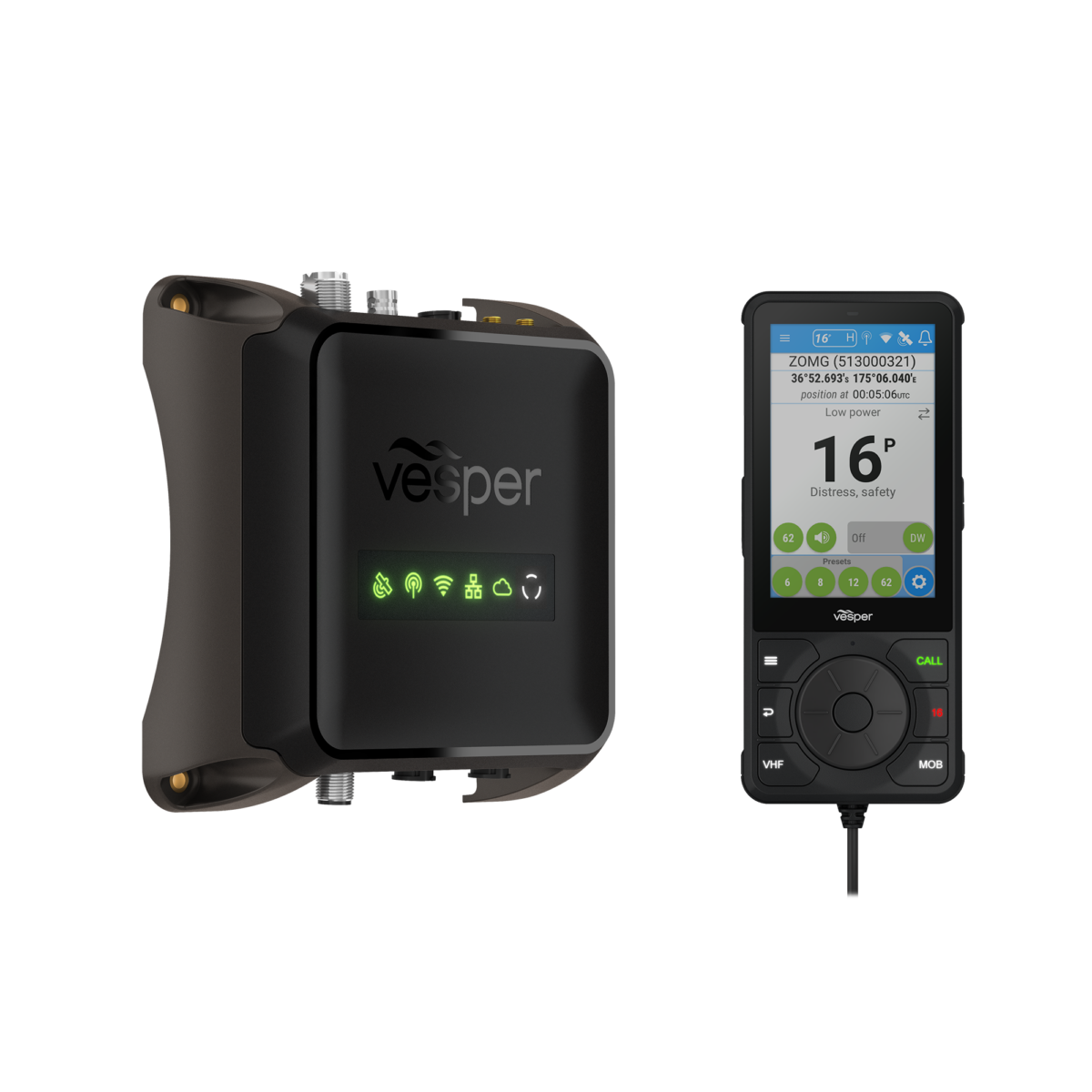

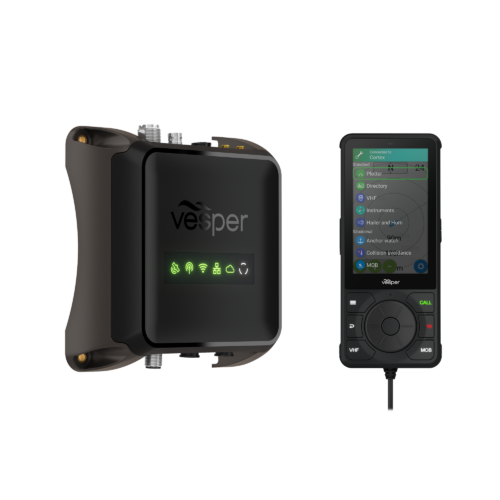

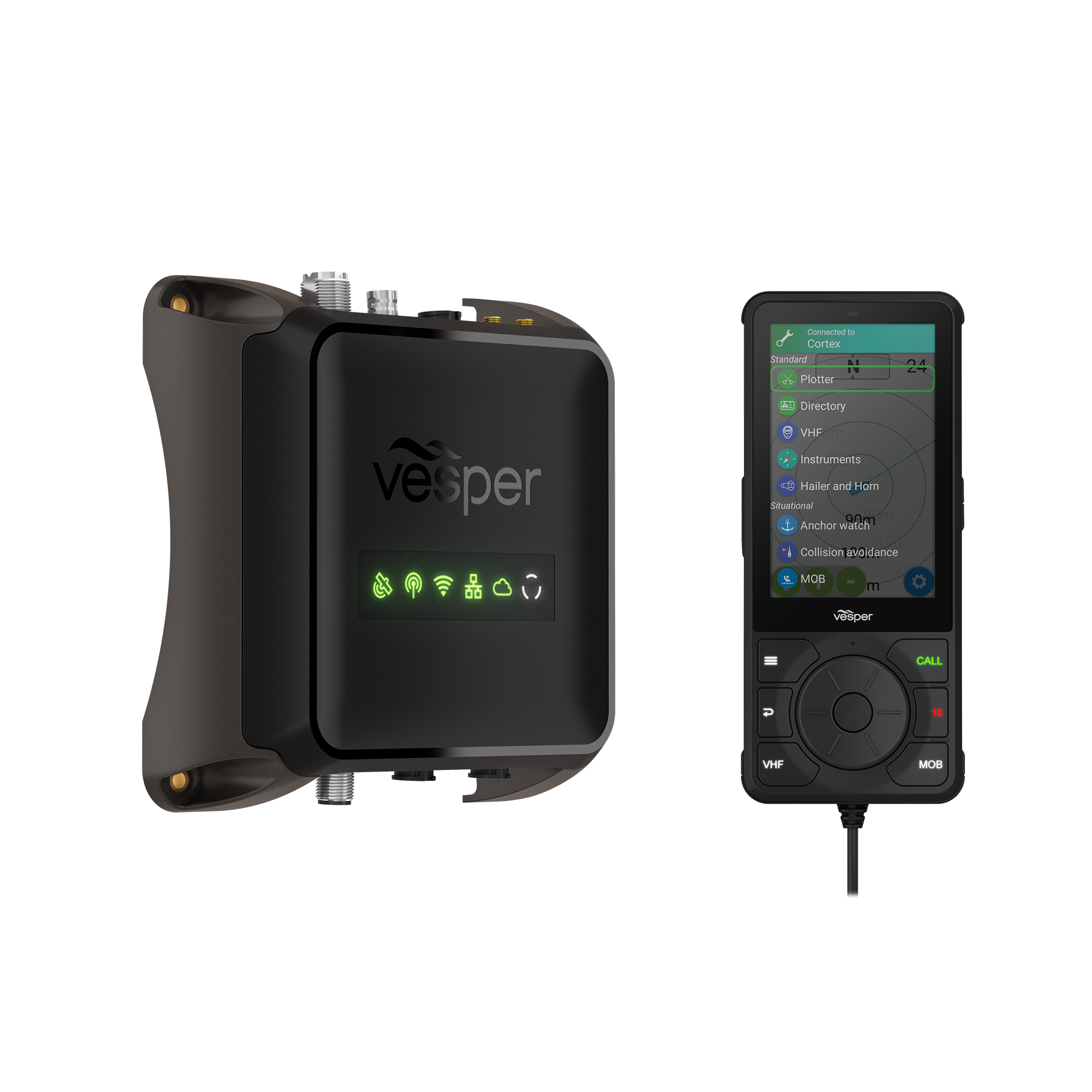

Cortex V1 is an advanced multi-station VHF radio with remote monitoring and control. The Cortex V1 system includes a Cortex M1 hub and Cortex H1 tethered handset. Connect additional Cortex handsets (sold separately) for even more freedom and control on board.

COLLISION AVOIDANCE

Cortex smartAIS continuously monitors AIS information from other boats and calculates crossing situations, generates collision alarms and provides easy-to-understand avoidance cues. Data from its built-in heading sensor is also broadcast, so other vessels can clearly identify which direction your boat is moving.

VHF VOICE FLEXIBILITY

Both portable and power-tethered style Cortex handsets connect wirelessly via Wi-Fi® link to the Cortex M1 hub. Keep a portable handset with you for continual VHF communications access from anywhere on your boat.

ONE-TOUCH DSC

Cortex lets you initiate DSC direct calls with other vessels by simply tapping the vessel icon on your handset. Initiate VHF calls to friends or quickly hail another vessel when every second counts.

ANCHOR WATCH

Whether you’re onboard or ashore, you can know for sure your boat is securely anchored. Cortex smartAIS accurately tracks boat movement, heading and bow position, alerting you if your anchor drags.

VHF, CLEAR AND LOUD

The Cortex VHF radio puts out up to 85 dBA of powerful, crystal-clear audio, so you won’t miss critical communications.

HORN AND LOUDSPEAKER

Need to catch someone’s attention? Easily sound preset horn signals or speak through your loudspeaker with any Cortex handset or the Cortex Onboard smart-device app.

HANDSETS ANYWHERE YOU NEED THEM

Multiple Cortex H1 and Cortex H1P handsets can be connected to each hub. Up to 5 can connect directly to the Cortex Network, with an additional 5 through an existing boat network for increased range on larger vessels.

INTUITIVE CONTROL

Designed for simplicity with easy-to-understand screens and step-by-step data flows during critical situations, Cortex makes advanced features easy to use.

VOICED ALERTS

Instead of ambiguous bells or tones, you’ll hear a voice prompt to tell you what the alert is for. In case of a potential collision, you’ll also be told the direction of the threat, so you’ll quickly know where to look.

DEDICATED MAN OVERBOARD

Man overboard (MOB) can be manually activated using the dedicated MOB button on the Cortex handset, Cortex Onboard smart device app or automatically from an AIS MOB beacon — which launches a trackback mode for quick retrieval.

WET AND GLOVE CAPABLE

Wet hands? Wearing gloves? Cortex handsets are designed to be glove friendly, and they’re built to operate in all types of saltwater or freshwater marine environments.

ONE-HAND OPERATION

Cortex handsets are equipped with a click-wheel, ergonomic design and grip enhancing exterior, so you can use the device while keeping one hand on the helm wheel or tiller.

RESPONSIVE MULTI-TOUCH

Cortex touchscreen handsets provide responsive multi-touch, pinch-to-zoom and panning control, ensuring fast, smooth navigation and intuitive operation.

RUGGED, DURABLE DESIGN

Water-rated to IPX7 standards (resists water ingression when submerged up to 30 minutes in up to one meter of water), the Cortex hub’s thermal polymer housing is heat- and corrosion-resistant — so it can be safely mounted anywhere onboard. The Cortex handsets are IPX8 water-rated, too.

LOW POWER CONSUMPTION

Engineered for minimal power consumption at just 500mA, the Cortex hub can stay on full-time to keep you informed. It will alert you even when your MFD is turned off — ideal if you need to conserve power when anchored or on a long voyage.

OUTSHINES EXTREME DAYLIGHT

The bright, optically bonded LCD screen offers brilliant daylight visibility and a wide viewing angle. A built in ambient light sensor allows automatic adjustment as conditions change.

GALVANIC ISOLATION

Galvanically isolated ports and internal components protect your Cortex hub and connected equipment from electrical shorts and circuit damage in the corrosive marine environment.

MULTI-CONSTELLATION GNSS

With fast 10Hz GPS updates that keep up with your vessel, your vessel position is plotted using multiple global satellite networks. When you connect other devices to Cortex using NMEA 2000 or NMEA 0183, all onboard equipment benefits from Cortex’s super-fast GPS capability.

12/24V OPERATION

Cortex will operate on 12- and 24-volt power supplies, making it easily plug-and-play compatible with most electrical systems on vessels of all sizes.

MONITOR SYSTEMS

See status and history of built-in and connected sensors. Monitor bilge, security, power and other instruments. Set alarms and alarm thresholds, review data history and know when the sensor was last active.

BUILT-IN SENSORS

GPS, heading sensor, battery sensor and barometer provide valuable out-of-the-box information on and off the boat as soon as you plug in and configure your Cortex system.

NETWORKED SENSORS

Simply connect to your boat’s NMEA 2000 network to monitor factors such as wind speed and direction, or water depth from your other onboard devices.

EXTERNAL SENSORS

Your imagination is the limit —connect with sensors to monitor bilge activity and level, shore power, security systems and more (external sensors sold separately).

CORTEX MONITOR APP

Download the Cortex Monitor app from the Apple® or Google™ app store and use your smartphone or tablet to monitor your vessel and receive alerts¹.

GEO-FENCING

Drawing upon the strength of the Cortex Monitor smart-device app and relying on the information being broadcast from your boat, know where your boat is — and if it’s where it should be¹. Get an alert if it moves outside a designated area.

CONTROL DEVICES

Connect with the Cortex Monitor app to remotely control devices such as lights, air conditioning and ice makers on your boat by connecting them to your Cortex system.

REAL-TIME UPDATES

Cortex sends updates to the cloud, allowing you to receive status information and alerts directly on your compatible smartphone or tablet.

MONITOR LITE

A Monitor Lite subscription is free with Cortex. View twice-daily updates on your Cortex system. See alarms from within the Cortex Monitor app.

MONITOR PREMIUM

See real-time updates on the Cortex Monitor app. Receive instant alarm notifications and control onboard devices. Access advanced features like geofence and Anchor Watch. Monitor Premium is available on a monthly or annual subscription.

NMEA GATEWAY

Cortex can receive and broadcast network data — or translate it between NMEA 0183 and NMEA 2000. This makes it compatible with devices on either of those networks — plus it can link via built-in Wi-Fi® connectivity. Receive alerts directly on your compatible devices from anywhere onboard.

CONNECT TO ROAMING

Connect to a boat network with cell or satellite data to roam where Cortex cellular data connectivity cannot reach.

MONITORING MADE EASY

Register your compatible smartphone or tablet with Cortex Monitor, pairing it to your Cortex hub. Then use the Cortex Monitor app to remotely monitor your boat through built-in and connected sensors to your Cortex hub. Upgrade to a Premium subscription to get access to Anchor Watch and receive real-time push notifications.

EASY TO GET STARTED

Connect Cortex Onboard and Cortex Monitor apps easily with your unique QR code to start receiving alerts, viewing boat status information and remotely controlling devices with your compatible smartphone.

EASY INSTALLATION

Use a single existing VHF antenna (not included) for both AIS and VHF, saving time and money on installation. You can also upgrade to a single AIS/VHF antenna for optimized AIS performance.

SOFTWARE UPDATEABLE

Cortex will only get smarter. New features and functionality are being developed all the time and are automatically downloaded to the Cortex Onboard app for easy Wi-Fi updates to your Cortex system.

SIMPLIFY YOUR SYSTEM

Cortex replaces up to 10 disparate devices with a single integrated hub device, making it a simple, easy to install and intuitive device to use.

BUILT-IN SPLITTER

Install Cortex and retain your existing antenna and VHF radio. Cortex features a built-in high-performance no-loss VHF/AIS splitter with a fail-safe pass-through. Simply connect your existing VHF to the auxiliary output on Cortex.

¹Requires a Cortex Monitor Premium subscription
