Garmin Panoptix LiveScope Plus LVS34 Transducer
MPN: 010-02706-10
$1,679.99
Use coupon code:Â FREESHIP and enjoy FREE Ground shipping via UPS Standard within Canada!
Limited time offer. Bulk orders are subject to shipping charges.
The latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images and better target separation.
Out of Stock (On Order)
Get notified when this product is back in stock
- Description
- Additional information
- Product Video
- Product Specifications
- Package Includes
- Accessories
The latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images and better target separation.
-
See images clearly with improved screen clarity, transducer sensitivity and target separation.
-
Scan surroundings with sharper images, reduced noise and fewer sonar artifacts.
-
Upgrade your current LiveScope System black box (GLS™ 10 sonar module) with just a new transducer.
-
Get maximum contrast and clarity in your images with vivid color palettes.
-
Don’t miss a thing with supported Forward, Down and Perspective modes and necessary mount.
| Weight | 4.57 lbs |
|---|---|
| Dimensions | 10.25 × 8.5 × 5.25 in |
| Brand | Garmin |
Product Video
Product Specifications
Garmin LiveScope Plus LVS34 Transducer Specifications
General |
|
|
DIMENSION
|
6.4” x 3.1” x 1.9” (16.2 x 3.1 x 4.8 cm)
|
|
WEIGHT
|
2.25 lbs (1.02Â kg)
|
|
WATERPROOF
|
IPX7
|
|
TEMPERATURE RANGE
|
Operating: 0 C to 40 C
|
Sonar Features & Specifications |
|
|
FREQUENCY
|
530 – 1,100 kHz
|
|
MAX DEPTH
|
Down and Forward: 200’ (61.0 m)
|
Connections |
|
|
CONNECTIONS GARMIN MARINE NETWORK PORTS
|
1 (small connector)
|
Electrical Features |
|
|
POWER INPUT
|
10-32 V
|
|
POWER USAGE
|
21 W typical, 58 W max
|
|
TRANSMIT POWER
|
500 W
|
|
FUSE
|
7.5 A
|
|
COMPASS SAFE DISTANCE
|
4″ (0.1 m)
|
More Features |
|
|
Minimum depth:
|
3′ (0.91 m)
|
|
Sonar type:
|
Live
|
|
Beamwidth:
|
20° x 135°
|
|
Transducer cable length:
|
20Â ft
|
|
Transducer number of pins
|
21
|
Package Includes
In the Box:

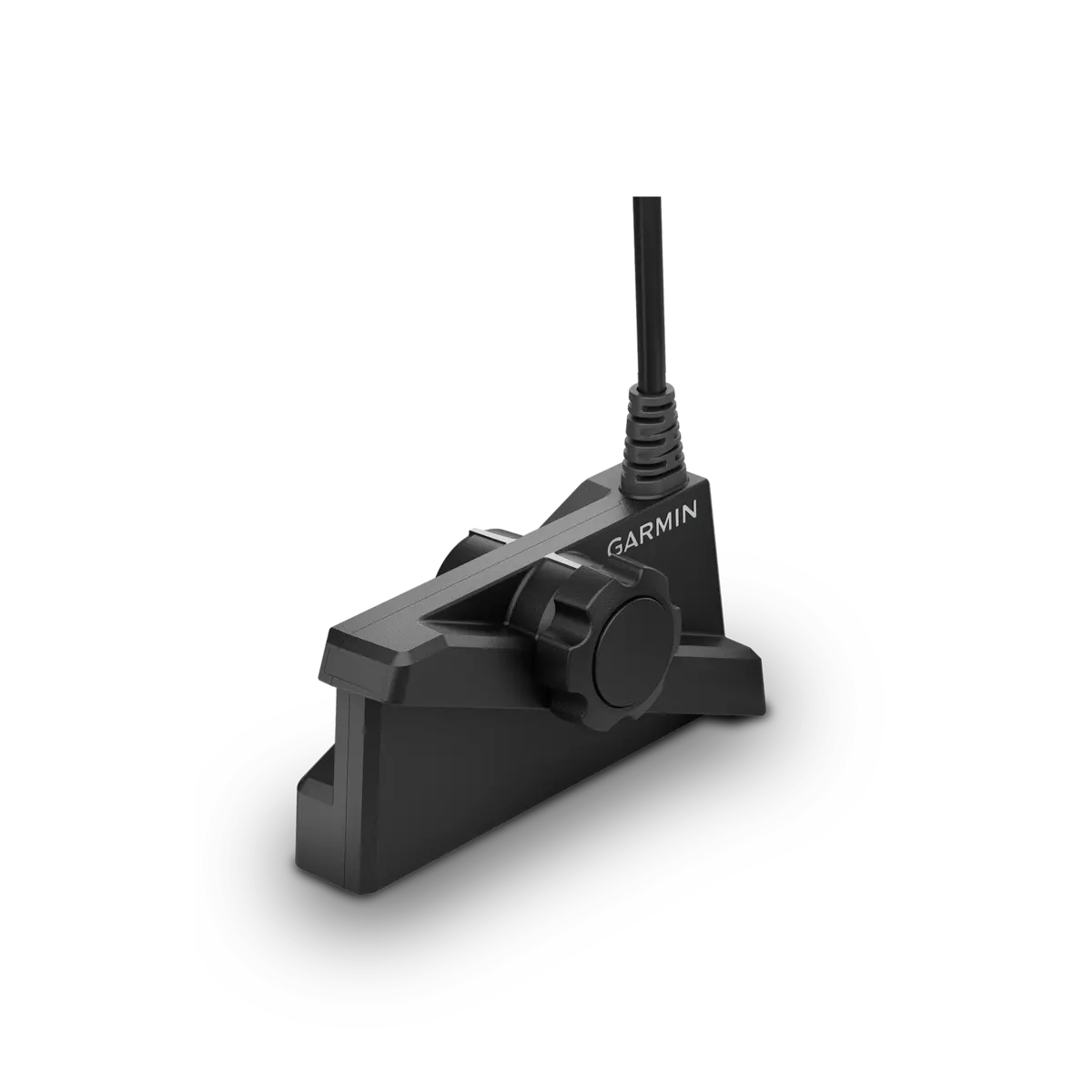

- Panoptix LVS34Â transducer

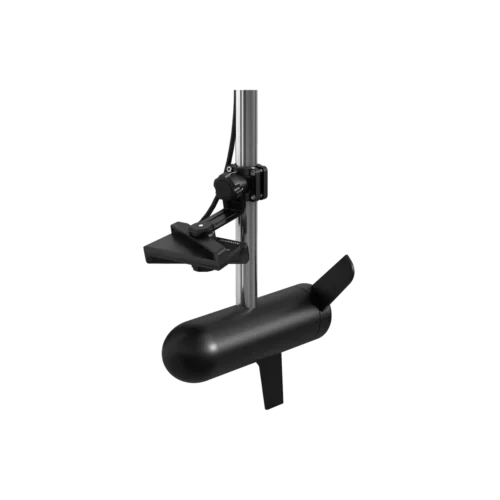

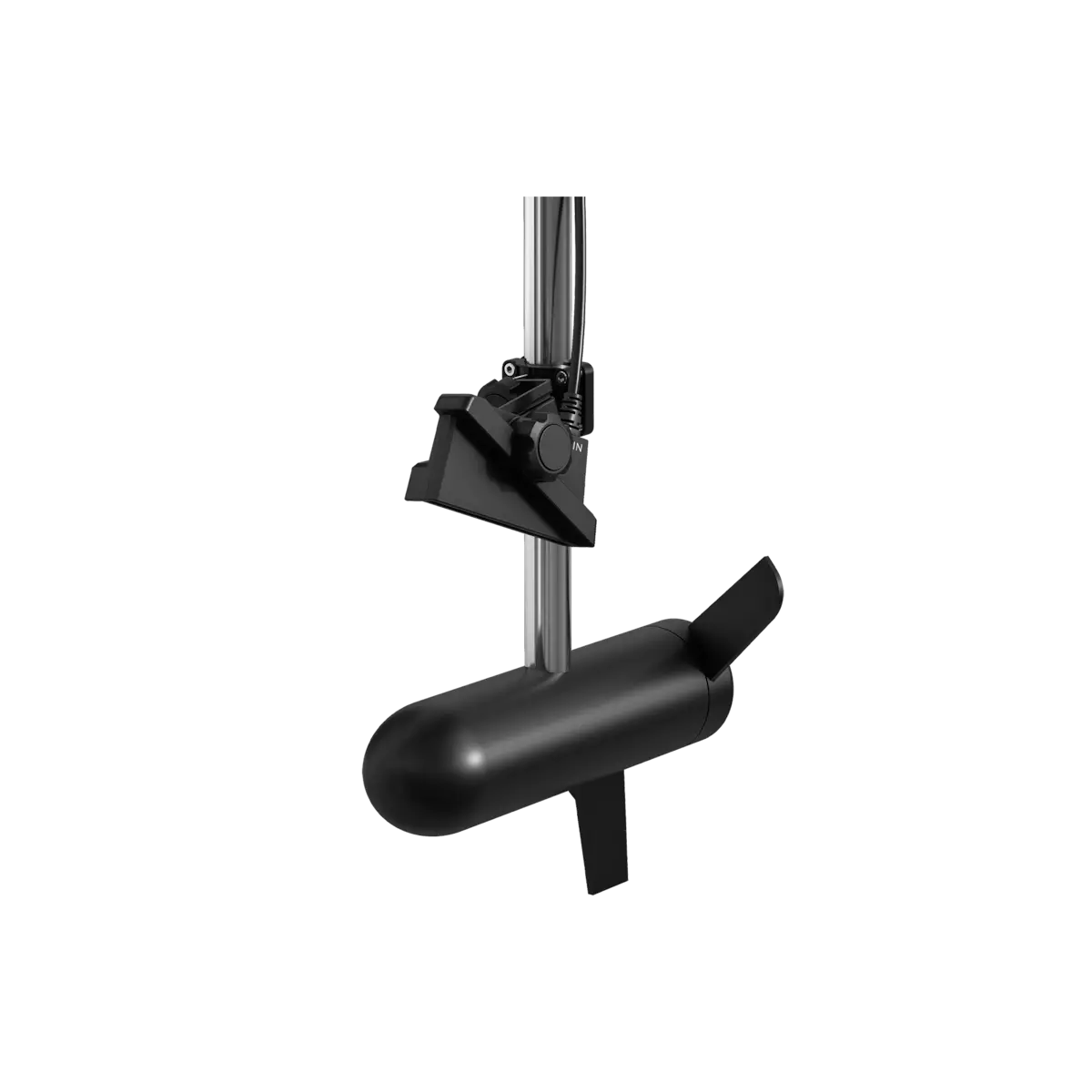

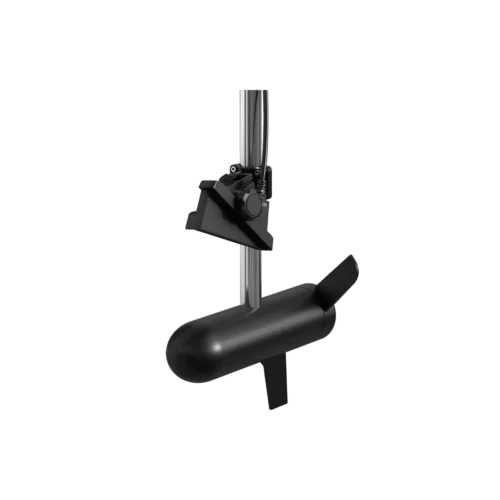

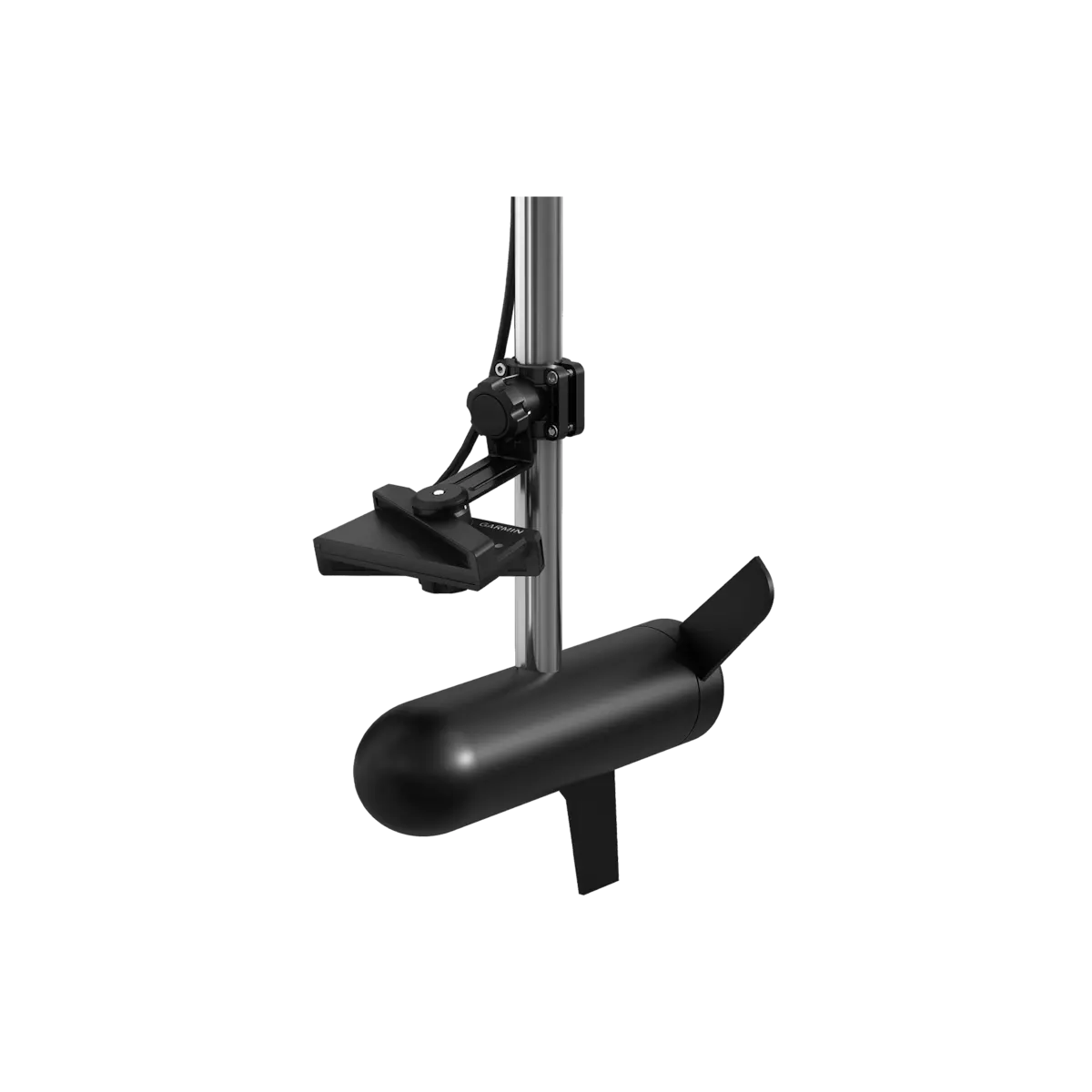

- Perspective mount

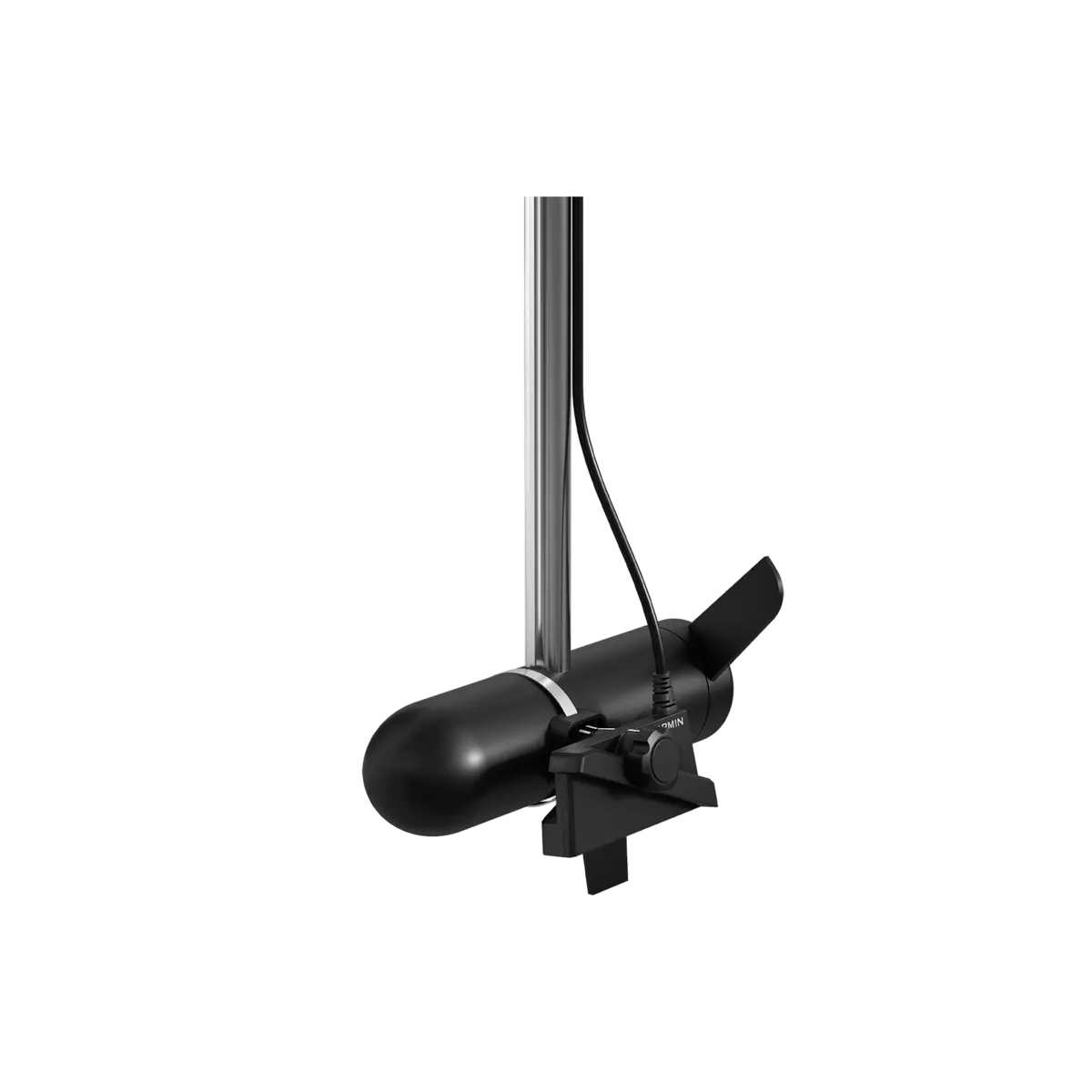

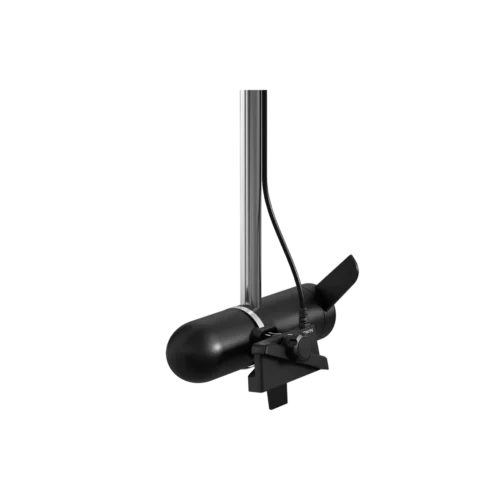

- Trolling motor barrel mount
- Shaft mount
- Documentation
