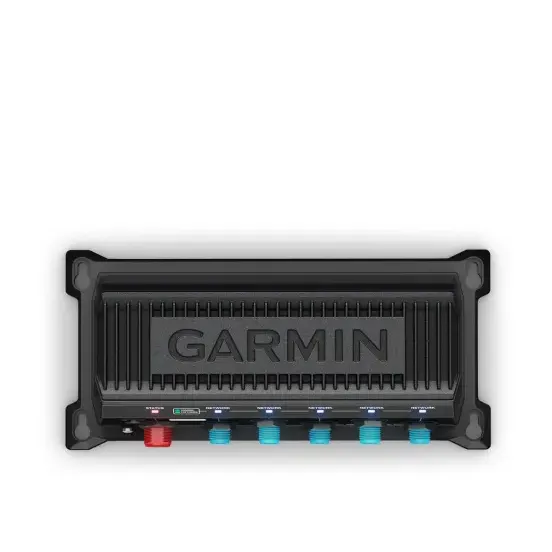

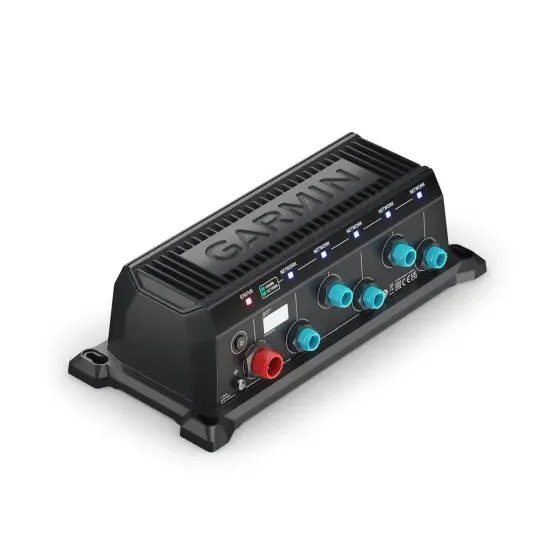

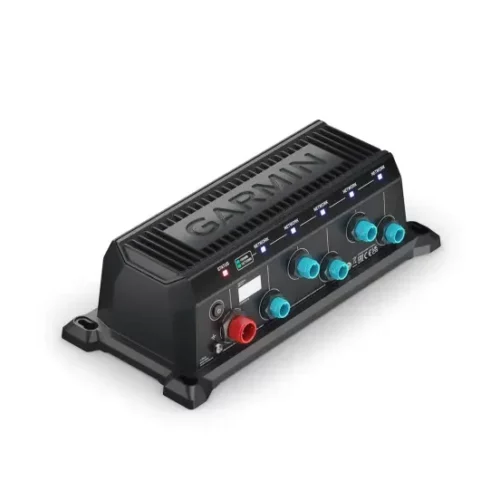

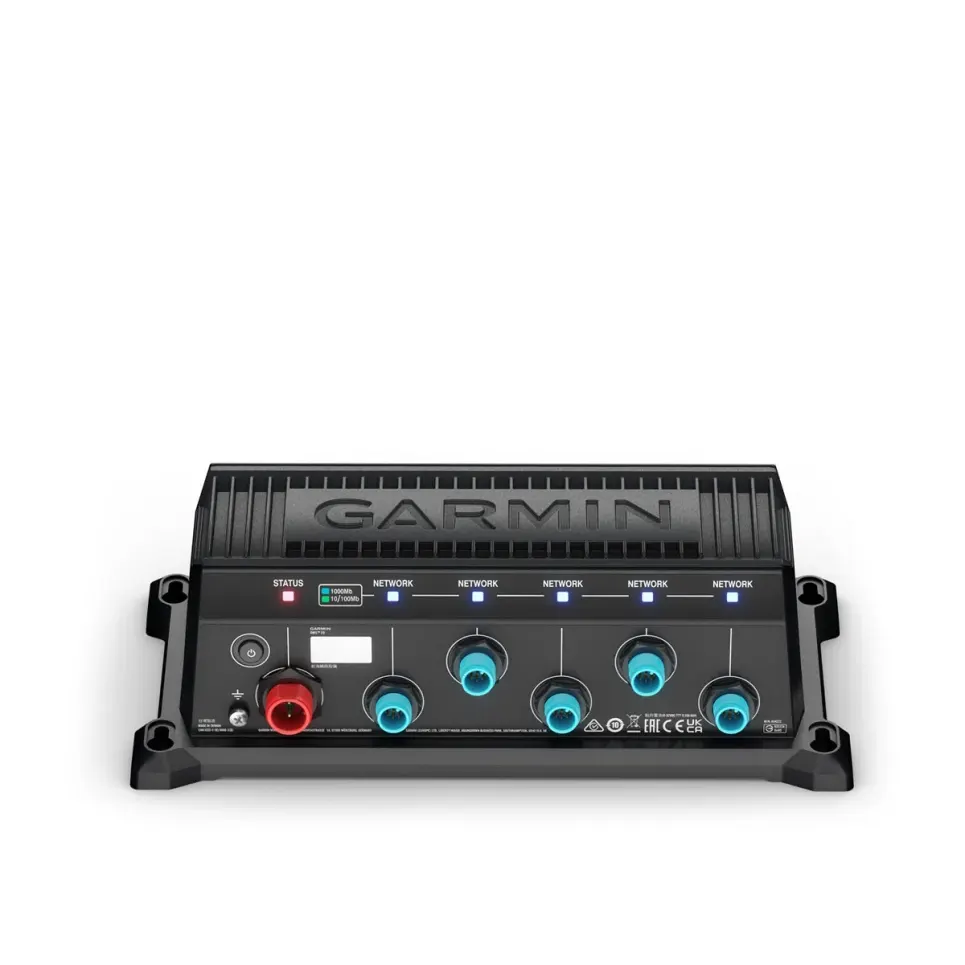

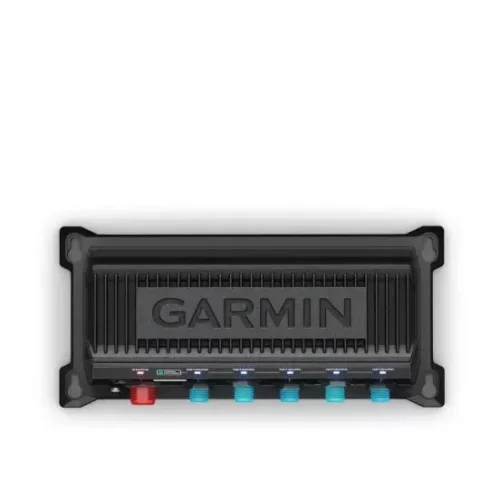

Garmin BlueNet 20 Switch
MPN: 010-02612-00
$499.99
Out of Stock (On Order)
- Description
- Additional information
- Specifications
- Package Includes
- Product Guides & Documentation
- Accessories

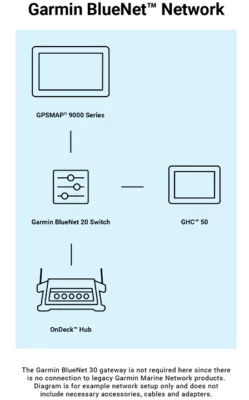

Increase the number of available network ports in a Garmin BlueNet network. Once you’ve used all the ports on your compatible chartplotter just add a Garmin BlueNet 20 switch to the setup and keep constructing your expansive high-speed network.
| Weight | 2 lbs |
|---|---|
| Dimensions | 11.5 × 5 × 8.25 in |
| Brand | Garmin |
Specifications
Garmin BlueNet 20 Switch Specs
- Material: Polycarbonate plastic and die-cast aluminum
- Dimensions (W x H x D): 293.3 × 72 × 112.6 mm (9 7/16 × 2 13/16 × 4 7/16 in.)
- Weight: 0.5 kg (1 lb. 2 oz.)
- Operating temperature range: From -15° to 70°C (from 5° to 158°F)
- Water rating: IEC 60529 IPX71
- Power input: From 10 to 32 Vdc, 2 A max.
- Fuse: 2 A
- Max. power usage: 3.6 W
- Typical current draw 12 Vdc: 270 mA
- 24 Vdc: 140 mA
- Max. current draw: 330 mA
- Compass-safe distance: 10 cm (4 in.)
Package Includes
In the Box:
- Garmin BlueNet 20 Switch
- Power cable
- Mounting hardware
- Garmin BlueNet™ network cable (2 meters)
- Documentation
