Garmin AIRMAR B75M Transducers
$999.99
Out of Stock (On Order)

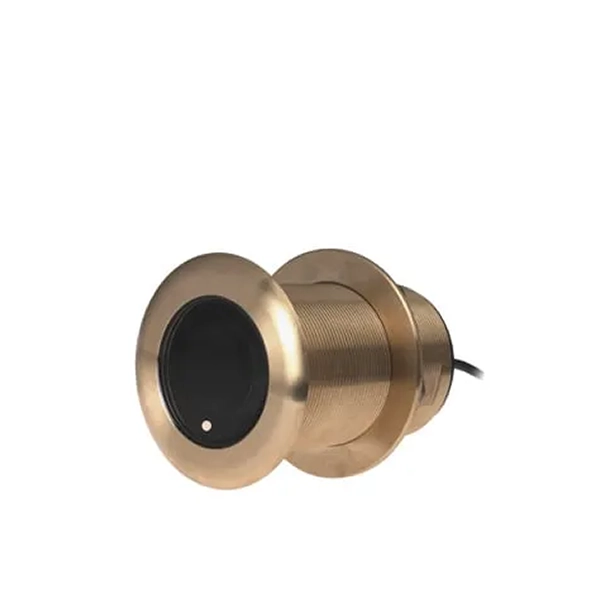

This bronze thru-hull mount transducer is designed to allow both traditional and spread spectrum scanning when used with a compatible sonar like the GSD™ 26.
A 600 W transducer with 8 pins, it has a depth of 900 ft; an operating frequency of 80-130 kHz; a beamwidth of 24/16 degrees; and a 0 to 7 degree deadrise (010-11326-20) or and a 16 to 24 degree deadrise (010-11326-22).
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Brand | Garmin |
| Tilt | 0 degree tilt – AIRMAR B75M, 20 degree tilt – AIRMAR B75M |
Specifications
Garmin AIRMAR B75M Specs
| Transducer frequency | CHIRP (80-130 kHz) |
|---|---|
| Transducer power | 600 W |
| Transducer beamwidth | 24°/16° |
| Transducer maximum depth | 900 ft. |
| Transducer cable length | 39 ft. |
| Transducer depth/speed/temperature | Depth and Temperature |
| Transducer number of pins | 8-pin |
| Tilt 0°: Transducer supported deadrise/transom angles | 0°-7° degree deadrise |
| Tilt 20°: Transducer supported deadrise/transom angles | 16°-24° degree deadrise |
