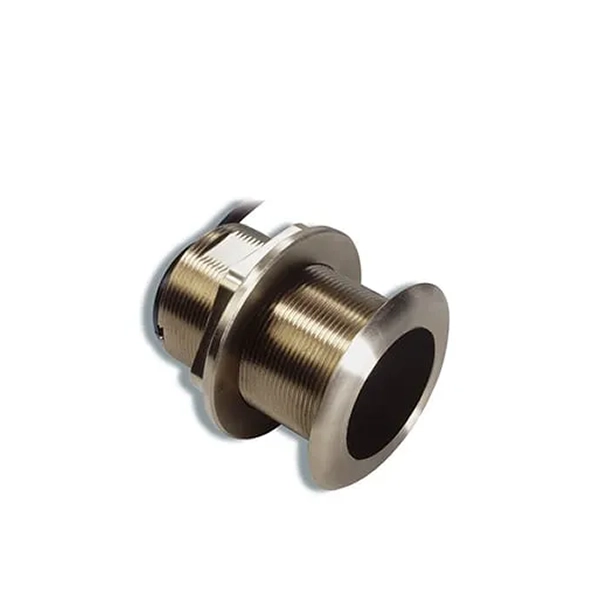

Garmin AIRMAR B60 Transducers
$399.99
Out of Stock (On Order)
The 12° entry-level tilted bronze transducer accommodates deadrise angles of 8 to 15 degrees without a fairing.
The 20° entry-level tilted bronze transducer accommodates deadrise angles of 16 to 24 degrees without a fairing.
An excellent choice for fiberglass and wood hulls, these 600 W 8-pin transducers have a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; and a beamwidth of 45 to 12 degrees.
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
*Do not use on metal hulls. When using with a 6-pin Garmin sounder, a transducer adapter cable is required.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Tilt | 20° – Airmar B60, 12° – Airmar B60 |
Specifications
Garmin AIRMAR B60 Transducer Specs
| Transducer frequency | 50/200 kHz |
|---|---|
| Transducer power | 600 W |
| Transducer beamwidth | 45°/12° |
| Transducer maximum depth | 800-1,200 ft. |
| Transducer cable length | 33 ft. |
| Transducer depth/speed/temperature | Depth and Temperature |
| Transducer number of pins | 8-pin |
| Transducer supported deadrise/transom angles – 20° | 16°-24° degree deadrise |
| Transducer supported deadrise/transom angles – 12° | 8°-15° degree deadrise |
