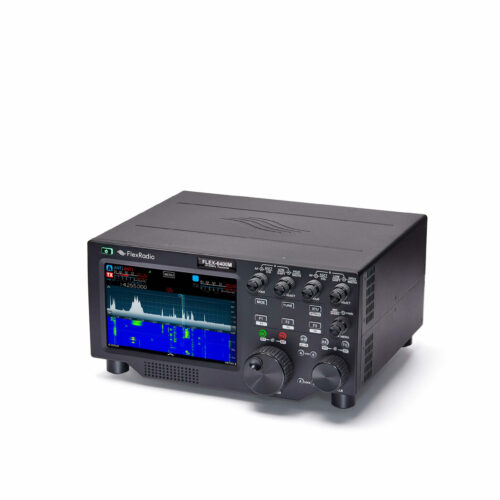

FLEX-6400M Transceiver

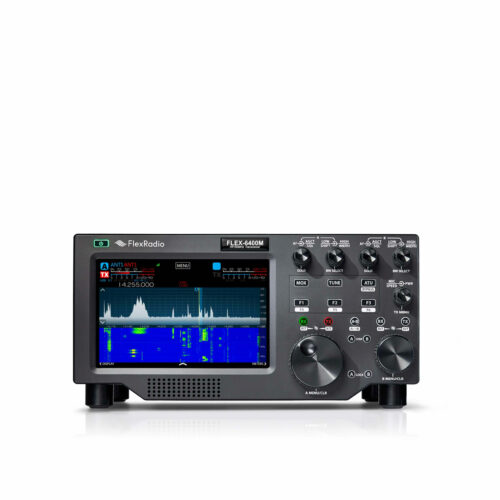

FLEX-6400M Transceiver - Image 2

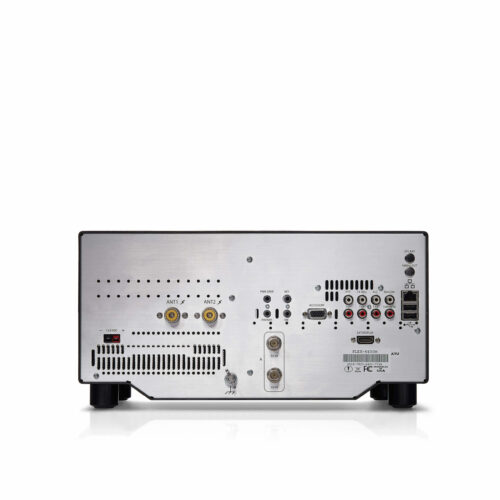

FLEX-6400M Transceiver - Image 3

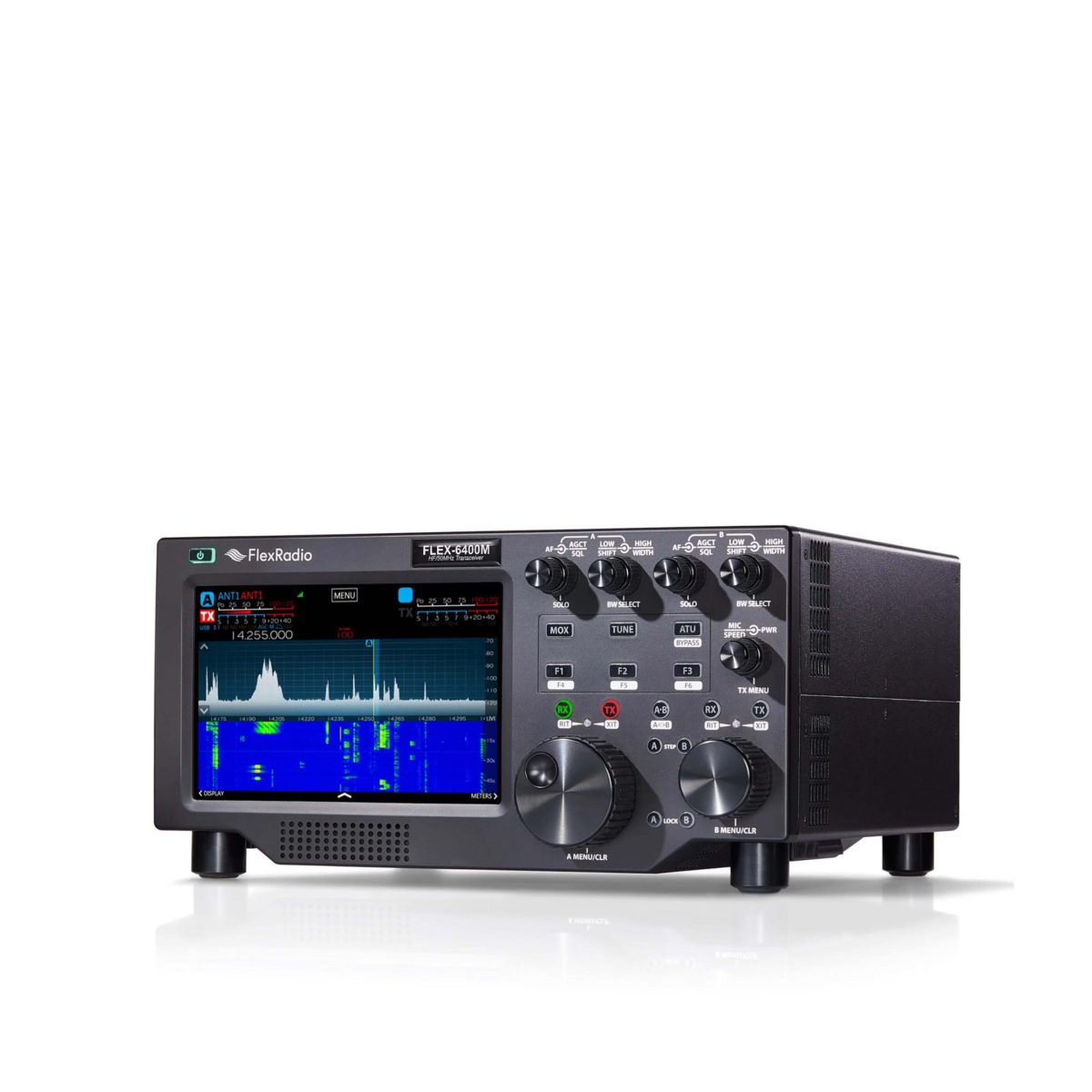

FLEX-6400M Transceiver - Image 4

FLEX-6400M Transceiver

This item has been discontinued. No longer available.

All-in-one SDR Features, Plug & Play Remote, with Best in Class performance.

Out of Stock (On Order)

This product is currently out of stock and unavailable.

Get notified when this product is back in stock

SKU: N/A Category:

Signature Series HF/50 MHz Direct Sampling SDR Transceiver

All-in-One SDR Features

  • 100W PEP HF-6m operation
  • All modes/all bands
  • Integrated Remote Operation with Maestro, PC/ Laptop, iPad® or iPhone®
  • 2 Independent Band / Mode Receivers
  • Full Duplex Cross-Band Operation
  • Transverter Port
  • Receive-Only Port
  • Direct Sampling SDR 122.88 Msps – 16 bit
  • 115 dB 2kHz RMDR
  • 10 MHz Reference Input with GPSDO option
  • Optional MARS/CAP/SHARES Expansion
  • Free-DV and D-STAR (optional)
  • Optional Antenna Tuner
  • Spectacular 8-Inch, 1920 X 1200 IPS Integrated Display
  • Touch Tune, Zoom, Pan Controls At Your Fingertips
  • Ergonomically Optimized Controls With Full Dual VFO
  • Up To 7MHz Spectrum / Waterfall Bandwidth
  • Real-Time Spectrum / Waterfall
  • >155 Db Dynamic Range
  • External Display Output – Full 1920 X 1200 Resolution
  • Internal Speaker

Plug & Play Remote**

  • No complex setup required
  • Operate anywhere, any time
  • Use a Maestro, iPad, iPhone or Laptop
  • Across the country or across the world
  • Complete control

Best in Class Performance

  • 115db RMDR
  • No noise fatigue
  • Ultra Low Phase Noise
  • Full Break-in QSK CW
  • Brick Wall Filters
  • Stunning transmit audio
Brand

FlexRadio System
Version

FLEX-6400M Transceiver, FLEX-6400M Transceiver with Antenna Tuner

Full Specifications

Full Specifications

Receiver

  • Independent Band/Mode Receivers (Max): 2
  • 1/2 kHz Reciprocal Mixing Dynamic Range (RMDR): 110/115 dB
  • ADC Bits/Sampling Rate: 16/122.88 Msps
  • Frequency Coverage: 30 kHz-54 MHz
  • Amateur Band Preselectors: 3rd Order
  • Cable-less Digital Audio (DAX/DAX IQ) Channels: 2/2
  • Receive Only Ports (Base/Including XVTR Port): 1/2
  • Full Duplex RX/TX Operation

Transmitter

  • 160m-6m Transmitter Output: 1-100W(25W AM)
  • Harmonic Suppression (Typ): < -60 dBc
  • Transverter Ports: 1
  • Transverter Frequency Coverage/Power: 100 kHz – 54 MHz/0 to +10 dBm
  • Integrated Automatic Antenna Tuner Range: 3:1 SWR
  • Continuous MARS/CAP Coverage with Optional Filter

Spectrum/Waterfall

  • Internal Touch Panel Display Size Diagonal: 8-inch
  • Integrated Display Resolution: 1920×1200
  • External Display Resolution/Connection: 1920×1200/HDMI
  • Spectrum/Waterfall Displays (Max): 2
  • Spectrum/Waterfall BW (Min/Max): 5 kHz to 7MHz
  • Spectrum Dynamic Range (Max Zoom In): >145 dB
  • Spectrum Resolution Bandwidth (Min): 5.85 Hz/px

General

  • Modes (Note 1) SSB, CW, AM, SAM, FM, FREE-DV, RTTY, DIGITAL
  • D-STAR Mode Optional ThumbDV
  • Integrated Remote Operation (SmartLink)
  • Maestro, PC, MAC, iPhone, & iPad Client Options
  • Internal Speaker/Power 2W Class D
  • Frequency Stability (0C – 50C) 0.5ppm (TCXO)
  • GPS Disciplined Oscillator Optional 5 x 10-12 Over 24 Hours
  • External 10MHz Reference Input
  • Power Supply Requirements 13.8 VCDC +/- 15% (14 VDC Nom)
  • Dimensions 6.74″H (17.1 cm) x 14″W (35.6 cm) x 13.25″D (33.7 cm)

**SmartLink Remote Requires SmartSDR V2.x License.
Requires internet connection. 1. RTTY and other digital modes use 3rd party software over DAX channels.

Package Includes

In the Box:

  • FLEX-6400M Transceiver
  • FHM-2 Electret Hand Microphone
  • 6 ft. (1.8m) CAT 5 Ethernet cable
  • DC power cord with Anderson Powerpole™ connectors
  • SmartSDR for Windows installation and documentation CD
  • FLEX-6400/FLEX-6600 Quick Start Guide
