The patented* DX Engineering Tilt Base Antenna Mounting Systems enable an operator to raise or lower an antenna in seconds, while leaving the base of the antenna securely attached to the mounting plate and post.
With our stainless steel Tilt Bases one person can install and service the antenna. This means you’ll no longer have to climb ladders, there is no need to remove brackets from the support posts, any you will never again have to lift the entire weight of the antenna in order to put it up or take it down.

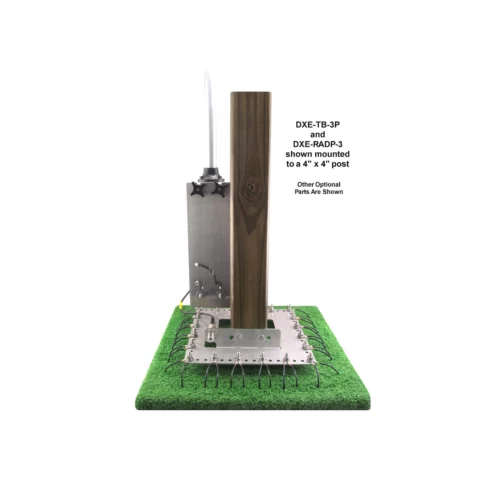

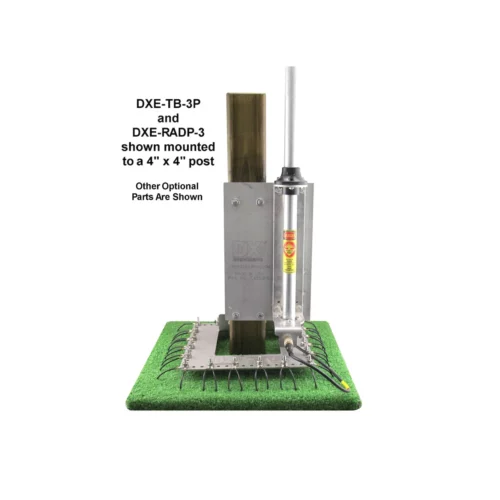

Precision-cut from 3/16 in. 304 stainless steel, these Tilt Base Antenna Mounting Systems are virtually indestructible. They conveniently mount to the same mast that you use for the antenna and Radial Plate. You could use lag screws or carriage bolts to mount one to a wood post, but typically these Tilt Bases are ground mounted to a 2 in. max O.D. pipe with two optional SSVC-2P saddle clamps.

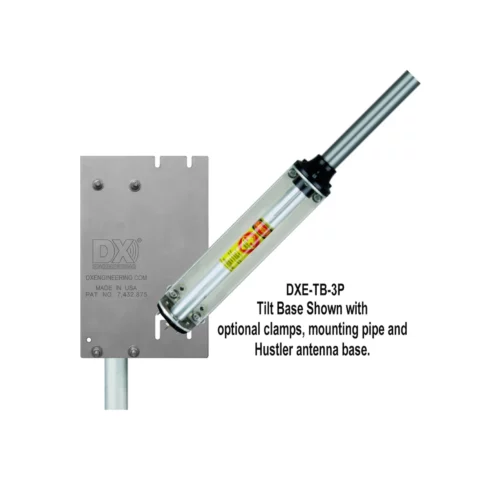

DXE-TB-3P: Specifically designed to mate with the antenna mounting bracket of the Hustler 4, 5 or 6 BTV vertical antennas.
*U.S. Patent 7,432,875
