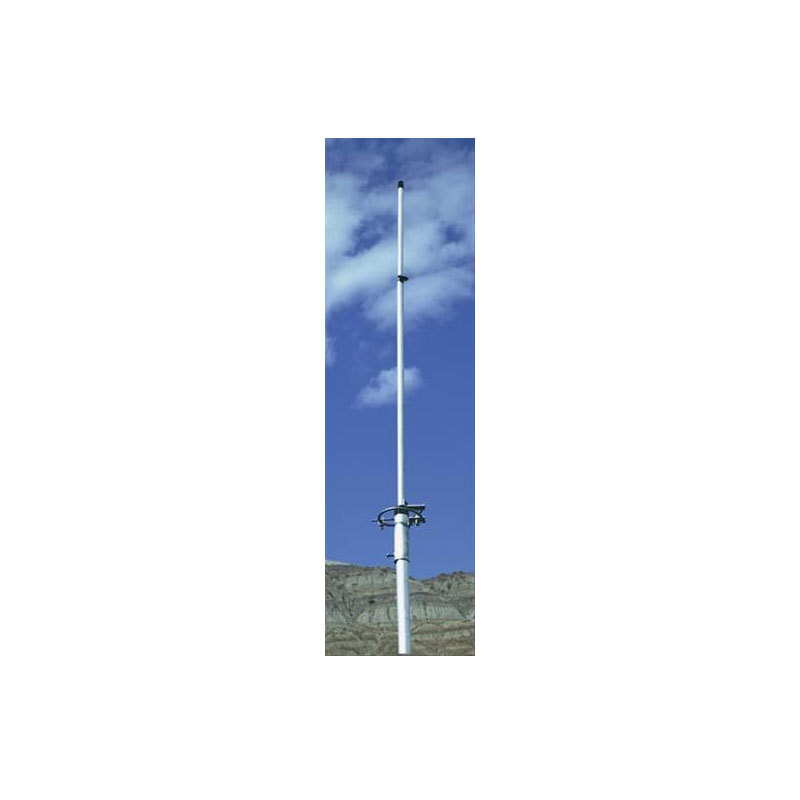

Cushcraft AR-2 VHF Ringo Base Antenna

Cushcraft AR-2 VHF Ringo Base Antenna

MPN: AR-2

$171.00

Please note: Due to the size of this antenna, it can only ship via UPS and extra shipping charges will apply.

Out of Stock (On Order)

Get notified when this product is back in stock

SKU: 7417 Category:

These are the original W1BX FM Ringos. If you want a combination of compact size, wide bandwidth, a low radiation angle, these economical antennas are just for you.

Since radials are not needed, you can even use our Ringos indoors. Our Ringos are ½ wave and include built-in lightning protection. Put up one of these easily installed antennas and start enjoying FM!

Weight 2.7 lbs
Dimensions 36.5 × 5.25 × 2.25 in
Brand

Cushcraft
Manufacturer Part Number AR-2

Specifications

Cushcraft AR-2 Specifications
Frequency, MHz:
135 – 160
2:1 Bandwidth, MHz:
10
Gain, dBi:
3
Power Rating, Watts FM:
1000
Radiation Angle, Deg.:
16
Horizontal Radiation
Pattern, Degrees:
360
Ring Diameter, in (cm):
5 (12.7)
Radiator Base Dia. in (cm):
0.75 (1.9)
Height, ft (m):
3.9 (1.2)
Mast Size Range, in (cm):
1 – 1.25 (2.54 – 3.1)
Wind Load, ft sq (m sq)
0.21 (0.0.2)
Weight, lb (kg)
1.5 (0.68)

Product Guides & Documentation

Cushcraft AR-2 Manual
