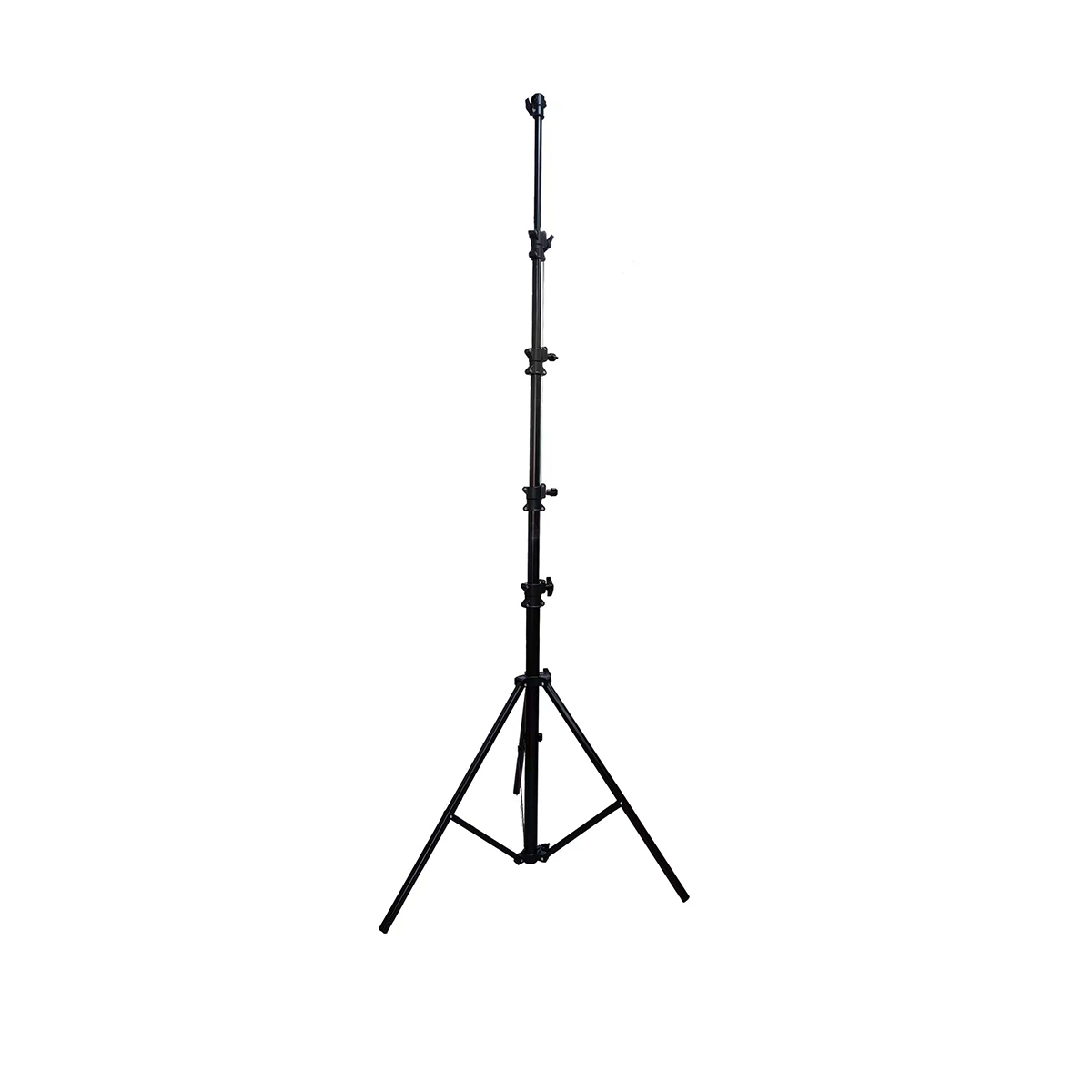

Chelegance TP16 Antenna Mast

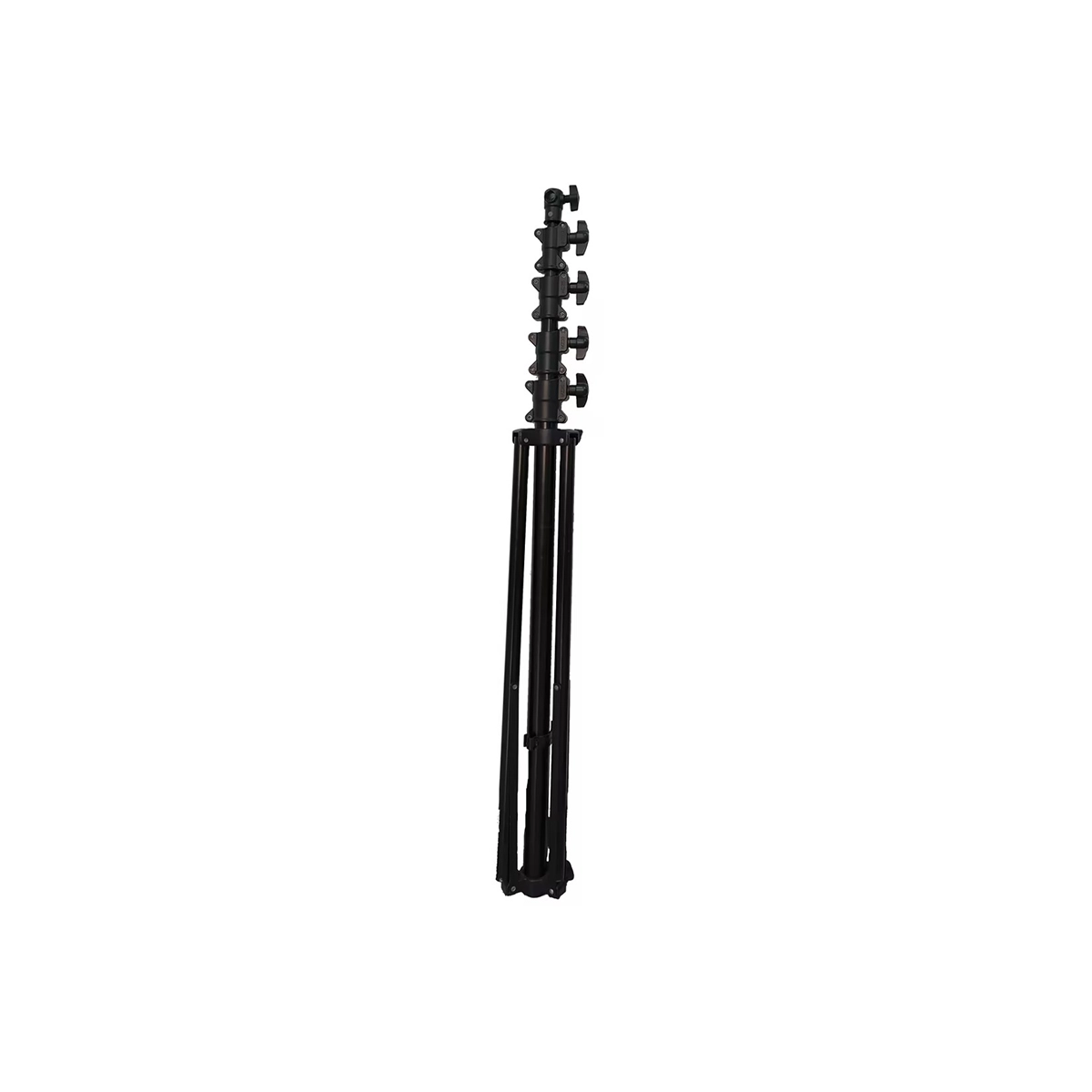

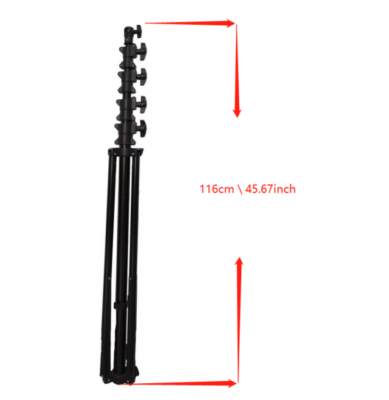

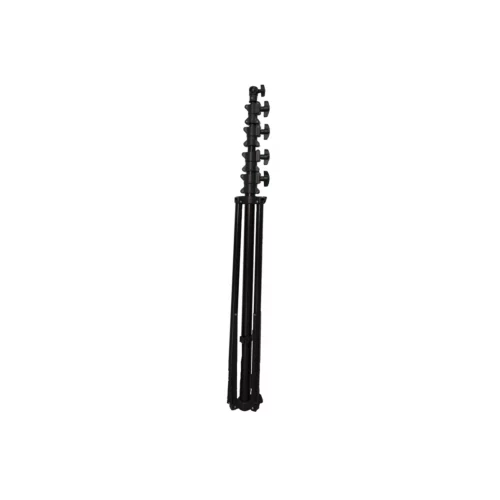

Chelegance TP16 Antenna Mast collapsed

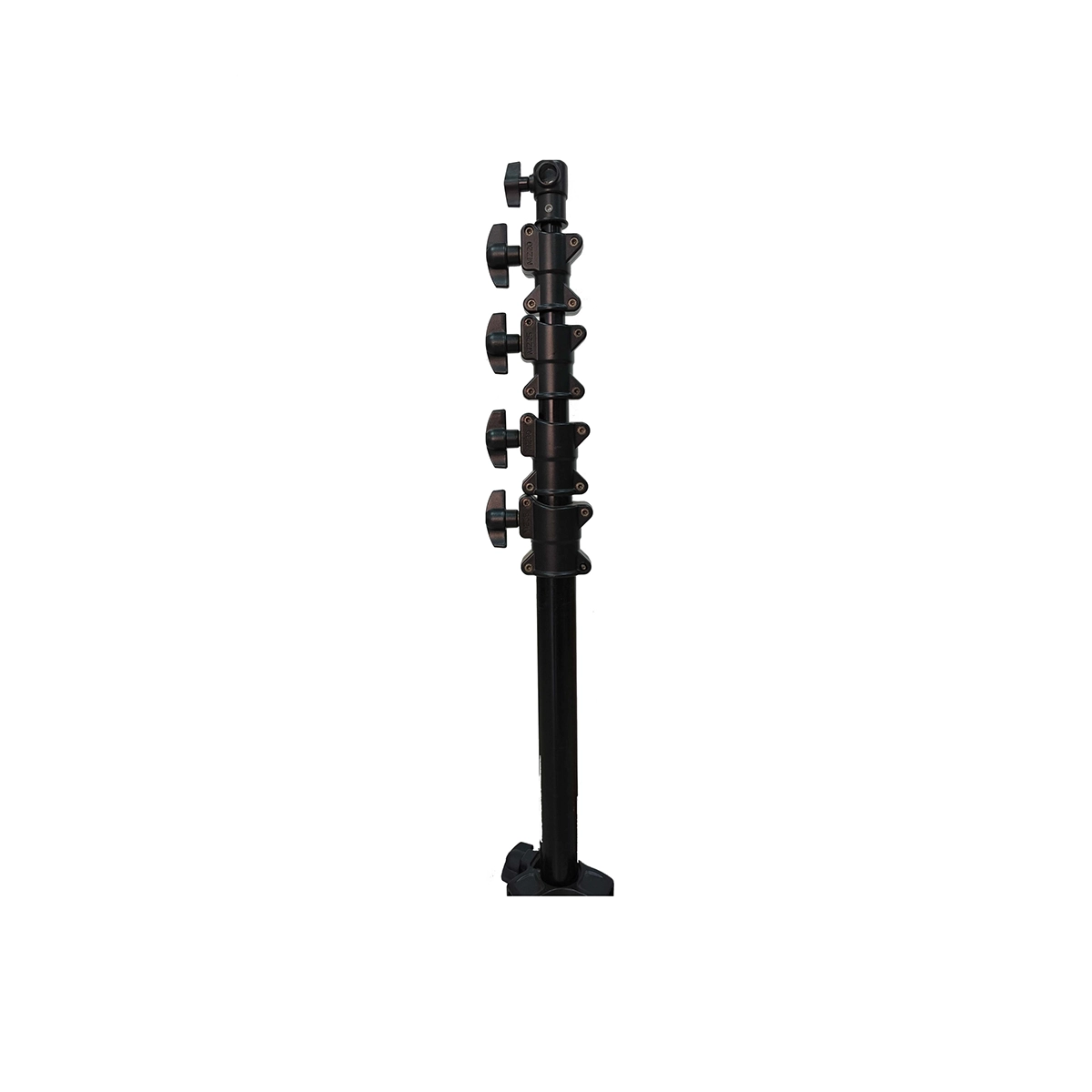

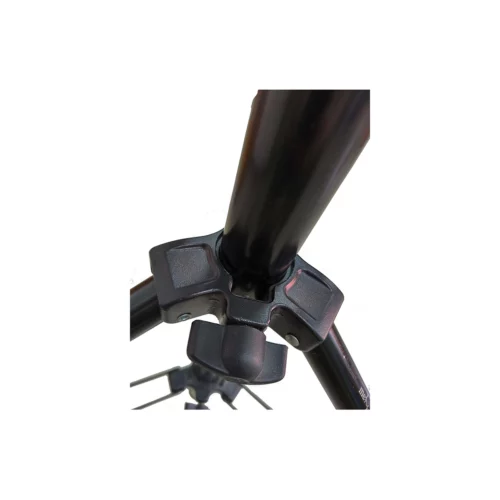

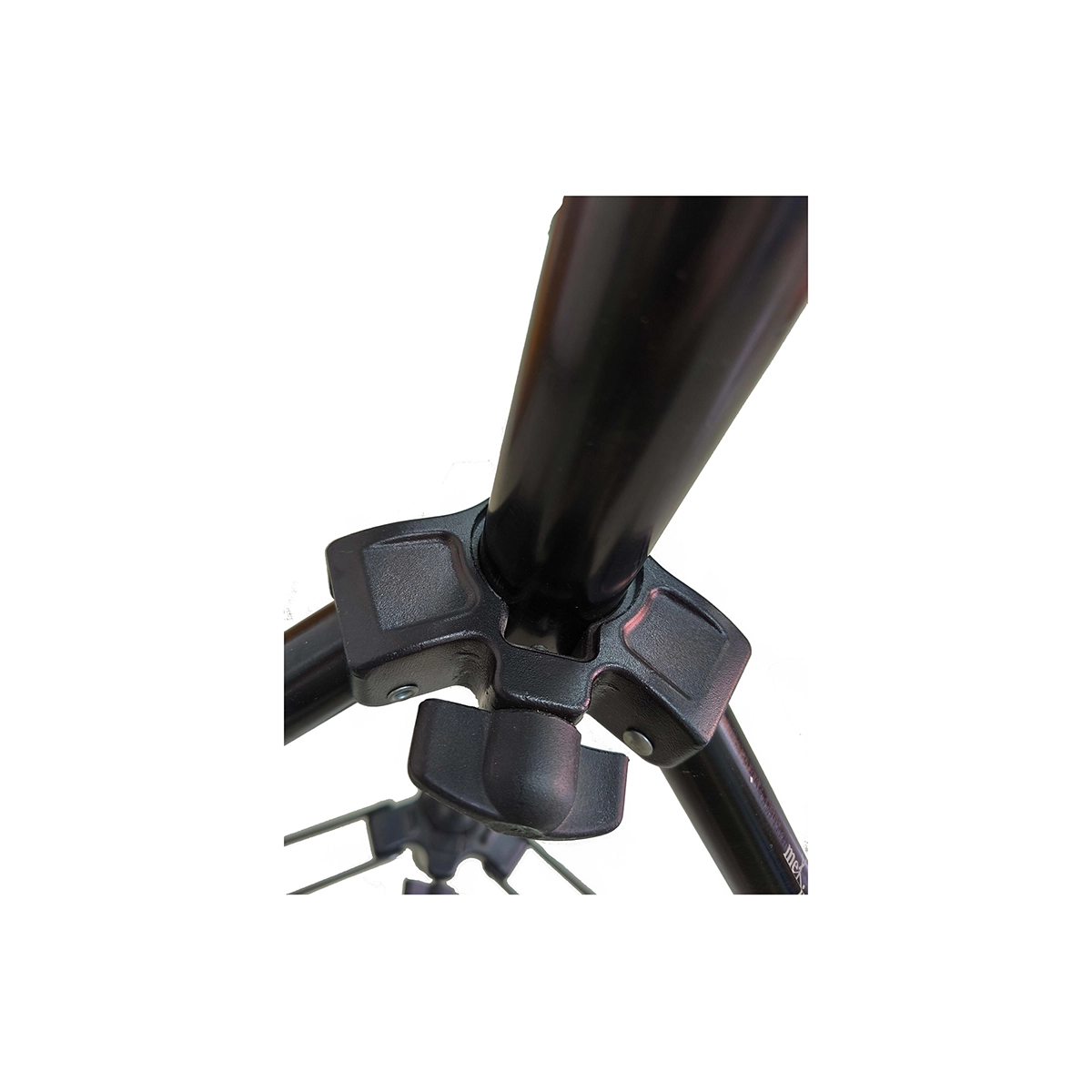

Chelegance TP16 Antenna Mast closeup of collapsed

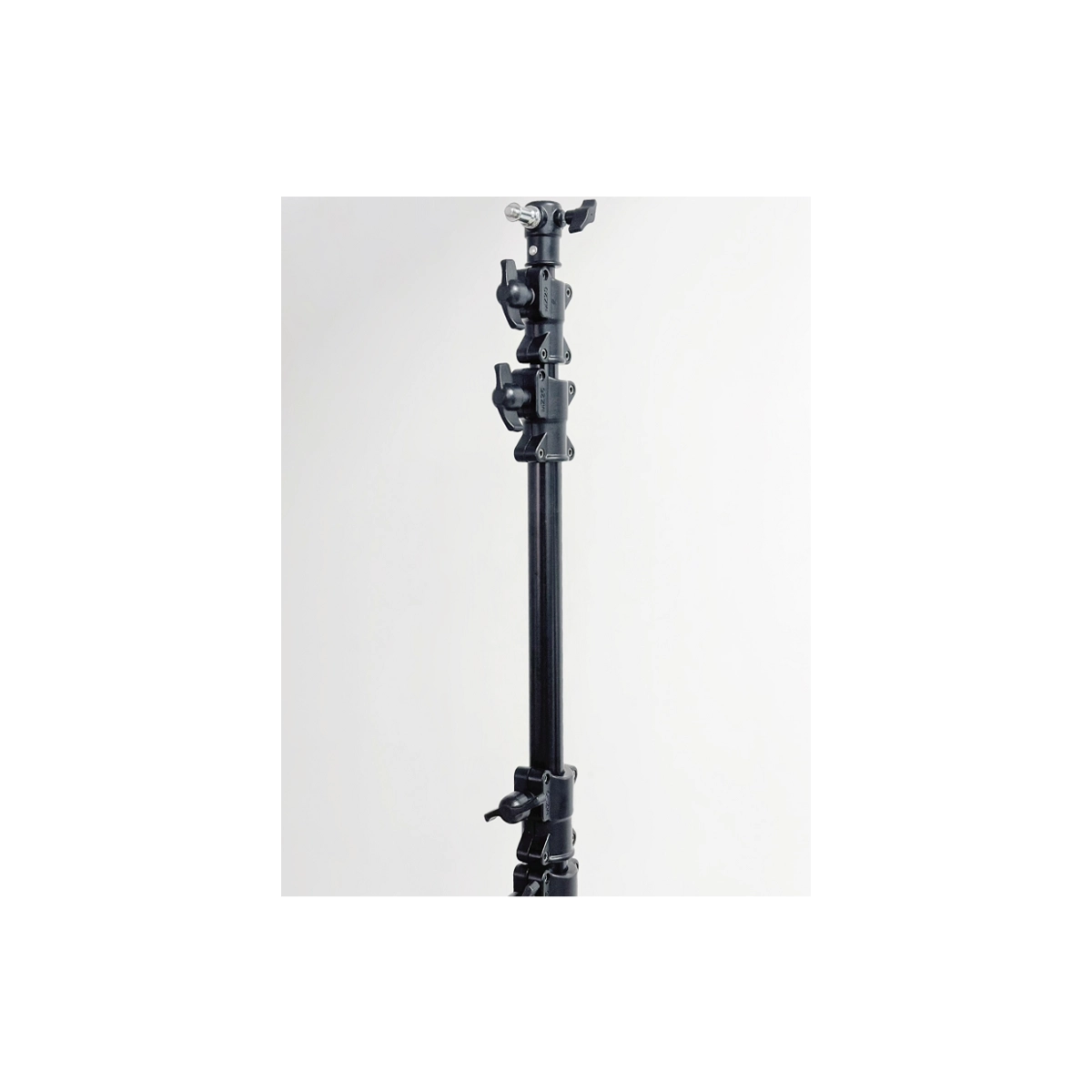

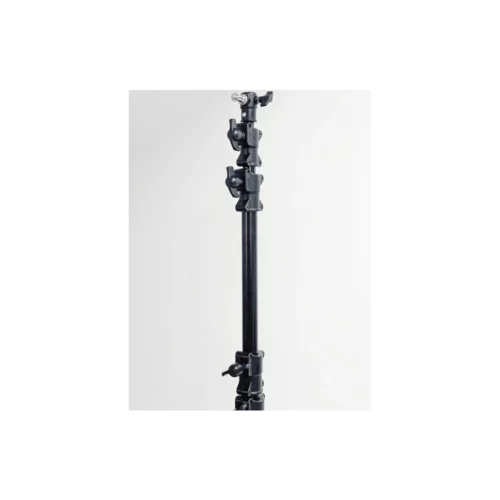

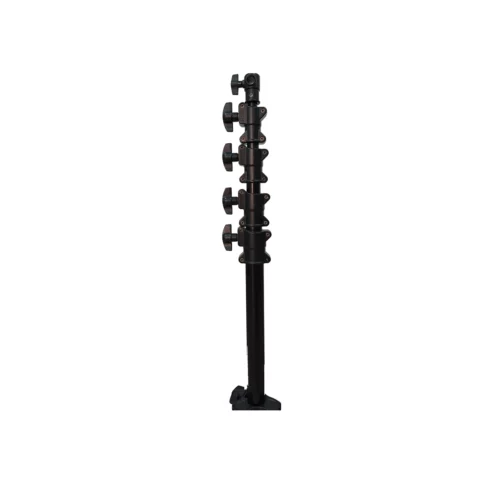

Chelegance TP16 Antenna Mast closeup
Chelegance TP16 Antenna Mast closeup

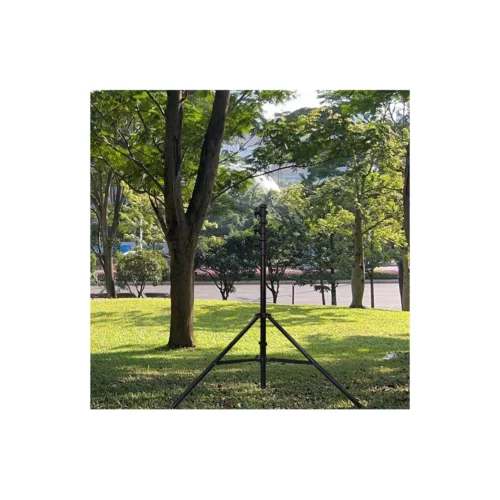

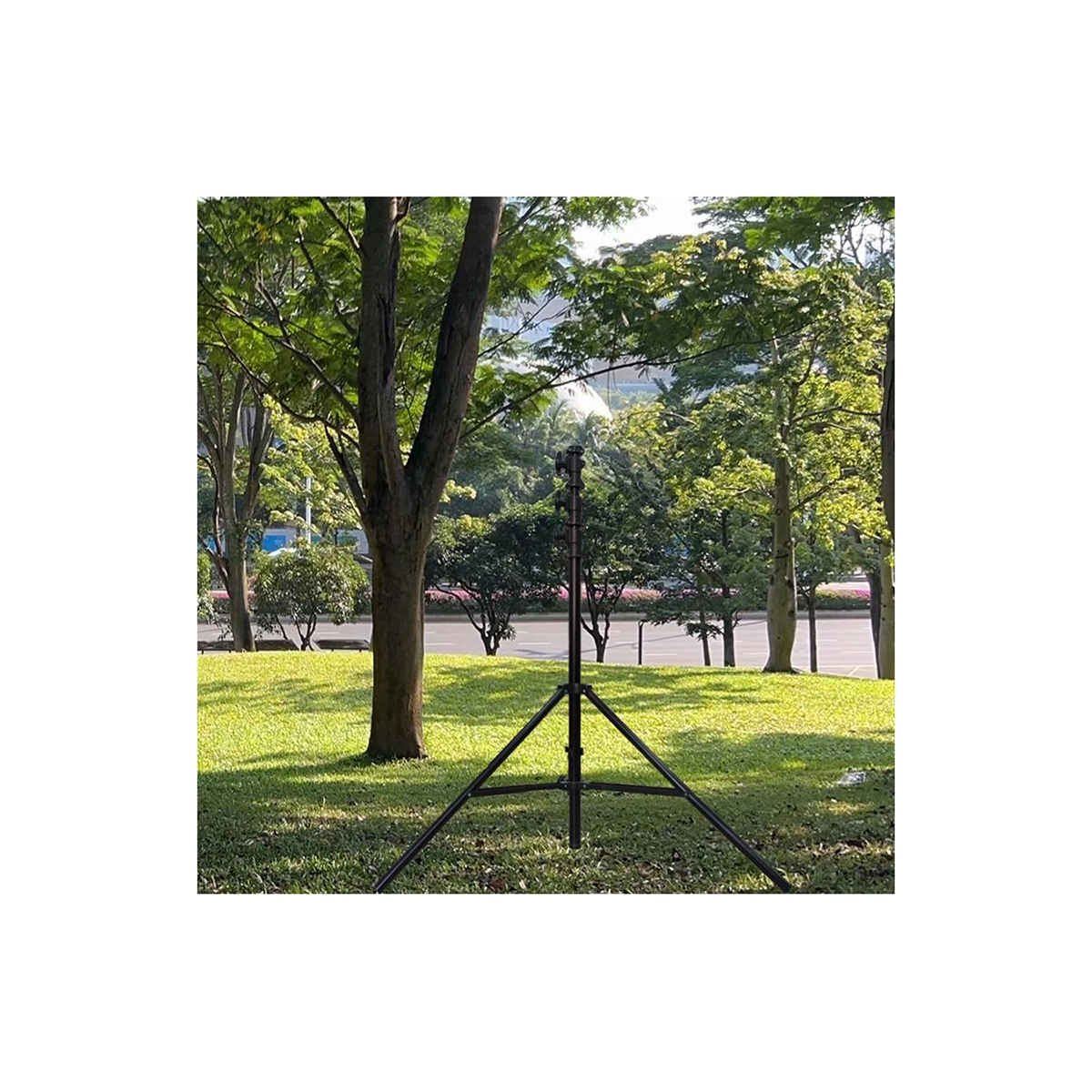

Chelegance TP16 Telescopic Antenna Mast - Image 6
Chelegance TP16 Antenna Mast
Chelegance TP16 Antenna Mast collapsed
Chelegance TP16 Antenna Mast closeup of collapsed
Chelegance TP16 Antenna Mast closeup
Chelegance TP16 Antenna Mast closeup

Chelegance TP16 Telescopic Antenna Mast

MPN: CH0030029-O2
MPN:

$140.00

In stock

SKU: CHE-TP16 Categories: Amateur Accessories, Mounts & Brackets, Radio Accessories
Browse Another Category
  • New Arrivals
  • GPS Units
  • Marine
  • Tracking
  • Radios
    • 2-Way Radios
    • Amateur Radios
    • Avionic Radios
    • CB Radios
    • Commercial Radios
    • Marine Radios
    • Scanners
    • Shortwave Radios
    • Radio Accessories
      • Amateur Accessories
      • Amateur Antennas
      • Amateur Books
      • CB Antennas
      • CB Accessories
    • Weather Radios
  • Metal Detecting
  • Outdoors
  • On Sale
  • Gift Certificates
  • Warranties
  • Discontinued
  • Description
  • Additional information
  • Video
  • Specifications

Chelegance TP16 Telescopic Antenna Mast Features

  • Suitable for MC-599 and JPC-7 antennas
  • 16′ (4.8 m) height, four-section segmentation, multi-occasion flexibility
  • Made of aluminum alloy, durable, adapt to different weather conditions, provide stable support

The TP16 ANTENNA MAST is perfect for mounting MC-599 and JPC-7 antennas, as well as other portable operation antennas for activities like POTA, and SOTA.

It can extend up to 4.8 meters/15.75 feet and hold maximum weight is 8.9 kg/19 lbs. When collapsed, the TP16 is just 142 cm/4.66 ft, making it highly portable. The legs spread at the maximum distance, the TP16 base covers 787 square inches for a more stable support. This makes it a great choice for field work, outdoor events, and other situations where you need a sturdy support for your antenna.

Compared to Chelegance’s last similar product, this TP16 is more solid, can be raised higher with less signal interference, but will be slightly heavier than the previous 3.85m tripod by about 1kg.

In a word, TP16 ANTENNA POLE is designed to be flexible enough to meet the various needs of amateur radio enthusiasts whether they are outdoors or observing equipment and more. Whether you need stable communication support or are looking for a superior observing experience, this mount offers a reliable solution.

Weight 9 lbs
Dimensions 46 × 5.5 × 4.5 in
Brand

Chelegance

Manufacturer Part Number CH0030029-O2

Video

Specifications

Chelegance TP16 Telescopic Antenna Mast Specs

Product size 14×11.5x117cm / 5.5x 4.5×46 inches package size

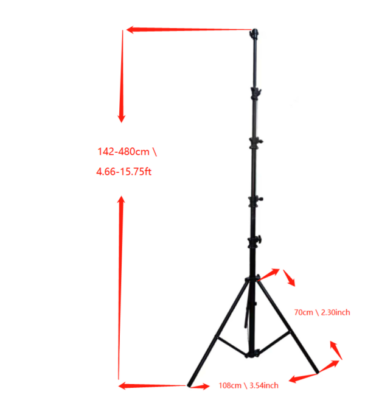

Height Range 142– 480cm/4.66-15.75ft
Leg Spread 787 square inches
Weight Capacity 8.9kg/19 lbs
Product weight 4.1kg/9lbs
Number of Sections 5 sections
Material Aluminum
Attachment Size 5/8″ Stud with 1/4″-20 Threaded Top
