Home / Marine / Marine Accessories

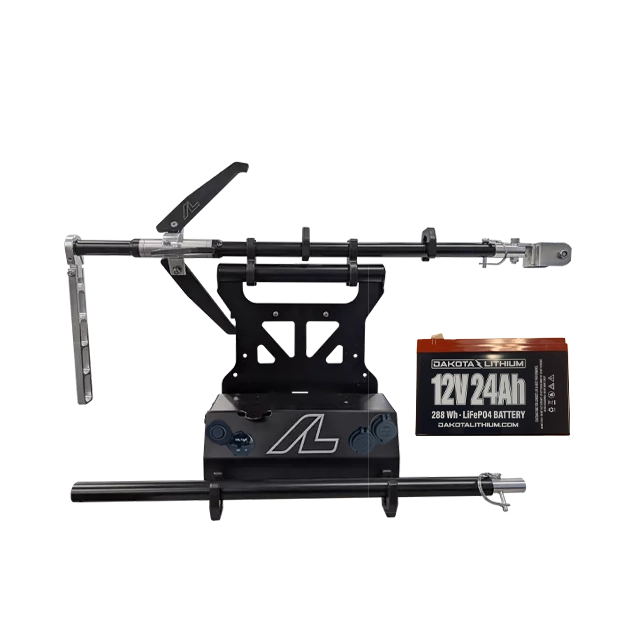

ArcLab 5200 with pole, LVS 34 mount and Dakota Lithium battery

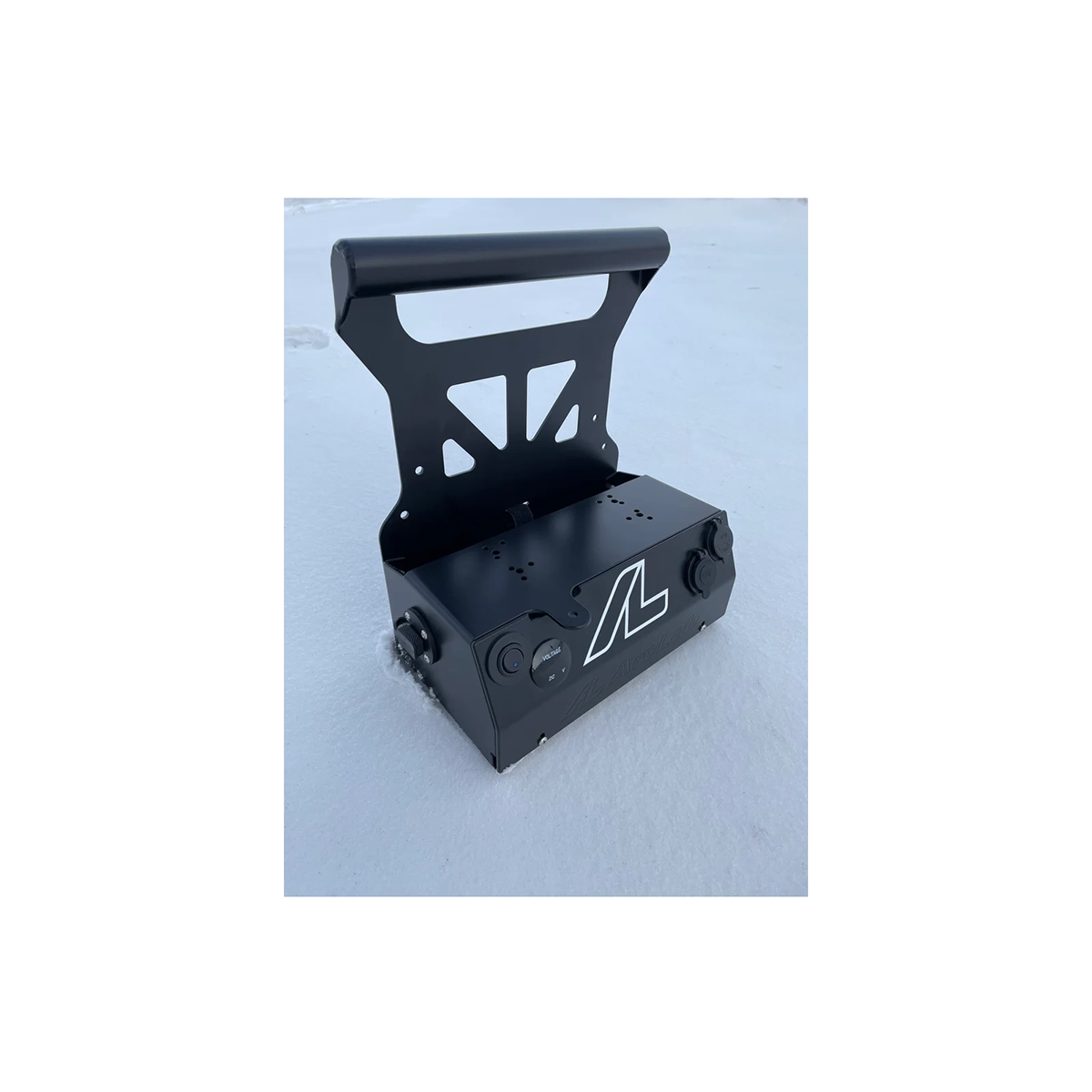

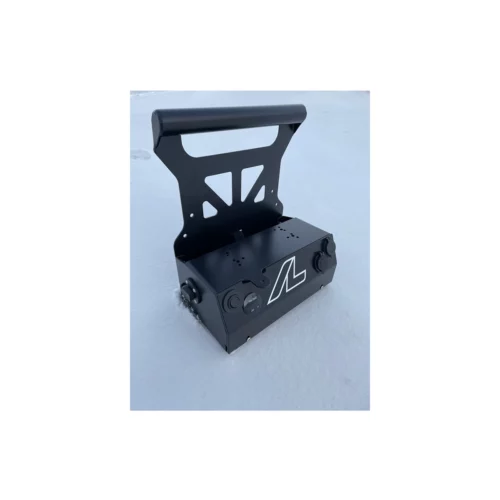

ArcLab 5200 Series 12V Deluxe Electronics Shuttle right side view

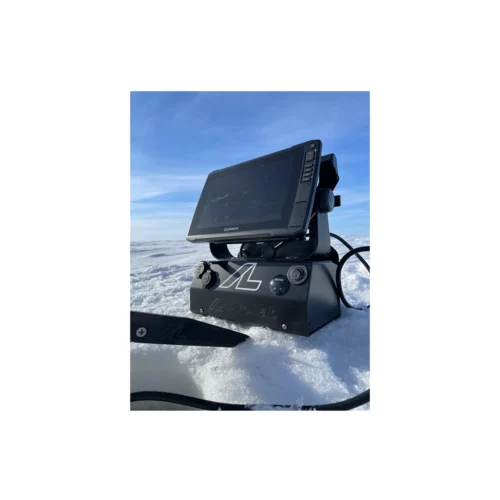

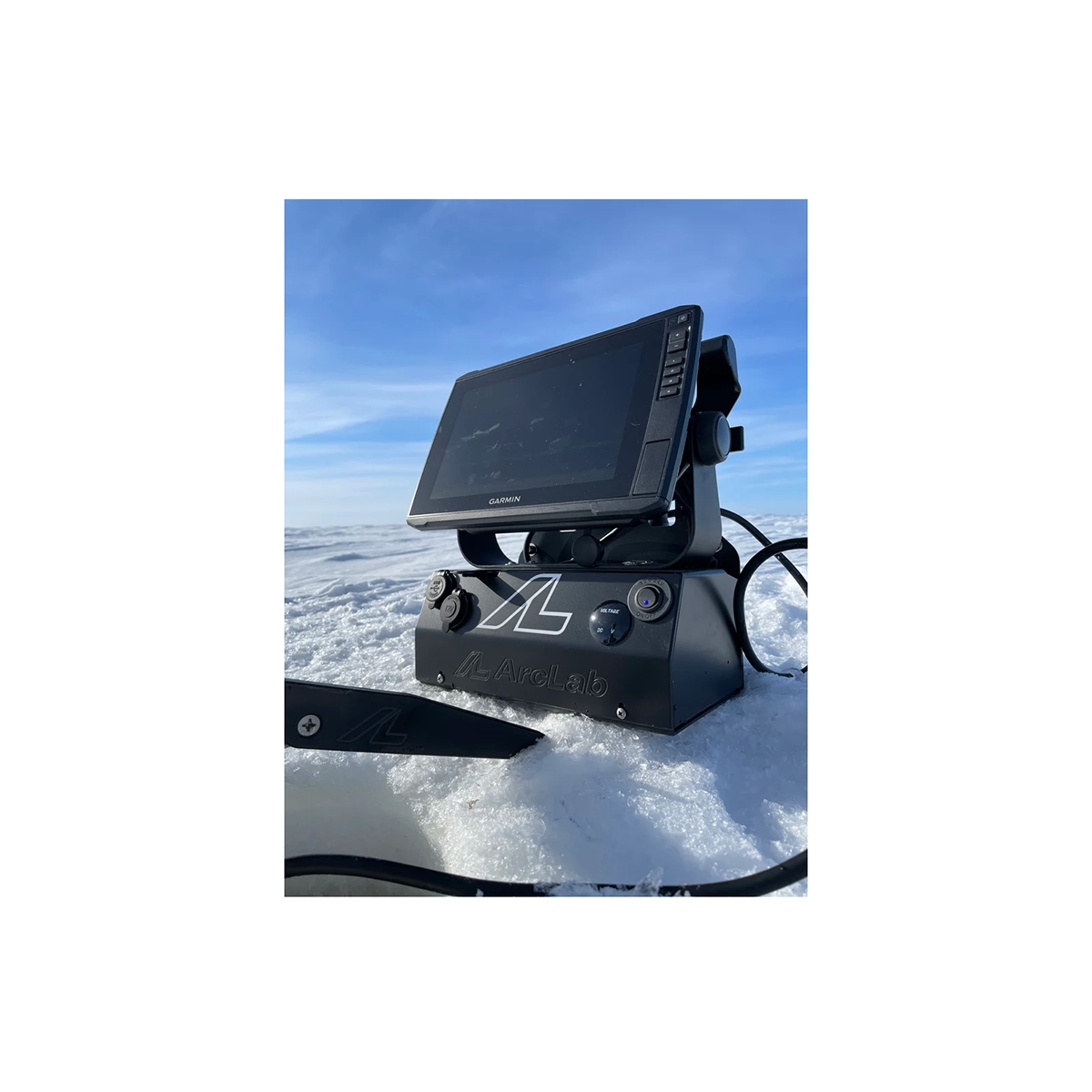

ArcLab 5200 Series 12V Deluxe Electronics Shuttle with Garmin chartplotter
ArcLab 5200 with pole, LVS 34 mount and Dakota Lithium battery
ArcLab 5200 Series 12V Deluxe Electronics Shuttle right side view
ArcLab 5200 Series 12V Deluxe Electronics Shuttle with Garmin chartplotter

ArcLab 12V Deluxe Shuttle LVS34 Pole Bundle with Battery and Garmin Cables

MPN: ALM100058-LVS34KIT-BATT
MPN:

$1,299.99

This Ultimate Bundle Includes:

  • ArcLab 5200 Series 12V Deluxe Electronics Shuttle
  • ArcLab LVS34 Garmin LiveScope Ice Bundle
  • ArcLab 5200 12V Deluxe Wire Harness
  • ArcLab 5200 Series Shuttle Cable Cleat
  • ArcLab Transducer Pole Caddy Clips
  • Dakota Lithium 12V 24Ah Battery
  • Dakota Lithium 12V 10A Battery Charger
  • Garmin Ice Kit Power Cable for LiveScope GLS 10 & Echomap Unit
  • Garmin Marine Network Adapter Cable – Small (Female) to Large
  • Trailer connector

Out of Stock (On Order)

SKU: ARCLAB-ALM100058-LVS34KIT-BATT Categories: Ice Fishing Accessories, Ice Fishing Bundles, Ice Fishing, Marine Accessories
Browse Another Category
  • New Arrivals
  • GPS Units
  • Marine
    • AIS
    • Autopilot
    • Chartplotters
    • Chartplotters & Sonar Combos
    • Charts
    • Entertainment
    • Downriggers
    • Handhelds
    • Fishfinders
    • Ice Fishing
    • Marine Accessories
      • Antennas
      • Networking
      • NMEA Cables
      • Transducer Extension Cables
      • Scotty Fishing Products
    • Marine Instruments & Sensors
    • Radars
    • Remote Sounders & Black Boxes
    • Transducers
    • Trolling Motor
  • Tracking
  • Radios
  • Metal Detecting
  • Outdoors
  • On Sale
  • Gift Certificates
  • Warranties
  • Discontinued
  • Description
  • Additional information
  • Package Includes
  • Product Guides & Documentation
  • Accessories

ArcLab Shuttle with Pro Pole for Livescope+, Battery and Garmin Cables

Your Ultimate Ice Fishing Kit

Suitable for any size Garmin, the 5200 series electronics shuttle is designed to be compact, light weight and extremely tough. No more wet bags! Its the ultimate vessel to house your electronics investment while in use or in travel. This kit also includes the most rugged and versatile transducer pole available for Garmin LiveScope Plus, the ArcLab LVS34 Garmin LiveScope Pro series transducer pole bundle.

ArcLab 5200 Series 12V Deluxe Electronics Shuttle Features:

  • Weighing only 4.81 lb when assembled and built from marine grade 1/8″ T5052 aluminum for unmatched durability in cold climates
  • Outfitted with the 12v accessory face plate the 5200 series shuttle serves as a power centre for other 12v appliances. Dual USB charge ports, a 12v socket , digital voltage meter and a master power switch give you more functionality to your shuttle.
  • Fits many options for battery size
  • Inside dimension with 12v face plate: L 5.25″ W 10.875″ x H 4.375″
  • Outer dimension L 11.25″ W 6.625″ H 13.375″
  • Fits all AMPED Lithium batteries (EXCEPT 30Ah TALL)
  • Fits Norsk 50 Ah battery and the AMPED 48Ah battery
  • Includes cable cleat and wiring harness.

ArcLab LVS34 Garmin LiveScope Pro Series Transducer Pole Bundle Features:

This Pro series transducer pole is 50″ total length and breaks down to 28″ for ice fishing early season and easy transport. Black powder coated ,1″ x .120″ wall, 6061 aluminum tube construction provides high strength, minimal deflection and corrosion resistance. The integrated, greased and serviceable 1.25″ swivel collar on the pole allows you to easily function the transducer pole while holding it in place. The Pro Series adjustable aluminum handle offers 12″ of reach and can articulate up or down to accommodate different gunwale heights and depths.

Dakota 12V 24AH Battery with Dual USB Ports and Voltmeter

Dakota Lithium 12 Volt 24 Amp battery has both USB 3.0 waterproof plugs, standard F2 Terminals, and a built in volt meter. Built from Dakota Lithium’s legendary LiFePO4 cells, this battery has 2X the power, 1/3 the weight and 5X the lifespan of traditional batteries.

Weight 18 lbs
Dimensions 30 × 12 × 18 in
Brand

ArcLab

Package Includes

Shuttle assembly kit includes:

  • 12v SAE charge port
  • 8/32 304 stainless machine screws and nuts
  • Battery tie down strap
  • 3M VHB double sided adhesive pad
  • ArcLab decal
  • PLUS
    • Cable cleat
    • Wiring harness

LiveScope LVS34 Ice Bundle includes:

  • 2 Piece Pro Transducer Pole
  • Sub Zero Tripod
  • Cable Clips
  • Quick Release transducer mount for Garmin LVS34 (GTM-3400)
  • Garmin LVS34 Selector Disc

This ultimate kit is rounded out with:

  • Dakota Lithium 12V 24Ah Battery
  • Dakota Lithium 12V 10A Battery Charger
  • Garmin Ice Kit Power Cable for LiveScope GLS 10 & Echomap Unit
  • Garmin Marine Network Adapter Cable – Small (Female) to Large
  • Trailer connector & Hardware

Product Guides & Documentation

ArcLab 5200 Series Deluxe Shuttle Wiring Diagram (pdf)

Accessories

Optional Accessories …

ArcLab 5200 Series Shuttle 12v Deluxe Wiring Harness

ArcLab Wiring Harness for 5200 Series 12V Deluxe Shuttle

$29.00
In stock

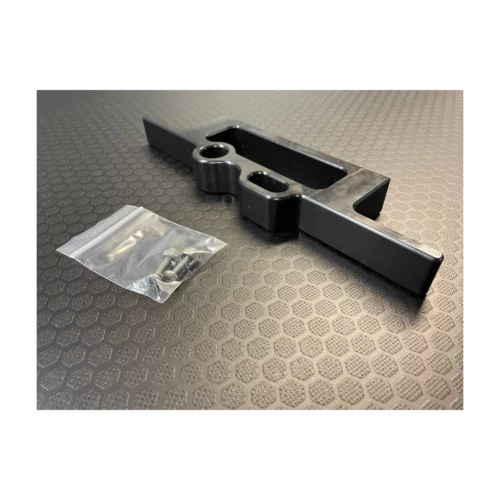

ArcLab Cable Cleat

ArcLab Cable Cleat

$28.00
In stock

Optional Accessories …

ArcLab 5200 Series Shuttle 12v Deluxe Wiring Harness

ArcLab Wiring Harness for 5200 Series 12V Deluxe Shuttle

$29.00
In stock
ArcLab Cable Cleat

ArcLab Cable Cleat

$28.00
In stock
