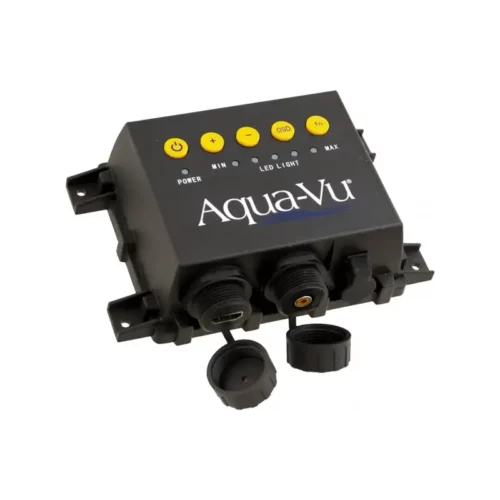

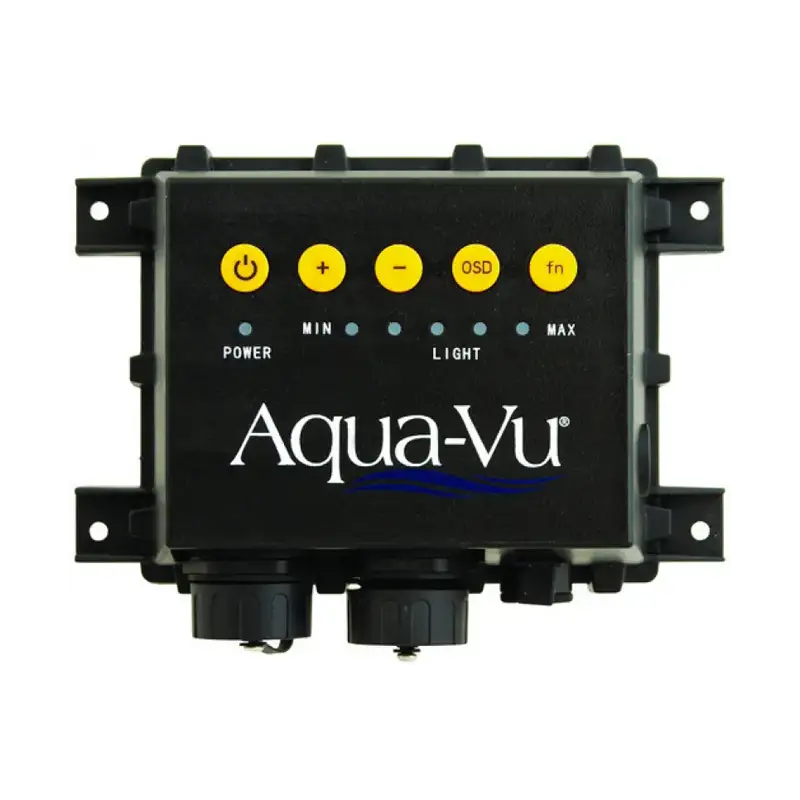

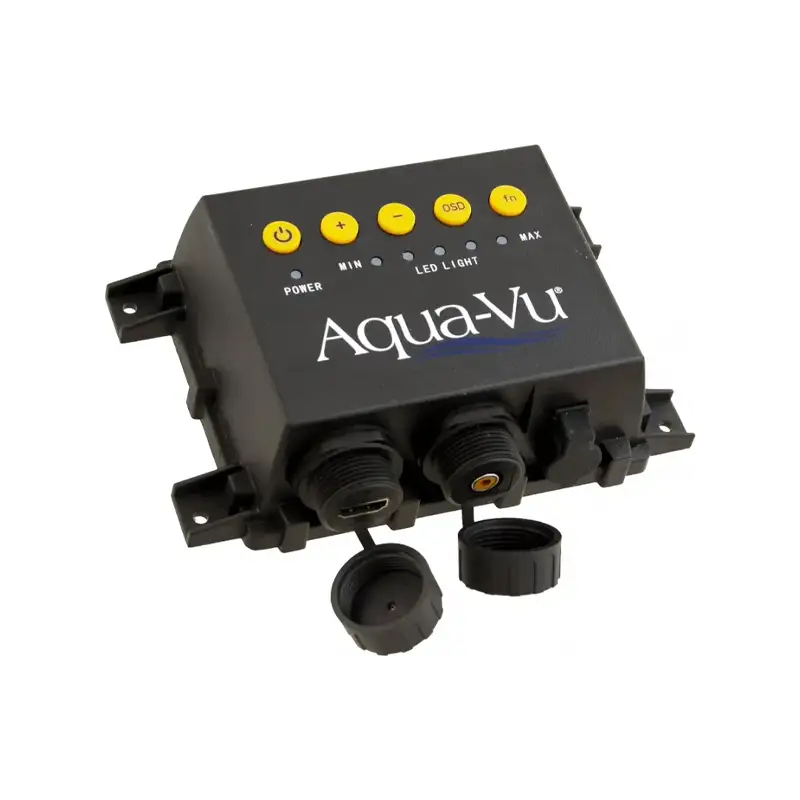

Aqua-Vu Multi-Vu Pro Gen2 Underwater Viewing System connections and buttons

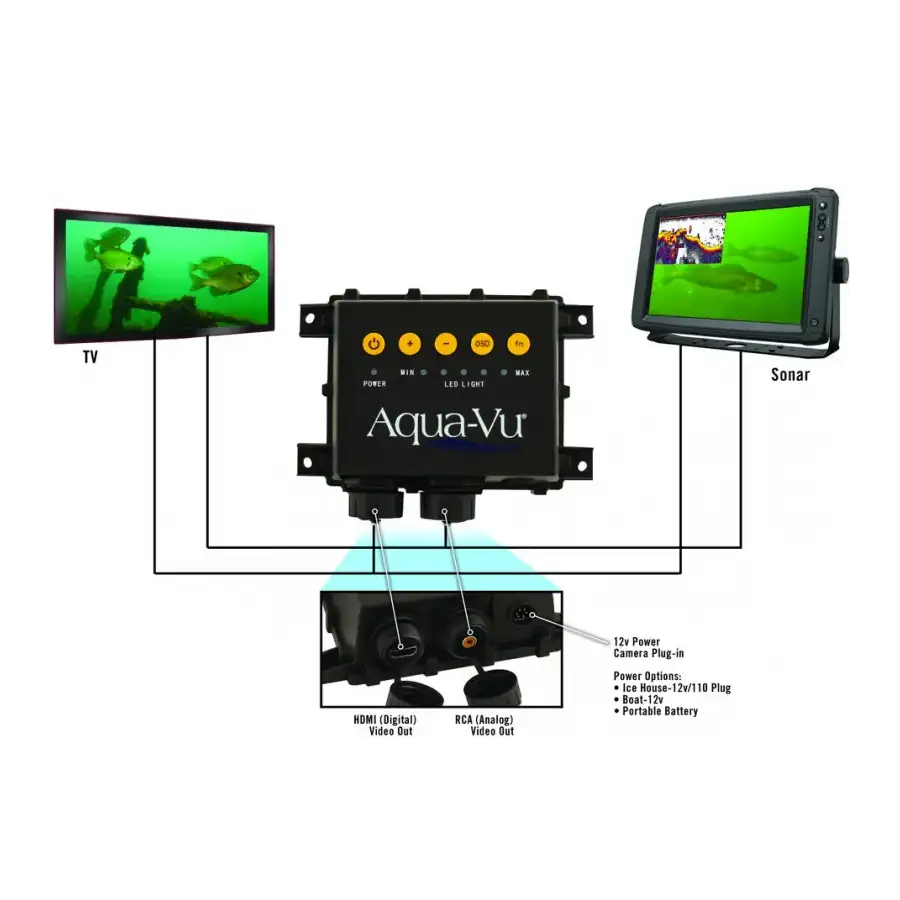

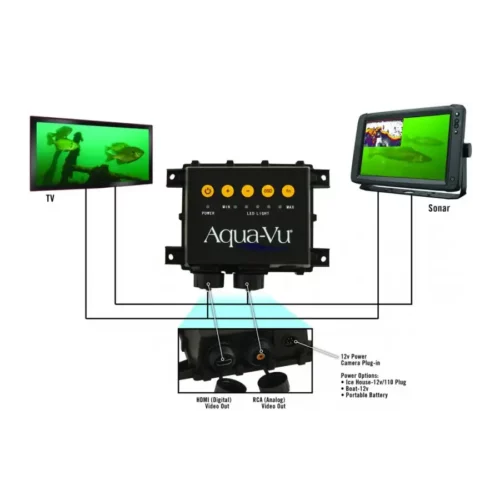

Aqua-Vu Multi-Vu Pro Gen2 Underwater Viewing System how to hook up diagram

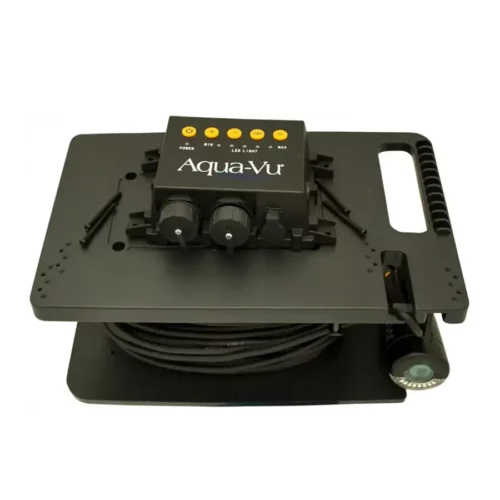

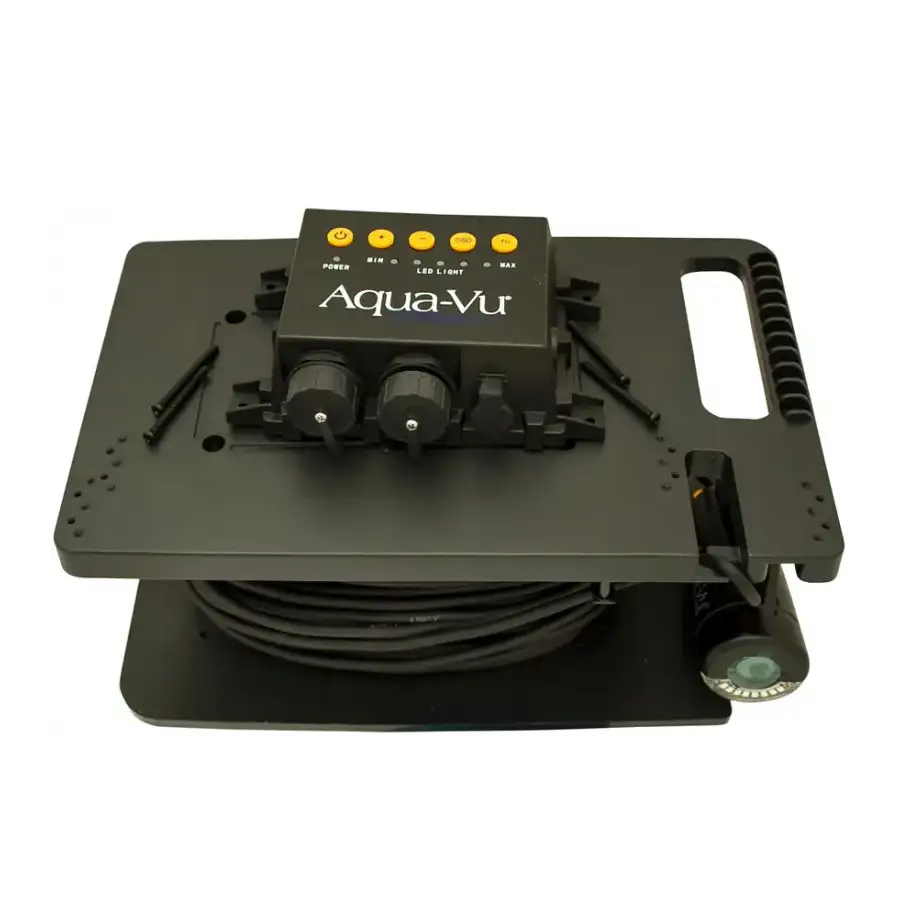

Aqua-Vu Multi-Vu Pro Gen2 Underwater Viewing System cord keeper
Aqua-Vu Multi-Vu Pro Gen2 Underwater Viewing System

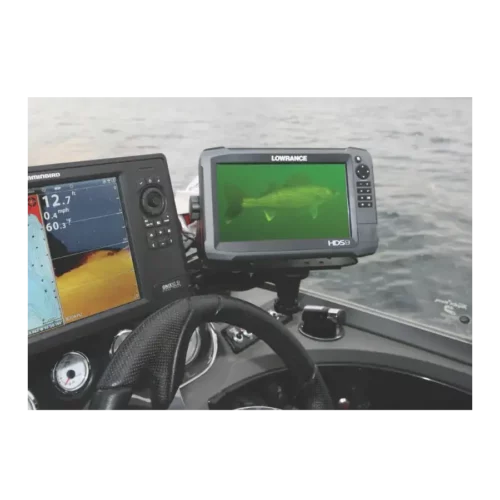

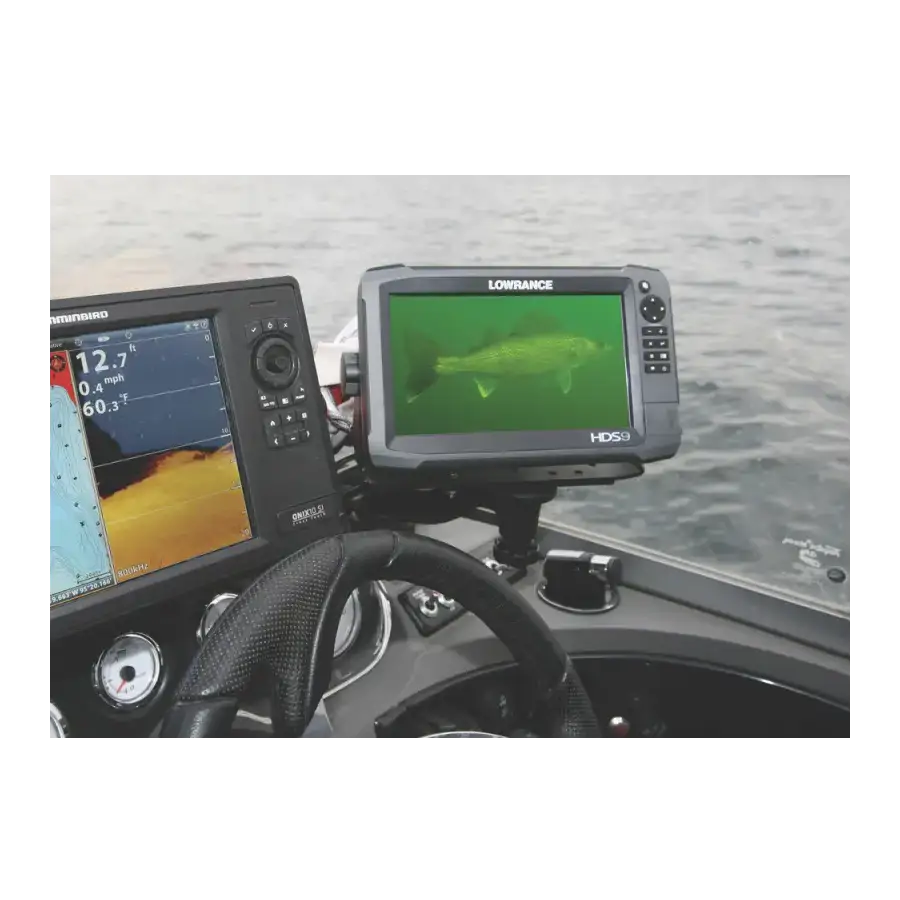

Aqua-Vu Multi-Vu Pro Gen2 Underwater Viewing System being viewed on Lowrance HDS9 on boat

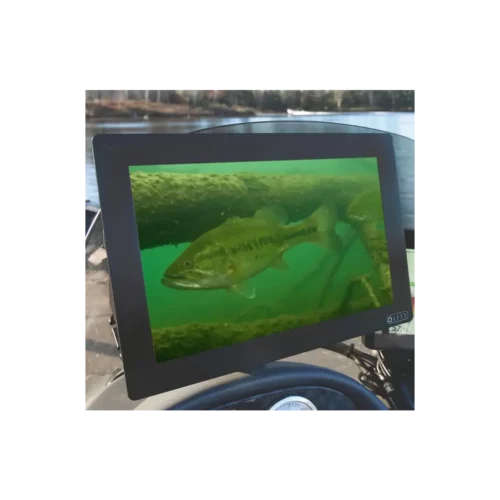

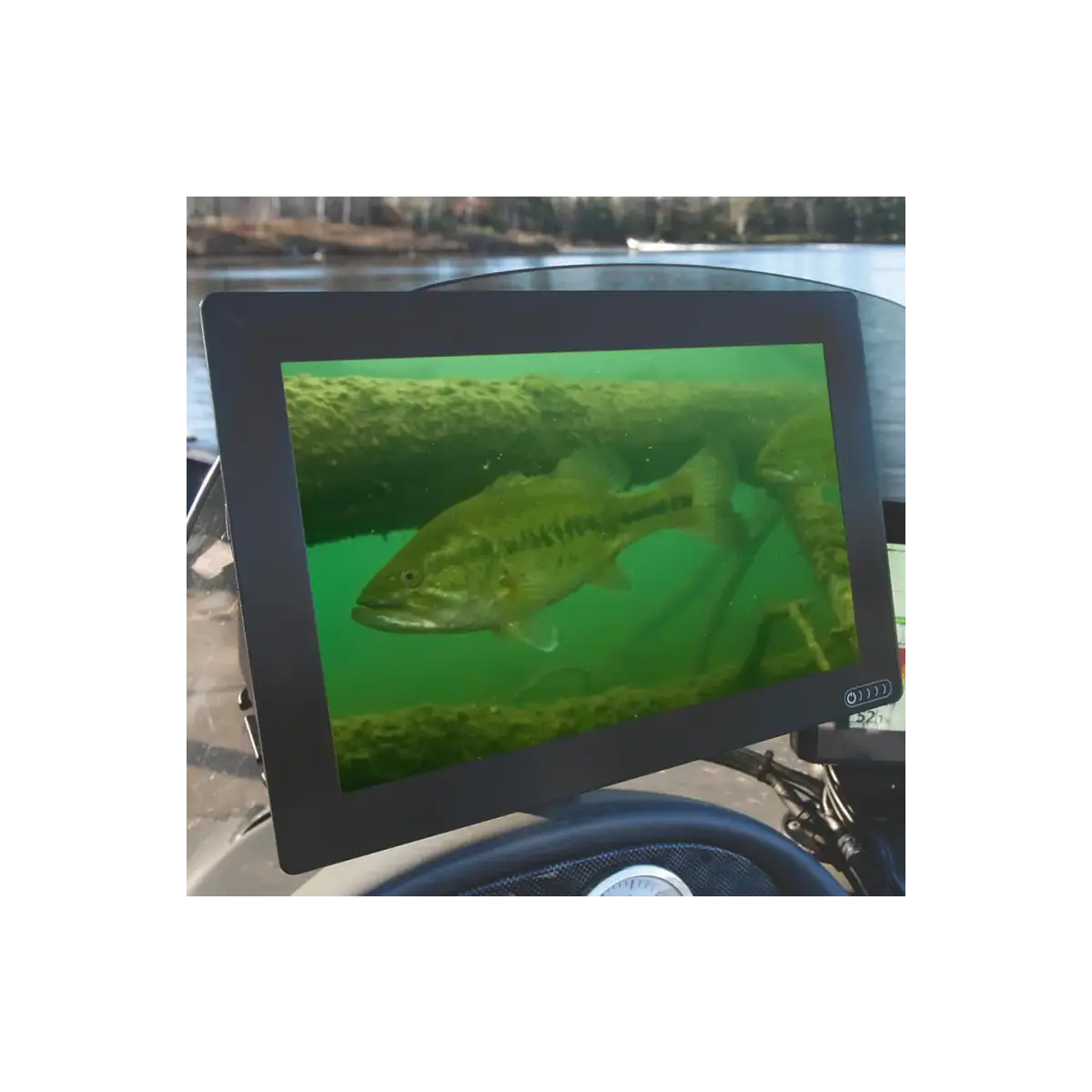

Aqua-Vu Multi-Vu Pro Gen2 Underwater Viewing System with fish on screen
Aqua-Vu Multi-Vu Pro Gen2 Underwater Viewing System top view
Aqua-Vu Multi-Vu Pro Gen2 Underwater Viewing System connections and buttons
Aqua-Vu Multi-Vu Pro Gen2 Underwater Viewing System how to hook up diagram
Aqua-Vu Multi-Vu Pro Gen2 Underwater Viewing System cord keeper
Aqua-Vu Multi-Vu Pro Gen2 Underwater Viewing System
Aqua-Vu Multi-Vu Pro Gen2 Underwater Viewing System being viewed on Lowrance HDS9 on boat
Aqua-Vu Multi-Vu Pro Gen2 Underwater Viewing System with fish on screen

Aqua-Vu Multi-Vu Pro Gen2 Underwater Viewing System

MPN: 200-5170

$1,040.00

Out of Stock (On Order)

Get notified when this product is back in stock

SKU: AQU-AVMULTIVU Categories: , , ,

Add real time “live” viewing to any TV or HDMI-in enabled compatible sonar using an Aqua-VU Multi-Vu Pro Gen2 Underwater viewing system. The Aqua-Vu Multi-Vu Pro underwater camera system allows you to display an Aqua-Vu underwater camera on any screen, sonar, or TV, that accepts HDMI/RCA video input. Using an Aqua-Vu Mulit-Vu Pro will give you a “live” look underwater in real time. See what is happening, understand your electronics, and have more fun on the water!

Weight 10.88 lbs
Dimensions 19 × 12 × 12 in
Brand

Aqua-Vu
Manufacturer Part Number 200-5170

Specifications

MULTI-VU PRO GEN2 Specs

Included Essentials / Specifications:

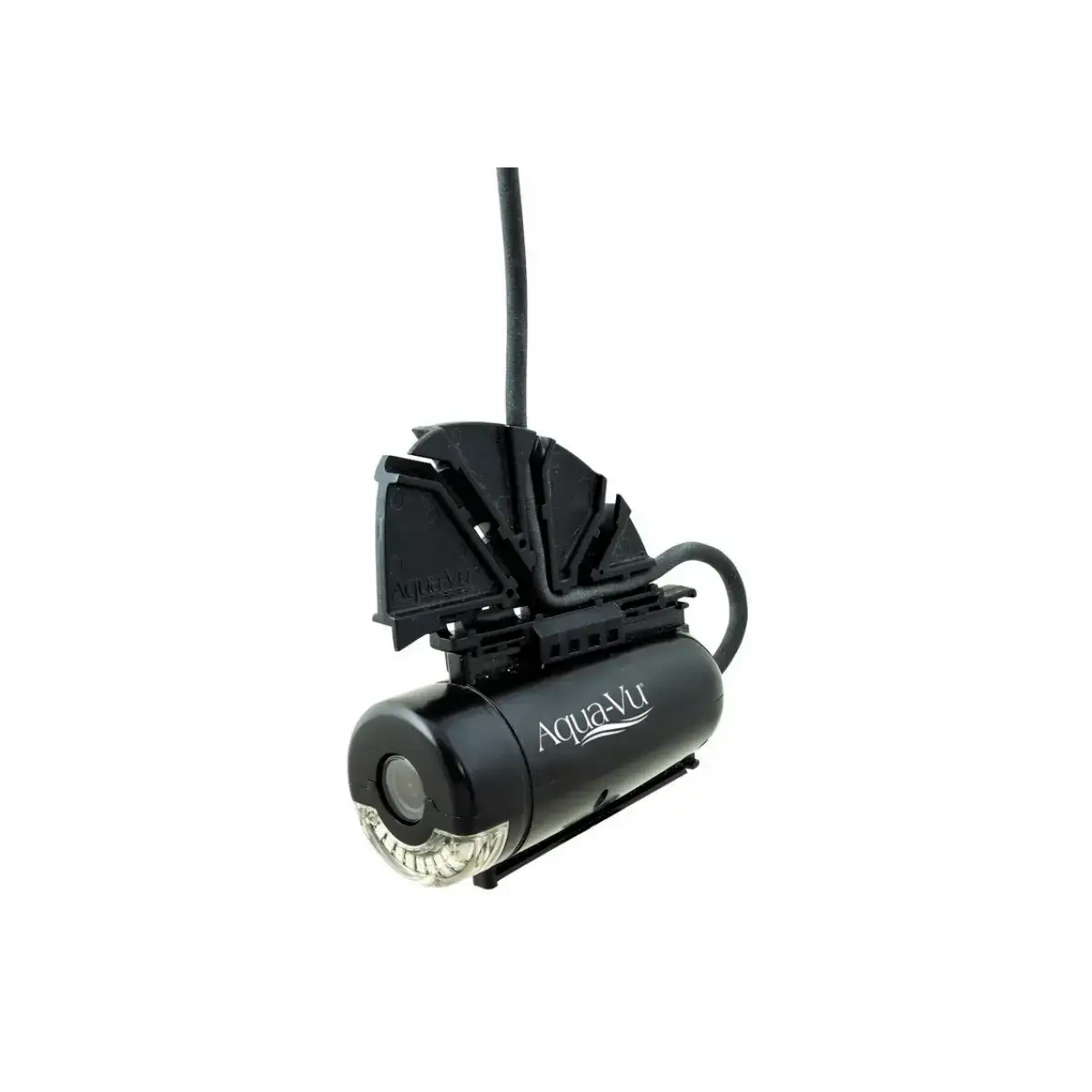

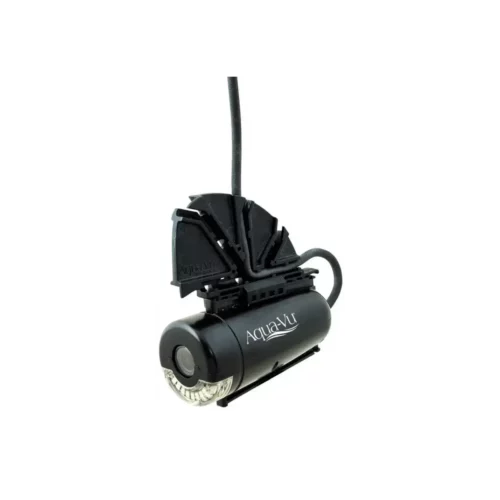

  • Modular XD Camera Housing with Quick Attachment accessory system
  • 1080p Color high-definition XD Camera
  • Opti-RX Lab-Quality Lens for ultimate clarity
  • 75-feet of cable (depth markings on cable)
  • Super Low Light Vu™ Technology
  • High Intensity, Adjustable IR Lighting
  • HDMI & RCA Video Output (HDMI Cable Included)
  • IP67 Waterproof
  • 12v/110V Power



Frequently Asked Questions

IMPORTANT FAQ’s:

Is a TV or Sonar LCD included?

No, these items are pictured as reference only. A compatible TV or Sonar System is required for viewing and is sold separately.

How do I power the Multi-Vu Pro?

Included is a 110v power cable designed to connect the MV Pro directly to any 110v power system. Also included is a 12v Auxiliary adapter for additional power options.

Which cables are included?

Cables included in the box: 110v power cable, 12v auxiliary power adapter, and a waterproof HDMI Cable.

Sonar Compatibilty

SONAR COMPATIBILITY LIST

HUMMINBIRD

  • Humminbird Apex (via HDMI)

LOWRANCE

  • HDS Live (via HDMI)
  • HDS Gen2 Touch Size 9,12
  • HDS Gen3 Touch Size 7,9,12
  • HDS Carbon

*Lowrance HDS Gen2/Gen3 & Carbon require a Video Adapter Cable 000-1101-001

SIMRAD

  • Simrad NSS evo2 7,9,12,16
  • Simrad NSO evo2 all series

GARMIN

  • 942 – RCA with BNC adaptor
  • 7400/7600 RCA with BNC adaptor
  • 8400/ 8600 units HDMI and RCA with BNC adaptor
  • GPSMAP 8700 Black Box – HDMI – Module to hook up to other touch screens

RAYMARINE

  • a Series – a9 & a12 only
  • c Series – c9 & c12
  • eS Series – eS7, eS9 & eS12
  • e Series – e7, e9, e12 & e16
  • gS Series – gS95, gS126, gS165 & gS195

Product Guides & Documentation

Aqua-Vu Multi-Vu Pro Gen2 Quick Start Manual (pdf)
