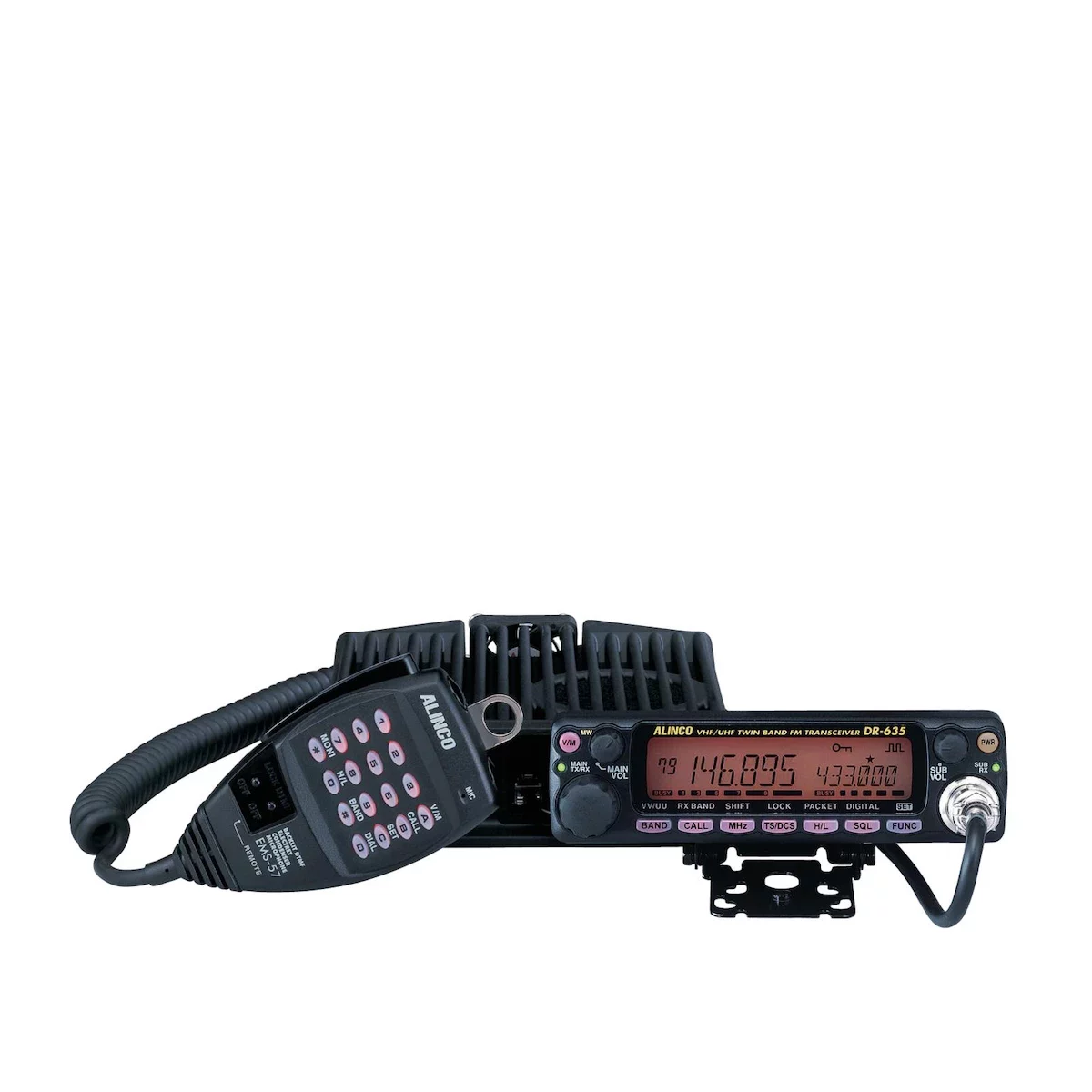

Alinco DR-635T VHF/UHF FM Mobile Transceiver
MPN: DR-635T
This item has been discontinued.
Get notified when this product is back in stock
- Description
- Additional information
- Specifications
- Package Includes
- Product Guides & Documentation
- Accessories
Mobile/Base VHF+UHF Transceiver and Expanded Range Receiver
Features of DR-635T:
- VHF/UHF full duplex operation includes V/U and U/V modes.
- Cross-band repeater function (where permitted: standard on DR-635T)
- 200 Memory channels
- H/M/L power output settings- VHF: 50/25/5W UHF: 35/20/5W
- Large 6 character alphanumeric display
- Selectable display colour illumination (Blue, Violet or amber)
- Internal duplexer – single antenna connector
- Removable control head can be remotely mounted or allow transceiver to be inverted for optimal speaker placement
- Expanded receive range includes FM broadcast band (WFM)
- Power supply voltage display
- Theft alarm feature
- Optional 1200 and 9600 bps packet operation with optional EJ-50U
- Digital voice communications with optional EJ-47U
- Optional illuminated DTMF EMS-57 microphone (included with DR-635T) allows direct VFO frequency entry and remote control of transceiver
- CTCSS & DCS encode and decode plus four different tone bursts
- CTCSS Tone and DCS scan
- Programmable VFO and Memory scan modes
- “Time Out” timer
- Cable Clone feature
- AM Aircraft band reception (DR-635T only)
- Temperature Compensated Crystal Oscillator
- Ignition key activated power on/off feature
| Brand | Alinco |
|---|---|
Specifications
|
DR-635T General Specs
|
|||||||||
|
Frequency range
|
|
||||||||
|
Modulation
|
16K0F3E(FM)/8K50F3E(Narrow FM)/F1E(digital voice)/F1D(9600bps)/F2D(1200bps)/A3E(RX only/AM)
|
||||||||
|
Channel Steps
|
5, 8.33, 10, 12.5, 15, 20, 25, 30, 50, 100 KHz
|
||||||||
|
Memory channel
|
VHF 80ch / UHF 80ch / Free-programmable 40ch / 1ch VHF CALL / 1ch UHF CALL
|
||||||||
|
Antenna impedance
|
50 ohm unbalanced
|
||||||||
|
Frequency stability
|
+/- 2.5 ppm
|
||||||||
|
Power Supply Requirement
|
13.8V DC +/- 15% Negative ground
|
||||||||
|
Current Drain
|
Approx. 11A TX high / 700mA RX max. / 500mA RX squelched
|
||||||||
|
Usable temperature range
|
-10c to +60c (14F to 140F)
|
||||||||
|
Dimensions
|
140mm(W) X 40mm(H) X 185mm(D)
5.5 x 1.6 x 7.3 inches |
||||||||
|
Weight
|
Approx. 1kg or 35.3oz
|
||||||||
|
DR-635T Transmitter Specs
|
|||||||||
|
Output
|
High VHF 50W / UHF 35W, Mid 20W, Low 5W(approx.)
|
||||||||
|
Modulation System
|
Variable Reactance Frequency Modulation
|
||||||||
|
Max.Frequency Deviation
|
+/- 5KHz (FM) +/- 2.5KHz (NFM)
|
||||||||
|
Sprious emissions
|
Less than -60dB
|
||||||||
|
DR-635T Receiver Specs
|
|||||||||
|
Receive system
|
Double Conversion Superheterodyne
|
||||||||
|
Intermediate Frequencies
|
1st 21.7MHz/450KHZ
2nd 45.1MHz/455KHz |
||||||||
|
Sensitivity(-12dB SINAD)
|
Main band -14dBu(0.20uV) or better
Sub band -12dBu(0.25uV) or better |
||||||||
|
Squelch
|
-18 dBu (0.1uV) or less
|
||||||||
|
Selectivity
|
FM: -6dB: 12KHz or more, -60dB: 28KHz or less
|
||||||||
|
Audio Output
|
2W or more (8ohm 10% THD)
|
||||||||
|
Specifications subject to change without notice or obligation. Performance specification apply only to the amateur bands. Permit required for MARS use. APRS is a registered trademark of Bob Bruninga, WB4APR. Check regulations prior to operating full duplex in US.
|
|||||||||
Package Includes
In the Box:
- DR-635T
- Microphone
- DC cable
- Bracket hardware pack
- ACC port cable
- Sticker
- Instruction Manual
